BMW light alloy wheel, spider spoke 199 for BMW 3 Series E90 LCI 320i (2011)

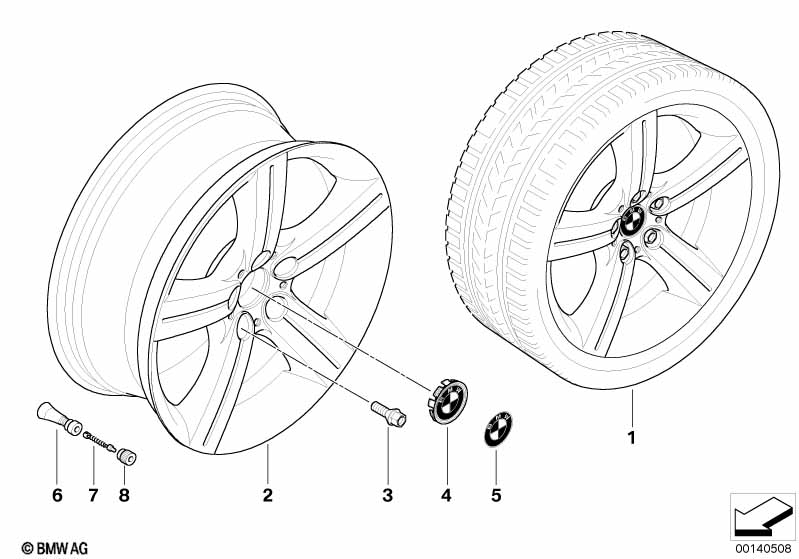

This BMW light alloy wheel, spider spoke 199 technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with 19" light alloy star spoke 199 |
SZLFA=Yes |
||||||||
| 02 | Light alloy rim | 8JX19 ET:37 | 2 | 36116775613 | $569.93 | ENDED | Shop at ECS Tuning | |||
| 02 | Light alloy rim | 9JX19 ET:39 | 2 | 36116775614 | $599.17 | ENDED | Shop at ECS Tuning | |||
| 02 | Light alloy rim, black | 8JX19 ET:37 | 2 | 36116786889 | $599.17 | ENDED | Shop at ECS Tuning | |||
| 02 | Light alloy rim, black | 9JX19 ET:39 | 2 | 36116786890 | $628.39 | ENDED | Shop at ECS Tuning | |||
| 03 | Wheel bolt black | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Hub cap with chrome edge | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | BMW insignia stamped/painted | 4 | 36136767547 | $5.02 | ENDED | Shop at ECS Tuning | ||||
| 06 | Rubber valve | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
