BMW light alloy wheel, radial spoke 216 for BMW 3 Series E90 LCI 320i (2011)

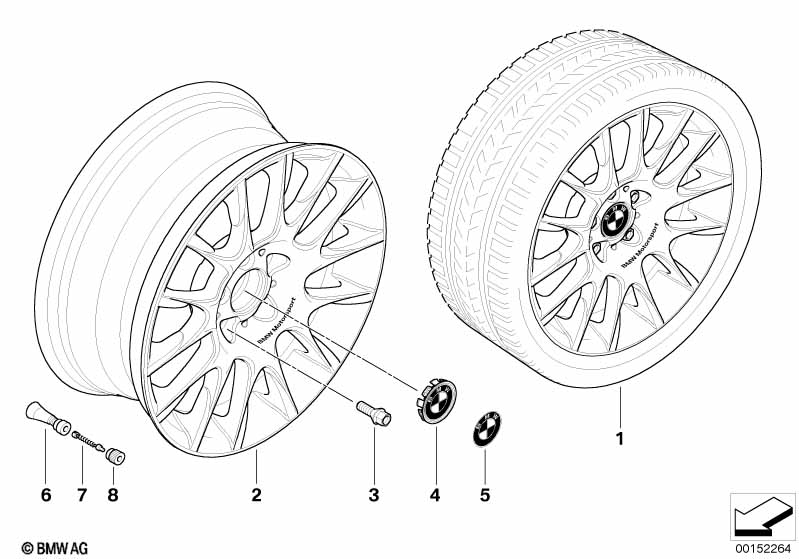

This BMW light alloy wheel, radial spoke 216 technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with 18" light alloy radial spoke 216 |
SZLPA=Yes |
||||||||
| 02 | Light alloy rim | 8JX18 ET:34 | 2 | 36116770464 | $437.58 | ENDED | Shop at ECS Tuning | |||
| 02 | Light alloy rim | 8 1/2JX18 ET:37 | 2 | 36116770465 | $457.58 | ENDED | Shop at ECS Tuning | |||
| 03 | Wheel bolt black | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Hub cap with chrome edge | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | BMW insignia stamped/painted | 4 | 36136767547 | $5.02 | ENDED | Shop at ECS Tuning | ||||
| 06 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 320i BMW light alloy wheel, radial spoke 216?
- This technical diagram illustrates the BMW light alloy wheel, radial spoke 216 within the Wheels group for the 3 Series E90 LCI 320i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Light alloy rim (Part #36116770464).
- Which models use the hardware listed in this BMW light alloy wheel, radial spoke 216?
- The hardware and components featured in the BMW light alloy wheel, radial spoke 216 are specific to the 3 Series E90 LCI 320i produced during 2011. These technical specifications ensure that parts like the Light alloy rim (36116770464) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW light alloy wheel, radial spoke 216 assembly?
- Each item in the BMW light alloy wheel, radial spoke 216 corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 320i, you can identify the Light alloy rim by locating its position on the schematic, which then links to the official BMW part number 36116770464 for the Wheels section.
