BMW LA wheel, star spoke 327 - 17'' for BMW 5 Series F10 LCI 530d (2013)

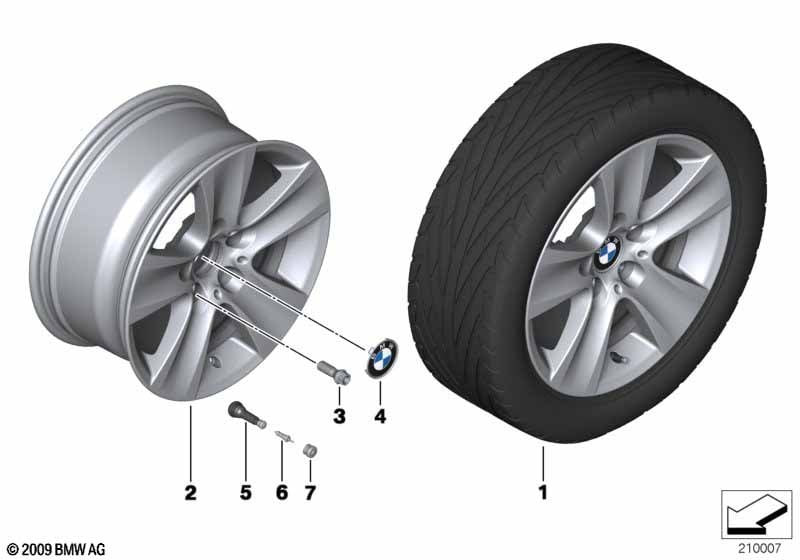

This BMW LA wheel, star spoke 327 - 17'' technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Only for vehicles with approval as per EG-BE. The selected wheel/tyre combination is possibly entry-relevant. Please check in the vehicle CoC whether the wheel/tyre combination is entered. If this is not the case, a subsequent national approval may be necessary on a country-specific basis!! For vehicles with BMW LA wheel, star spoke 327 |
S2DBA=Yes |
||||||||
| 02 | Light alloy rim | 8JX17 ET:30 | 4 | 36116790172 | Shop at ECS Tuning | |||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Hub cap with chrome edge | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| For vehicles with Tyre pressure display |
S2VBA=Yes |
|||||||||
| 05 | Screw-in valve, RDC | GRÜN | 4 | 09/2010 | 36146792830 | Shop at ECS Tuning | ||||
| For vehicles with Tyre pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 06 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| For vehicles with Tyre pressure display |
S2VBA=Yes |
|||||||||
| 07 | Valve caps RDC | 4 | 09/2010 | 36111095436 | $0.35 | Shop at ECS Tuning | ||||
| For vehicles with Tyre pressure display |
S2VBA=No |
|||||||||
| 07 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
