BMW LA wheel, V-spoke 390 - 16'' for BMW 3 Series F30 LCI 320i (2018)

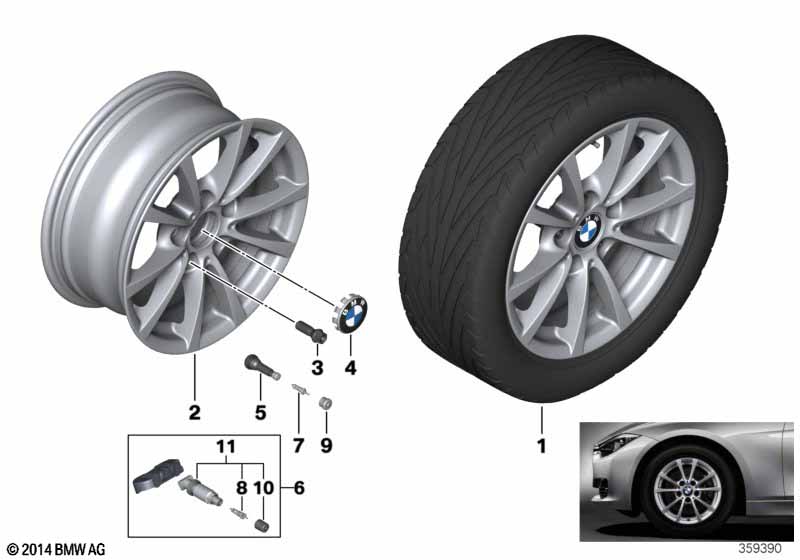

This BMW LA wheel, V-spoke 390 - 16'' technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | IMPORTANT: In accordance with the EU Battery Regulation, a part designation is compulsory for RDC sensors or for components with permanently installed battery! When the customer purchases this product, he must receive a printout of the appended document! Note: Only for vehicles with approval as per EG-BE. The selected wheel/tyre combination is possibly entry-relevant. Please check in the vehicle CoC whether the wheel/tyre combination is entered. If this is not the case, a subsequent national approval may be necessary on a country-specific basis!! For vehicles with BMW LA wheel, V-spoke 390 or Winter instead of summer tyres ex-fact. or Winter wheels |
S2FHA=Yes S931A=Yes S9WRA=Yes |
||||||||
| For vehicles with M Sport brake and Sports brake |
S2NHA=No SZP1A=No |
|||||||||
| 02 | Light alloy disc wheel Reflexsilber | 7JX16 ET:31 | 4 | 03/2014 | 36116796236 | +core | Shop at ECS Tuning | |||
| 03 | Wheel bolt black | M14X1,25 | 20 | 03/2014 | 36136890324 | Shop at ECS Tuning | ||||
| 04 | Hub cap with chrome edge | BMW | 4 | 03/2014 | 36136783536 | $9.95 | Shop at ECS Tuning | |||
| For vehicles with Tyre pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=42,5MM | 4 | 03/2014 | 36121116326 | $3.30 | Shop at ECS Tuning | |||
| For vehicles with Tyre pressure display |
S2VBA=Yes |
|||||||||
| 06 | Wheel electr. module RDCi w/ screw valve | 4 | 03/2014 | 36106881890 | Shop at ECS Tuning | |||||
| For vehicles with Tyre pressure display |
S2VBA=No |
|||||||||
| 07 | Valve | 4 | 03/2014 | 36141095389 | $1.38 | Shop at ECS Tuning | ||||
| For vehicles with Tyre pressure display |
S2VBA=Yes |
|||||||||
| 08 | Valve insert RDCi | 4 | 03/2014 | 36146867031 | Shop at ECS Tuning | |||||
| For vehicles with Tyre pressure display |
S2VBA=No |
|||||||||
| 09 | Valve caps | 4 | 03/2014 | 36121120779 | $0.60 | Shop at ECS Tuning | ||||
| For vehicles with Tyre pressure display |
S2VBA=Yes |
|||||||||
| 10 | Valve cap RDCi | 4 | 03/2014 | 36146867030 | Shop at ECS Tuning | |||||
| 11 | Repair kit, screw-type valve RDCi | 4 | 03/2014 | 36106876673 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
