BMW LA wheel, M star spoke 400 - 18'' for BMW 3 Series F30 LCI 320i (2018)

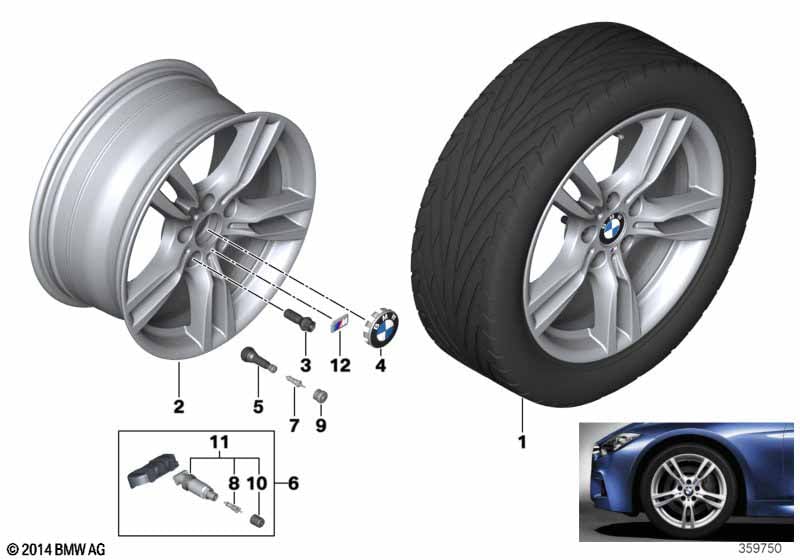

This BMW LA wheel, M star spoke 400 - 18'' technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | IMPORTANT: In accordance with the EU Battery Regulation, a part designation is compulsory for RDC sensors or for components with permanently installed battery! When the customer purchases this product, he must receive a printout of the appended document! Note: Only for vehicles with approval as per EG-BE. The selected wheel/tyre combination is possibly entry-relevant. Please check in the vehicle CoC whether the wheel/tyre combination is entered. If this is not the case, a subsequent national approval may be necessary on a country-specific basis!! For vehicles with 18" LA wheel star spoke 400 M ferric gr. or BMW light-alloy wheel V-spoke 400M JB or BMW LA wheel, M star spoke 400 or BMW LA wheel, M star spoke 400 |
S20MA=Yes S26BA=Yes S2PEA=Yes S2PPA=Yes |
||||||||
| For vehicles with 18" LA wheel star spoke 400 M ferric gr. |
S20MA=Yes |
|||||||||
| 02 | Light alloy rim Ferricgrey | 8JX18 ET:34 | 4 | 03/2014 | 36118091939 | Shop at ECS Tuning | ||||
| For vehicles with 18" LA wheel star spoke 400 M ferric gr. Mounting on rear axle Mixed tyres |
S20MA=Yes |
|||||||||
| 02 | Light alloy rim Ferricgrey | 8,5JX18 ET:47 | 2 | 03/2014 | 36118091940 | Shop at ECS Tuning | ||||
| For vehicles with BMW LA wheel, M star spoke 400 Mounting on rear axle Mixed tyres |
S2PEA=Yes |
|||||||||
| 02 | Disc wheel light alloy dekor silver 2 | 8,5JX18 ET:47 | 2 | 03/2014 | 36117845881 | Shop at ECS Tuning | ||||
| For vehicles with BMW light-alloy wheel V-spoke 400M JB |
S26BA=Yes |
|||||||||
| 02 | Disc wheel light alloy jet bl.sol.paint | 8JX18 ET:34 | 4 | 03/2014 | 36118099473 | Shop at ECS Tuning | ||||
| For vehicles with BMW light-alloy wheel V-spoke 400M JB Mounting on rear axle Mixed tyres |
S26BA=Yes |
|||||||||
| 02 | Disc wheel light alloy jet bl.sol.paint | 8,5JX18 ET:47 | 2 | 03/2014 | 36118099474 | Shop at ECS Tuning | ||||
| For vehicles with National version Japan and BMW LA wheel, M star spoke 400 Mounting on rear axle Mixed tyres |
L807A=Yes S2PEA=Yes |
|||||||||
| 02 | Disc wheel light alloy dekor silver 2 | 8,5JX18 ET:47 | 2 | 03/2014 | 36117845881 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Wheel arch trims, primed, rear left | JAPAN | 1 | 03/2014 | 51127325721 | Shop at ECS Tuning | ||||
| -- | Wheel arch trims, primed, rear right | JAPAN | 1 | 03/2014 | 51127325722 | Shop at ECS Tuning | ||||
| -- | Set, adhesive pads | JAPAN | 1 | 03/2014 | 51117324624 | Shop at ECS Tuning | ||||
| For vehicles with BMW LA wheel, M star spoke 400 or BMW LA wheel, M star spoke 400 |
S2PEA=Yes S2PPA=Yes |
|||||||||
| 02 | Disc wheel light alloy dekor silver 2 | 8JX18 ET:34 | 4 | 03/2014 | 36117845880 | Shop at ECS Tuning | ||||
| For vehicles with National version Japan and BMW LA wheel, M star spoke 400 and BMW LA wheel, M star spoke 400 |
L807A=Yes S2PEA=Yes S2PPA=Yes |
|||||||||
| 02 | Disc wheel light alloy dekor silver 2 | 8JX18 ET:34 | 4 | 03/2014 | 36117845880 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Wheel arch trims, primed, rear left | JAPAN | 1 | 03/2014 | 51127325721 | Shop at ECS Tuning | ||||
| -- | Wheel arch trims, primed, rear right | JAPAN | 1 | 03/2014 | 51127325722 | Shop at ECS Tuning | ||||
| -- | Set, adhesive pads | JAPAN | 1 | 03/2014 | 51117324624 | Shop at ECS Tuning | ||||
| -- | Wheel arch trims, primed, front left | JAPAN | 1 | 03/2014 | 51117325719 | Shop at ECS Tuning | ||||
| -- | Wheel arch trims, primed, front right | JAPAN | 1 | 03/2014 | 51117325720 | Shop at ECS Tuning | ||||
| For vehicles with National version Japan and BMW LA wheel, M star spoke 400 and BMW LA wheel, M star spoke 400 |
L807A=Yes S2PEA=Yes S2PPA=No |
|||||||||
| 02 | Disc wheel light alloy dekor silver 2 | 8JX18 ET:34 | 4 | 03/2014 | 36117845880 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Wheel arch trims, primed, rear left | JAPAN | 1 | 03/2014 | 51127325721 | Shop at ECS Tuning | ||||
| -- | Wheel arch trims, primed, rear right | JAPAN | 1 | 03/2014 | 51127325722 | Shop at ECS Tuning | ||||
| -- | Set, adhesive pads | JAPAN | 1 | 03/2014 | 51117324624 | Shop at ECS Tuning | ||||
| -- | Wheel arch trims, primed, front left | JAPAN | 1 | 03/2014 | 51117325719 | Shop at ECS Tuning | ||||
| -- | Wheel arch trims, primed, front right | JAPAN | 1 | 03/2014 | 51117325720 | Shop at ECS Tuning | ||||
| For vehicles with National version Japan and BMW LA wheel, M star spoke 400 and BMW LA wheel, M star spoke 400 |
L807A=Yes S2PEA=No S2PPA=Yes |
|||||||||
| 02 | Disc wheel light alloy dekor silver 2 | 8JX18 ET:34 | 4 | 03/2014 | 36117845880 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Wheel arch trims, primed, rear left | JAPAN | 1 | 03/2014 | 51127325721 | Shop at ECS Tuning | ||||
| -- | Wheel arch trims, primed, rear right | JAPAN | 1 | 03/2014 | 51127325722 | Shop at ECS Tuning | ||||
| -- | Set, adhesive pads | JAPAN | 1 | 03/2014 | 51117324624 | Shop at ECS Tuning | ||||
| -- | Wheel arch trims, primed, front left | JAPAN | 1 | 03/2014 | 51117325719 | Shop at ECS Tuning | ||||
| -- | Wheel arch trims, primed, front right | JAPAN | 1 | 03/2014 | 51117325720 | Shop at ECS Tuning | ||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 03/2014 | 36136890324 | Shop at ECS Tuning | ||||
| 04 | Hub cap with chrome edge | BMW | 4 | 03/2014 | 36136783536 | $9.95 | Shop at ECS Tuning | |||
| For vehicles with Tyre pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=42,5MM | 4 | 03/2014 | 36121116326 | $3.30 | Shop at ECS Tuning | |||
| For vehicles with Tyre pressure display |
S2VBA=Yes |
|||||||||
| 06 | Wheel electr. module RDCi w/ screw valve | 4 | 03/2014 | 36106881890 | Shop at ECS Tuning | |||||
| For vehicles with Tyre pressure display |
S2VBA=No |
|||||||||
| 07 | Valve | 4 | 03/2014 | 36141095389 | $1.38 | Shop at ECS Tuning | ||||
| For vehicles with Tyre pressure display |
S2VBA=Yes |
|||||||||
| 08 | Valve insert RDCi | 4 | 03/2014 | 36146867031 | Shop at ECS Tuning | |||||
| For vehicles with Tyre pressure display |
S2VBA=No |
|||||||||
| 09 | Valve caps | 4 | 03/2014 | 36121120779 | $0.60 | Shop at ECS Tuning | ||||
| For vehicles with Tyre pressure display |
S2VBA=Yes |
|||||||||
| 10 | Valve cap RDCi | 4 | 03/2014 | 36146867030 | Shop at ECS Tuning | |||||
| 11 | Repair kit, screw-type valve RDCi | 4 | 03/2014 | 36106876673 | Shop at ECS Tuning | |||||
| 12 | M badge | 4 | 03/2014 | 36112228660 | $6.62 | Shop at ECS Tuning | ||||
