Steel rim styl.12 - 16'' for BMW 3 Series F30 LCI 320i (2018)

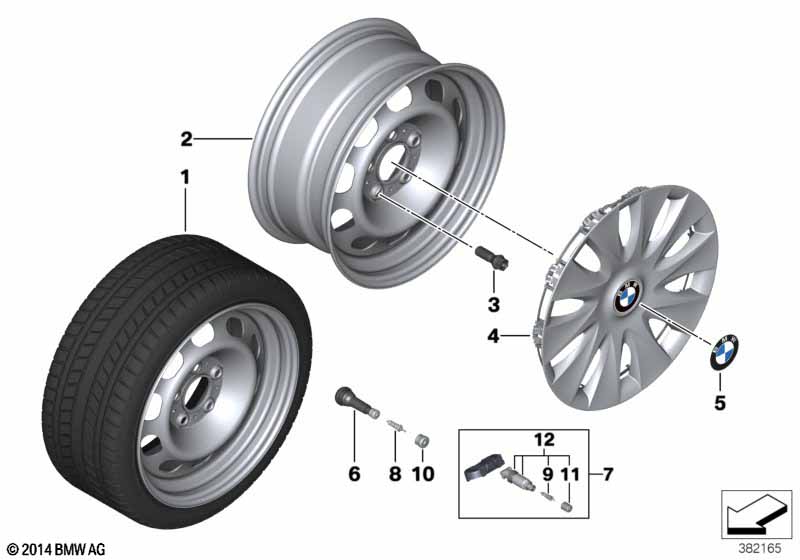

This Steel rim styl.12 - 16'' technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | IMPORTANT: In accordance with the EU Battery Regulation, a part designation is compulsory for RDC sensors or for components with permanently installed battery! When the customer purchases this product, he must receive a printout of the appended document! Note: Only for vehicles with approval as per EG-BE. The selected wheel/tyre combination is possibly entry-relevant. Please check in the vehicle CoC whether the wheel/tyre combination is entered. If this is not the case, a subsequent national approval may be necessary on a country-specific basis!! |
|||||||||
| For vehicles with M Sport brake and Sports brake ONLY FOR WINTER TYRES |
S2NHA=No SZP1A=No |
|||||||||
| 02 | Steel rim schwarz | 7JX16 ET:31 | 4 | 36106786353 | Shop at ECS Tuning | |||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Wheel cover | 16" | 4 | 36136791806 | Shop at ECS Tuning | |||||
| 05 | BMW insignia stamped with adhesive film | D=64,5MM | 4 | 36136767550 | $5.33 | Shop at ECS Tuning | ||||
| For vehicles with Tyre pressure display |
S2VBA=No |
|||||||||
| 06 | Rubber valve | L=42,5MM | 4 | 03/2014 | 36121116326 | $3.30 | Shop at ECS Tuning | |||
| For vehicles with Tyre pressure display |
S2VBA=Yes |
|||||||||
| 07 | Wheel electr. module RDCi w/ screw valve | 4 | 03/2014 | 36106881890 | Shop at ECS Tuning | |||||
| For vehicles with Tyre pressure display |
S2VBA=No |
|||||||||
| 08 | Valve | 4 | 03/2014 | 36141095389 | $1.38 | Shop at ECS Tuning | ||||
| For vehicles with Tyre pressure display |
S2VBA=Yes |
|||||||||
| 09 | Valve insert RDCi | 4 | 03/2014 | 36146867031 | Shop at ECS Tuning | |||||
| For vehicles with Tyre pressure display |
S2VBA=No |
|||||||||
| 10 | Valve caps | 4 | 03/2014 | 36121120779 | $0.60 | Shop at ECS Tuning | ||||
| For vehicles with Tyre pressure display |
S2VBA=Yes |
|||||||||
| 11 | Valve cap RDCi | 4 | 03/2014 | 36146867030 | Shop at ECS Tuning | |||||
| 12 | Repair kit, screw-type valve RDCi | 4 | 03/2014 | 36106876673 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series F30 LCI 320i Steel rim styl.12 - 16''?
- This technical diagram illustrates the Steel rim styl.12 - 16'' within the Wheels group for the 3 Series F30 LCI 320i produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Steel rim schwarz (Part #36106786353).
- Which models use the hardware listed in this Steel rim styl.12 - 16''?
- The hardware and components featured in the Steel rim styl.12 - 16'' are specific to the 3 Series F30 LCI 320i produced during 2018. These technical specifications ensure that parts like the Steel rim schwarz (36106786353) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steel rim styl.12 - 16'' assembly?
- Each item in the Steel rim styl.12 - 16'' corresponds to the numbered list below the illustration. For the 3 Series F30 LCI 320i, you can identify the Steel rim schwarz by locating its position on the schematic, which then links to the official BMW part number 36106786353 for the Wheels section.
