BMW LA wheel V-spoke 642 - 18'' for BMW 7 Series G11 LCI 730i (2020)

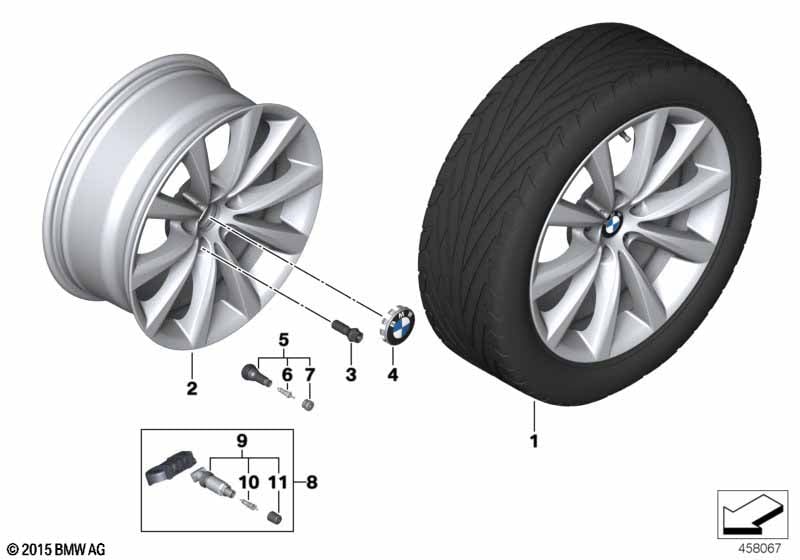

This BMW LA wheel V-spoke 642 - 18'' technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | IMPORTANT: In accordance with the EU Battery Regulation, a part designation is compulsory for RDC sensors or for components with permanently installed battery! When the customer purchases this product, he must receive a printout of the appended document! For vehicles with BMW LA wheel V-spoke 642 or BMW light alloy wheel V-spoke 642/em.op. or BMW lte.al.whl.V-sp.642/e.op./all-season or BMW LA wheel V-spoke / flat-runn. or BMW LA wheel V-spoke 642 or Winter instead of summer tyres ex-fact. or Winter wheels |
S1L5A=Yes S1L6A=Yes S1L7A=Yes S23GA=Yes S23HA=Yes S931A=Yes S9WRA=Yes |
||||||||
| For vehicles with M Sport brake |
S2NHA=No |
|||||||||
| 02 | Light alloy disc wheel Reflexsilber | 8JX18 ET:30 | 4 | 36116867338 | Shop at ECS Tuning | |||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Hub cap with chrome edge | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| For vehicles with Tyre pressure display |
S2VBA=No |
|||||||||
| 05 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 06 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with Tyre pressure display |
S2VBA=Yes |
|||||||||
| 08 | Wheel electr. module RDCi w/ screw valve | 433MHZ | 4 | 36106887147 | Shop at ECS Tuning | |||||
| For vehicles with Tyre pressure display and Radio frequency 315 MHz |
S2VBA=Yes S876A=Yes |
|||||||||
| 08 | Wheel electr. module RDCi w/ screw valve | 315MHZ | 4 | 36106887146 | Shop at ECS Tuning | |||||
| For vehicles with Tyre pressure display |
S2VBA=Yes |
|||||||||
| 09 | Repair kit, screw-type valve RDCi | 4 | 36106874842 | Shop at ECS Tuning | ||||||
| 10 | Valve insert RDCi | 4 | 36146872777 | Shop at ECS Tuning | ||||||
| 11 | Valve cap RDCi | 4 | 36146872776 | Shop at ECS Tuning | ||||||
