Rear door - hinge/door brake for BMW 5 Series E39 525i (2003)

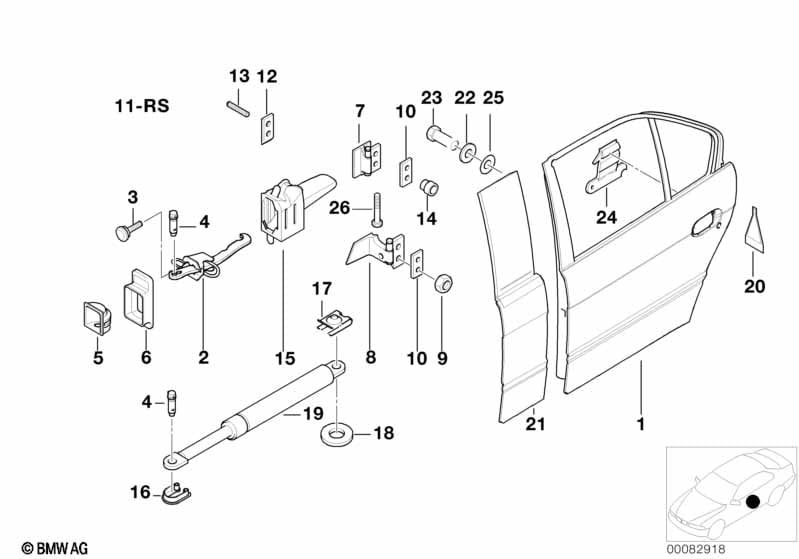

This Rear door - hinge/door brake technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| FOR VEHICLES WITH AND WITHOUT INSULATING DOUBLE-GLAZING |
||||||||||
| 01 | Door, rear left | 1 | 41528266721 | $769.17 | Shop at ECS Tuning | |||||
| 01 | Door, rear right | 1 | 41528266722 | $769.17 | Shop at ECS Tuning | |||||
| 02 | Rear door brake | 2 | 12/1996 | 51228193448 | $37.70 | Shop at ECS Tuning | ||||
| 03 | Torx bolt | ISA M6X12 | 4 | 51211973382 | $0.66 | Shop at ECS Tuning | ||||
| 04 | Pin | 2 | 51218141116 | $1.10 | Shop at ECS Tuning | |||||
| 05 | Cover | 2 | 51218171502 | $2.06 | Shop at ECS Tuning | |||||
| 06 | Gasket, door brake | 2 | 51218203824 | $10.39 | Shop at ECS Tuning | |||||
| 07 | Hinge, rear door, upper, left | 1 | 41528185781 | $35.79 | Shop at ECS Tuning | |||||
| 07 | Hinge, rear door, upper, right | 1 | 41528185782 | $35.79 | Shop at ECS Tuning | |||||
| 08 | Hinge, rear door, lower, left | 1 | 41528207937 | $35.79 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hinge, rear door, lower, right | 1 | 41528207938 | $35.79 | ENDED | Shop at ECS Tuning | ||||
| 09 | Hex nut | M8-8-ZNNIV SI | 8 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 10 | Spacer | 1,0MM | X | 41517202047 | $3.02 | Shop at ECS Tuning | ||||
| 10 | Spacer | 0,5MM | X | 41518173321 | $3.02 | Shop at ECS Tuning | ||||
| 11 | Repair kit for door hinge | X | 41511960998 | $9.84 | Shop at ECS Tuning | |||||
| CONSISTING OF PIN BUSH FLAT WASHER CIRCLIP HEX BOLT WITH WASHER |
||||||||||
| 12 | Lock plate | M8 | 4 | 41511925445 | $47.65 | Shop at ECS Tuning | ||||
| 13 | Stud bolt | M8X25 | 8 | 41511925444 | $8.16 | Shop at ECS Tuning | ||||
| 14 | Protection cap | SCHWARZ | 2 | 51218177670 | $0.33 | Shop at ECS Tuning | ||||
| 15 | Left door brake cover | 1 | 12/1996 | 51228163985 | $4.86 | Shop at ECS Tuning | ||||
| 15 | Right door brake cover | 1 | 12/1996 | 51228163986 | $4.86 | Shop at ECS Tuning | ||||
| 20 | Reflector/reflecting foil | 2 | 63318363847 | $1.45 | Shop at ECS Tuning | |||||
| 24 | Covering left | 1 | 05/1999 | 51218243391 | $4.18 | Shop at ECS Tuning | ||||
| 24 | Covering right | 1 | 05/1999 | 51218243392 | $4.18 | Shop at ECS Tuning | ||||
| 26 | Hex Bolt | M6X22-8.8-MK | 4 | 07119906263 | $0.36 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
