Front door control/door lock for BMW 5 Series E39 525i (2003)

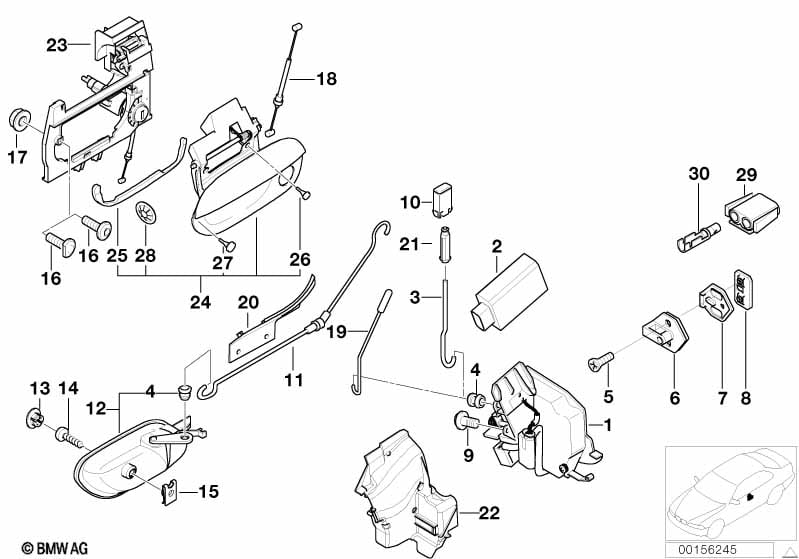

This Front door control/door lock technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door lock front left | 1 | 51218235097 | $162.58 | Shop at ECS Tuning | |||||
| 01 | Door lock front right | 1 | 51218235104 | $162.58 | Shop at ECS Tuning | |||||
| For vehicles with Remote control ONLY APPLIES TO CO-DRIVERS SIDE |
=Yes |
|||||||||
| 01 | Door lock front right | 1 | 51218235102 | $162.58 | Shop at ECS Tuning | |||||
| 02 | Actuator | 2 | 67118352165 | $101.80 | Shop at ECS Tuning | |||||
| 04 | Grommet | 4 | 52208238999 | $0.40 | Shop at ECS Tuning | |||||
| 05 | Torx-countersunk screw | ISA M8X19.5 | 4 | 51218153573 | $0.47 | Shop at ECS Tuning | ||||
| 06 | Latch striker | 2 | 51218176350 | $44.98 | Shop at ECS Tuning | |||||
| 07 | Striker plate gasket | 2 | 51218189952 | $1.79 | Shop at ECS Tuning | |||||
| 08 | Lock plate | M8 | 2 | 41358164026 | $1.65 | Shop at ECS Tuning | ||||
| 09 | Torx bolt | ASA M6X11 | 6 | 51458166995 | $0.80 | Shop at ECS Tuning | ||||
| 11 | Front left door handle bowden cable | 1 | 03/2001 | 51217032927 | $9.83 | Shop at ECS Tuning | ||||
| 11 | Front right door handle bowden cable | 1 | 03/2001 | 51217032928 | $9.83 | Shop at ECS Tuning | ||||
| 12 | Door handle, inside left | 1 | 03/2001 | 51217032925 | $46.15 | Shop at ECS Tuning | ||||
| 12 | Door handle inner right | 1 | 03/2001 | 51217032926 | $46.15 | Shop at ECS Tuning | ||||
| 13 | Cap | SCHWARZ | 2 | 51218163829 | $2.33 | Shop at ECS Tuning | ||||
| 14 | Fillister head self-tapping screw | ST4,8X19-Z1 | 2 | 07119906765 | $0.56 | Shop at ECS Tuning | ||||
| 15 | Plug-in nut | M5 | 2 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 16 | Torx-bolt with washer | ISA M6X17 | 4 | 03/1996 | 07517207108 | $0.64 | Shop at ECS Tuning | |||
| 18 | Front door lock bowden cable | 2 | 51218184584 | $14.18 | Shop at ECS Tuning | |||||
| 19 | Operating rod | 2 | 51218168036 | $1.02 | Shop at ECS Tuning | |||||
| 20 | Bracket front left | 1 | 09/1995 | 51218215699 | $7.32 | Shop at ECS Tuning | ||||
| 20 | Bracket front right | 1 | 09/1995 | 51218215700 | $4.50 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 22 | Lock panel, left | 1 | 51218253057 | $10.32 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 22 | Lock panel, right | 1 | 51218235164 | $8.98 | Shop at ECS Tuning | |||||
| For vehicles with Protective glazing ONLY APPLIES TO CO-DRIVERS SIDE |
S357A=Yes |
|||||||||
| 22 | Lock panel, right | 1 | 51218253060 | $6.47 | ENDED | Shop at ECS Tuning | ||||
| 23 | Lock with code left | 1 | 51218245351 | $144.65 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 23 | Catch with key code right | 1 | 51218245352 | $144.65 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 23 | Catch with key left | 1 | 51218245353 | $144.45 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 23 | Catch with key right | 1 | 51218245354 | $144.45 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Torx-bolt with washer | ISA M6X17 | 2 | 07517207108 | $0.64 | Shop at ECS Tuning | ||||
| Important! Before ordering keys, simultaneous locks, ECUs (immobiliser/CAS) etc., it is necessary to ensure the procurement authorisation of the customer and the vehicle owner by producing the original vehicle documents and official photo identification! A power of attorney from the vehicle owner is also required for authorised third parties. Copies of the specified credentials (proof of authorisation) must be kept in the vehicle records. Please inform BMW Service immediately if a vehicle key is lost so it can be deactivated in order to avoid taking the risk of losing the insurance cover due to gross negligence in the event of a theft. |
||||||||||
| For vehicles with Radio remote control ONLY APPLIES TO CO-DRIVERS SIDE Important! Before ordering keys, simultaneous locks, ECUs (immobiliser/CAS) etc., it is necessary to ensure the procurement authorisation of the customer and the vehicle owner by producing the original vehicle documents and official photo identification! A power of attorney from the vehicle owner is also required for authorised third parties. Copies of the specified credentials (proof of authorisation) must be kept in the vehicle records. Please inform BMW Service immediately if a vehicle key is lost so it can be deactivated in order to avoid taking the risk of losing the insurance cover due to gross negligence in the event of a theft. |
=Yes |
|||||||||
| 23 | Carrier, outside door handle,front right | 1 | 51218236644 | $61.87 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Torx-bolt with washer | ISA M6X17 | 2 | 07517207108 | $0.64 | Shop at ECS Tuning | ||||
| 24 | Door handle outer left | GRUNDIERT | 1 | 51218245461 | $61.43 | Shop at ECS Tuning | ||||
| 24 | Door handle outer right | GRUNDIERT | 1 | 51218245462 | $61.43 | +core | Shop at ECS Tuning | |||
| 24 | Door handle outer left | CODE - UNI/MET. | 1 | 51210000515 | $251.81 | ENDED | Shop at ECS Tuning | |||
| When ordering indicate colour code | ||||||||||
| 24 | Door handle outer right | CODE - UNI/MET. | 1 | 51210000516 | ENDED, +core | Shop at ECS Tuning | ||||
| When ordering indicate colour code | ||||||||||
| ONLY APPLIES TO CO-DRIVERS SIDE only applies to remote control |
||||||||||
| 24 | Door handle outer right | CODE - UNI/MET. | 1 | 51210000519 | ENDED, +core | Shop at ECS Tuning | ||||
| When ordering indicate colour code | ||||||||||
| For vehicles with Remote control ONLY APPLIES TO CO-DRIVERS SIDE |
=Yes |
|||||||||
| 24 | Door handle outer right | GRUNDIERT | 1 | 51218245464 | $61.43 | Shop at ECS Tuning | ||||
| 25 | Left base | 1 | 51218220051 | $1.93 | Shop at ECS Tuning | |||||
| 25 | Right base | 1 | 51218220052 | $1.93 | Shop at ECS Tuning | |||||
| 26 | Stop buffer | BLACK | 4 | 51211970863 | $0.73 | Shop at ECS Tuning | ||||
| 26 | Stop buffer | GRAU | 4 | 51218220053 | $0.71 | Shop at ECS Tuning | ||||
| 27 | Stop buffer | 4 | 51218234860 | $0.79 | Shop at ECS Tuning | |||||
| 28 | Spring nut | 2 | 51458220836 | $0.18 | Shop at ECS Tuning | |||||
| 29 | Socket housing, black | 2 POL. | 1 | 61131378110 | $1.37 | Shop at ECS Tuning | ||||
| 30 | Round receptacle 2.5 | 1,0-2,5MM² | 2 | 61131376204 | $0.98 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
