Front body parts for BMW 3 Series E36 328i (1995)

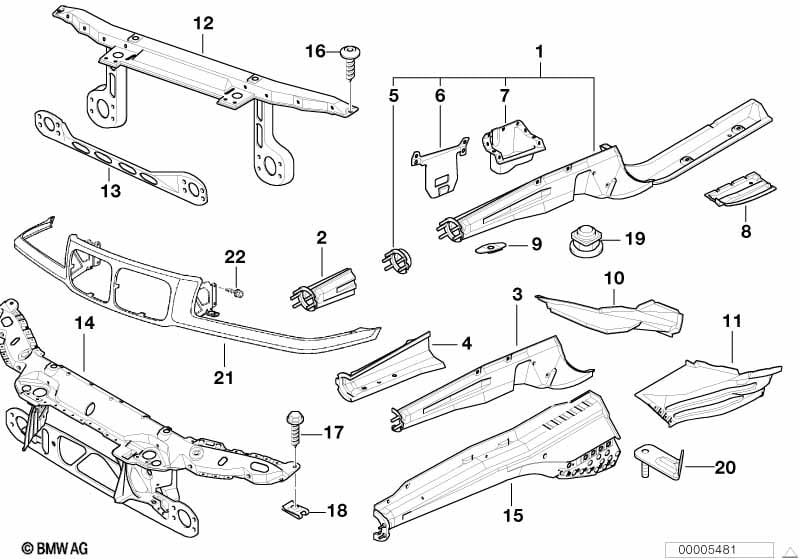

This Front body parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Complete left engine support | 1 | 09/1994 | 41118209935 | $375.10 | ENDED | Shop at ECS Tuning | |||
| 01 | Complete right engine support | 1 | 09/1994 | 41118209936 | $375.10 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version south africa |
L824A=Yes |
|||||||||
| 01 | Complete left engine support | 1 | 01/1995 | 41118209935 | $375.10 | ENDED | Shop at ECS Tuning | |||
| 01 | Complete right engine support | 1 | 01/1995 | 41118209936 | $375.10 | ENDED | Shop at ECS Tuning | |||
| 02 | Section of left engine support | 1 | 41118122551 | $201.79 | ENDED | Shop at ECS Tuning | ||||
| 02 | Section of right engine support | 1 | 41118122552 | $201.79 | ENDED | Shop at ECS Tuning | ||||
| 03 | Exterior left engine support | 1 | 41118168909 | $54.83 | Shop at ECS Tuning | |||||
| 03 | Exterior right engine support | 1 | 41118168910 | $54.83 | Shop at ECS Tuning | |||||
| 05 | Support for shock absorber | 2 | 41138168907 | $4.88 | Shop at ECS Tuning | |||||
| 06 | Support for left radiator | 1 | 41118122557 | $7.52 | Shop at ECS Tuning | |||||
| 06 | Support for right radiator | 1 | 41118122558 | $7.52 | Shop at ECS Tuning | |||||
| 07 | Left stabilizer support | 1 | 10/1991 | 41118151121 | $19.84 | Shop at ECS Tuning | ||||
| 07 | Right stabilizer support | 1 | 10/1991 | 41118151122 | $19.84 | Shop at ECS Tuning | ||||
| 10 | Supporting strut, front wall left | 1 | 41118122547 | $53.05 | Shop at ECS Tuning | |||||
| 10 | Supporting strut, front wall right | 1 | 41118122548 | $53.05 | Shop at ECS Tuning | |||||
| 12 | Front panel | 1 | 41138122560 | $238.89 | Shop at ECS Tuning | |||||
| 13 | Bent front cross member | 1 | 41118144039 | $67.89 | Shop at ECS Tuning | |||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 13 | Straight front cross member | 1 | 41138132178 | $67.89 | Shop at ECS Tuning | |||||
| 16 | Torx bolt | ISA ST6,3X14 | 2 | 41009163211 | $0.43 | Shop at ECS Tuning | ||||
| 19 | Earth pin | M8X12 | X | 07147182215 | Shop at ECS Tuning | |||||
| 19 | Earth pin | M6X12 | X | 41248185432 | Shop at ECS Tuning | |||||
| 21 | Front panel | 1 | 09/1996 | 41331977940 | $138.60 | Shop at ECS Tuning | ||||
| For vehicles with Headlight cleaning system |
=Yes |
|||||||||
| 21 | Front panel | 1 | 09/1996 | 41338122472 | $138.60 | Shop at ECS Tuning | ||||
| 21 | Front panel | 1 | 09/1996 | 41338225982 | $138.60 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Grille left | 1 | 09/1996 | 51138195151 | $41.09 | Shop at ECS Tuning | ||||
| -- | Grille right | 1 | 09/1996 | 51138195152 | $41.09 | Shop at ECS Tuning | ||||
| 22 | Hex head screw | ST6,3X13-C-Z2-Z | 4 | 07119901359 | $0.36 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
