Roof for BMW 5 Series E39 525i (2003)

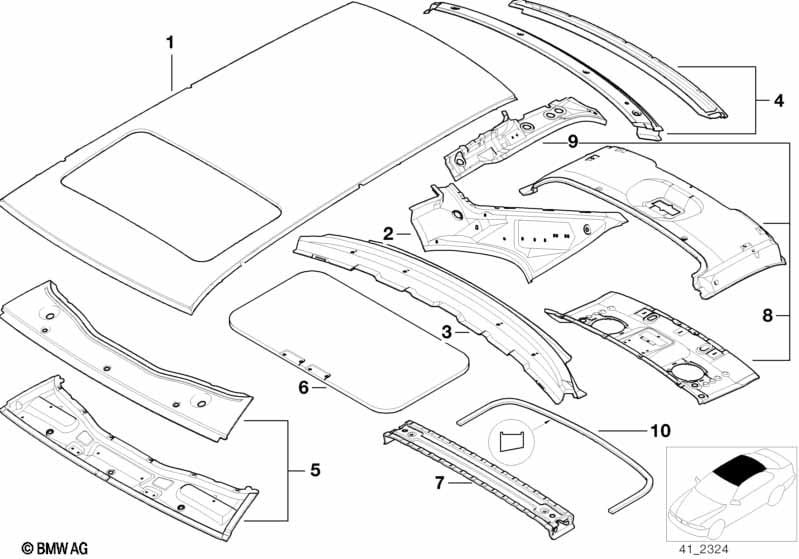

This Roof technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Roof panel f lifting-sliding roof | 1 | 41318185764 | $1105.35 | Shop at ECS Tuning | |||||
| 01 | Roof panel | 1 | 41318204880 | $963.79 | Shop at ECS Tuning | |||||
| Suitable for vehicles with and without ITS head airbag/rear compartment |
||||||||||
| 02 | Left interior column C | 1 | 41007044631 | $49.31 | ENDED | Shop at ECS Tuning | ||||
| 02 | Right interior column C | 1 | 41007044632 | $49.31 | ENDED | Shop at ECS Tuning | ||||
| 03 | Rear window frame bottom part | 1 | 41328205611 | $60.29 | Shop at ECS Tuning | |||||
| 04 | Rear window frame upper part | 1 | 41328205612 | $53.62 | Shop at ECS Tuning | |||||
| FOR VEHICLES WITH AND WITHOUT SLIDING LIFTING ROOF |
||||||||||
| 05 | Upper apron | 1 | 41328205613 | $245.48 | ENDED | Shop at ECS Tuning | ||||
| 06 | Front roof reinforcement | 2 | 51488150297 | $46.62 | Shop at ECS Tuning | |||||
| 07 | Roof bow | 1 | 41238258338 | $54.41 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
