Body skeleton for BMW 3 Series E46 318i (2001)

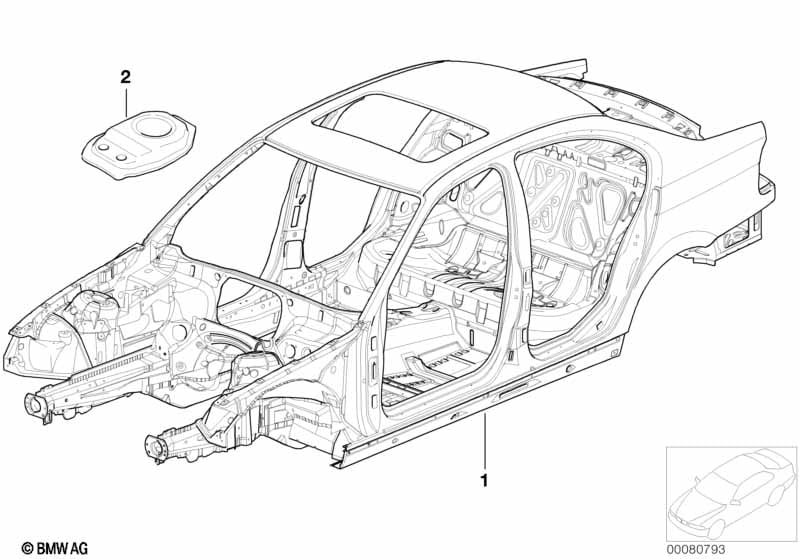

This Body skeleton technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | If necessary, with Reinforcement, support bearing For Short engine M57 SA203 = 4-wheel drive SA815 = poor road package |
|||||||||
| 01 | Body skeleton | BASIS | 1 | 41008242253 | ENDED | Shop at ECS Tuning | ||||
| 01 | Body skeleton sliding lifting roof | BASIS | 1 | 41008242254 | ENDED | Shop at ECS Tuning | ||||
| 01 | Body skeleton, through-loading system | BASIS | 1 | 41008242257 | ENDED | Shop at ECS Tuning | ||||
| 01 | Body skeleton sliding roof/through-load. | BASIS | 1 | 41008242258 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i Body skeleton?
- This technical diagram illustrates the Body skeleton within the Bodywork group for the 3 Series E46 318i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Body skeleton (Part #41008242253).
- Which models use the hardware listed in this Body skeleton?
- The hardware and components featured in the Body skeleton are specific to the 3 Series E46 318i produced during 2001. These technical specifications ensure that parts like the Body skeleton (41008242253) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Body skeleton assembly?
- Each item in the Body skeleton corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Body skeleton by locating its position on the schematic, which then links to the official BMW part number 41008242253 for the Bodywork section.
