Single components for body-side frame for BMW 3 Series E46 318i (2001)

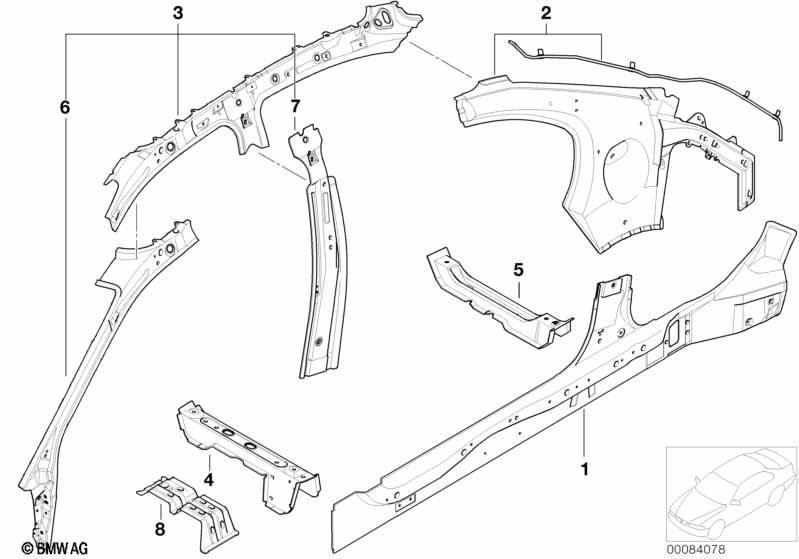

This Single components for body-side frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left side member | 1 | 41127039693 | $112.49 | Shop at ECS Tuning | |||||
| 01 | Right side member | 1 | 41127039694 | $112.49 | Shop at ECS Tuning | |||||
| FOR VEHICLES WITH AND WITHOUT SLIDING LIFTING ROOF |
||||||||||
| 02 | Reinforcement left | 1 | 41218236613 | $352.58 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 02 | Reinforcement right | 1 | 41218236614 | $352.58 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Outlet hose | L=2M | 1 | 54108261716 | $28.16 | Shop at ECS Tuning | ||||
| only in conjunction with MOULDED PART |
||||||||||
| 03 | Left interior side frame | 1 | 41218236615 | $462.36 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 03 | Right interior side frame | 1 | 41218236616 | $462.36 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Outlet hose | L=2M | 1 | 54108261716 | $28.16 | Shop at ECS Tuning | ||||
| -- | Flange nut | M10 | 2 | 41218227672 | $1.96 | Shop at ECS Tuning | ||||
| 04 | Left front seat console | 1 | 41118239493 | $43.41 | ENDED | Shop at ECS Tuning | ||||
| 04 | Right front seat console | 1 | 41118239494 | $43.41 | ENDED | Shop at ECS Tuning | ||||
| 05 | Left rear seat console | 1 | 41118233493 | $43.41 | ENDED | Shop at ECS Tuning | ||||
| 05 | Right rear seat console | 1 | 41118233494 | $43.41 | ENDED | Shop at ECS Tuning | ||||
| 06 | Left front side frame | 1 | 41218253751 | $163.14 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 06 | Right front side frame | 1 | 41218253752 | $170.86 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Flange nut | M10 | 2 | 41218227672 | $1.96 | Shop at ECS Tuning | ||||
| 07 | Interior left column B | 1 | 41218253749 | $139.58 | Shop at ECS Tuning | |||||
| 07 | Column B inside right | 1 | 41218253750 | $139.58 | Shop at ECS Tuning | |||||
| 08 | Covering plate left | 1 | 41117037745 | $17.35 | ENDED | Shop at ECS Tuning | ||||
| 08 | Covering plate right | 1 | 41117037746 | $17.35 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
