Rear door - hinge/door brake for BMW 3 Series E46 318i (2001)

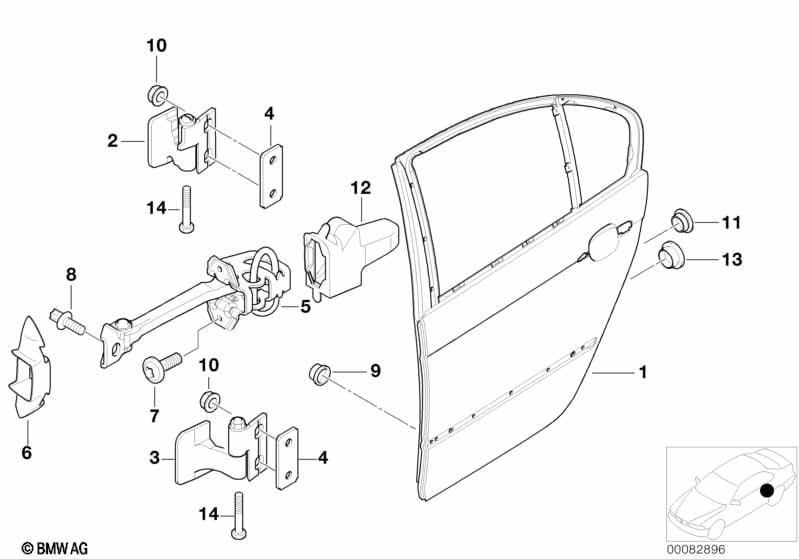

This Rear door - hinge/door brake technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door, rear left | 1 | 41527034153 | $586.71 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Door, rear right | 1 | 41527034154 | $586.71 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Template | TÜRE E46/4 | 1 | 01399791461 | $1.63 | Shop at ECS Tuning | ||||
| -- | Template | TÜRE E46/4 | 1 | 01399791462 | $1.63 | Shop at ECS Tuning | ||||
| 02 | Hinge, rear door, upper, left | 1 | 41528240083 | $35.79 | Shop at ECS Tuning | |||||
| 02 | Hinge, rear door, upper, right | 1 | 41528240084 | $35.79 | Shop at ECS Tuning | |||||
| 03 | Hinge, rear door, lower, left | 1 | 41528240085 | $35.79 | Shop at ECS Tuning | |||||
| 03 | Hinge, rear door, lower, right | 1 | 41528240086 | $35.79 | Shop at ECS Tuning | |||||
| 04 | Spacer | 1,0MM | X | 41517202047 | $3.02 | Shop at ECS Tuning | ||||
| 04 | Spacer | 0,5MM | X | 41518173321 | $3.02 | Shop at ECS Tuning | ||||
| 05 | Rear door brake | 2 | 51228160963 | $36.05 | Shop at ECS Tuning | |||||
| 06 | Left rear door brake gasket | 1 | 51228222401 | $8.45 | Shop at ECS Tuning | |||||
| 06 | Right rear door brake gasket | 1 | 51228222402 | $8.45 | Shop at ECS Tuning | |||||
| 07 | Torx-bolt with washer | ISA M6X10 | 4 | 07147184168 | $0.62 | Shop at ECS Tuning | ||||
| 08 | Torx-bolt with washer | ASA M8X22 | 2 | 07147248303 | $0.60 | Shop at ECS Tuning | ||||
| 09 | Protection cap | SCHWARZ | 2 | 51218177670 | $0.33 | Shop at ECS Tuning | ||||
| 10 | Hex nut with plate | M8 | 8 | 07146970706 | $1.18 | Shop at ECS Tuning | ||||
| 11 | Plug | D=8MM | 2 | 51218235768 | $0.39 | Shop at ECS Tuning | ||||
| 12 | Left rear door brake grommet | 1 | 51228231995 | $3.77 | Shop at ECS Tuning | |||||
| 12 | Right rear door brake grommet | 1 | 51228231996 | $3.77 | Shop at ECS Tuning | |||||
| 13 | Blind plug | D=12MM | 2 | 51718110199 | $0.18 | Shop at ECS Tuning | ||||
| 14 | Hex Bolt | M6X22-8.8-MK | 4 | 07119906263 | $0.36 | Shop at ECS Tuning | ||||
