Cavity shielding, side frame for BMW 3 Series E46 318i (2001)

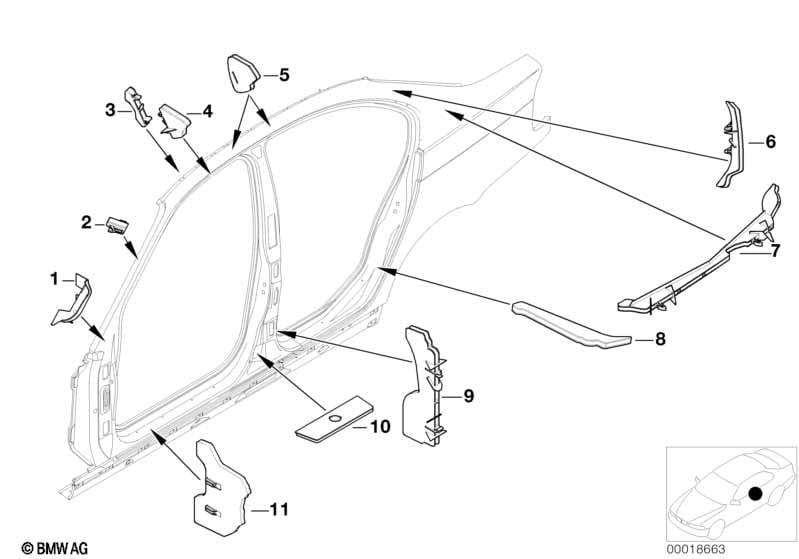

This Cavity shielding, side frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| FOR VEHICLES WITH AND WITHOUT SLIDING LIFTING ROOF |
||||||||||
| 01 | Moulded part column A left | 1 | 41218222435 | $6.37 | Shop at ECS Tuning | |||||
| 01 | Moulded part column A right | 1 | 41218222436 | $6.37 | ENDED | Shop at ECS Tuning | ||||
| 02 | Moulded part windscreen panel lateral | 1 | 41218208271 | $6.70 | Shop at ECS Tuning | |||||
| 03 | Moulded part f roof frame interior front | 1 | 41218216586 | ENDED | Shop at ECS Tuning | |||||
| 04 | Moulded part f roof frame exterior front | 1 | 41218202920 | ENDED | Shop at ECS Tuning | |||||
| 05 | Moulded part f roof frame centre | 2 | 41218202923 | $7.54 | Shop at ECS Tuning | |||||
| 06 | Moulded part column C, interior | 1 | 41218204993 | $5.63 | Shop at ECS Tuning | |||||
| FOR VEHICLES WITH AND WITHOUT SLIDING LIFTING ROOF |
||||||||||
| 07 | Moulded part f column C, exterior left | 1 | 41218216587 | $8.02 | Shop at ECS Tuning | |||||
| 07 | Moulded part f column C, exterior right | 1 | 41218216588 | $8.02 | Shop at ECS Tuning | |||||
| 08 | Moulded part f entrance rear left | 2 | 41218247805 | $8.84 | Shop at ECS Tuning | |||||
| 09 | Moulded part f entrance centre | 1 | 41218208264 | $8.02 | Shop at ECS Tuning | |||||
| 10 | Moulded part column B | 1 | 41218204995 | $5.39 | Shop at ECS Tuning | |||||
| 11 | Moulded part f entrance front | 1 | 41218202906 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
