Body skeleton for BMW 5 Series F10 LCI 530d (2013)

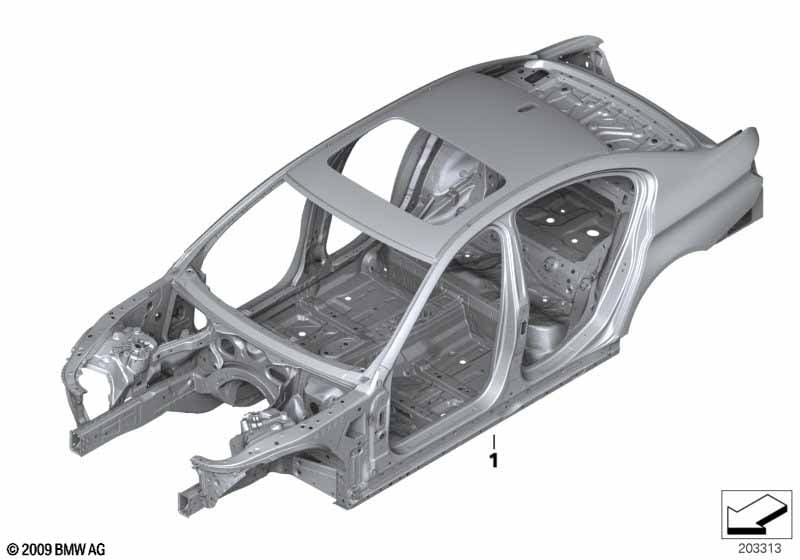

This Body skeleton technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Body carcass without vehicle ID number | BASIS | 1 | 07/2013 | 41007261935 | ENDED, NoS | Shop at ECS Tuning | |||
| The following information is required when ordering: - Vehicle identification number |
||||||||||
| 01 | Body carcass with vehicle ID number | BASIS | 1 | 07/2013 | 41002180232 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical |
S403A=Yes |
|||||||||
| 01 | Body carcass without vehicle ID number | BASIS | 1 | 07/2013 | 41007261936 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical The following information is required when ordering: - Vehicle identification number |
S403A=Yes |
|||||||||
| 01 | Body carcass with vehicle ID number | BASIS | 1 | 07/2013 | 41002180233 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series F10 LCI 530d Body skeleton?
- This technical diagram illustrates the Body skeleton within the Bodywork group for the 5 Series F10 LCI 530d produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Body carcass without vehicle ID number (Part #41007261935).
- Which models use the hardware listed in this Body skeleton?
- The hardware and components featured in the Body skeleton are specific to the 5 Series F10 LCI 530d produced during 2013. These technical specifications ensure that parts like the Body carcass without vehicle ID number (41007261935) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Body skeleton assembly?
- Each item in the Body skeleton corresponds to the numbered list below the illustration. For the 5 Series F10 LCI 530d, you can identify the Body carcass without vehicle ID number by locating its position on the schematic, which then links to the official BMW part number 41007261935 for the Bodywork section.
