Door trim, rear for BMW 3 Series E30 325i (1985)

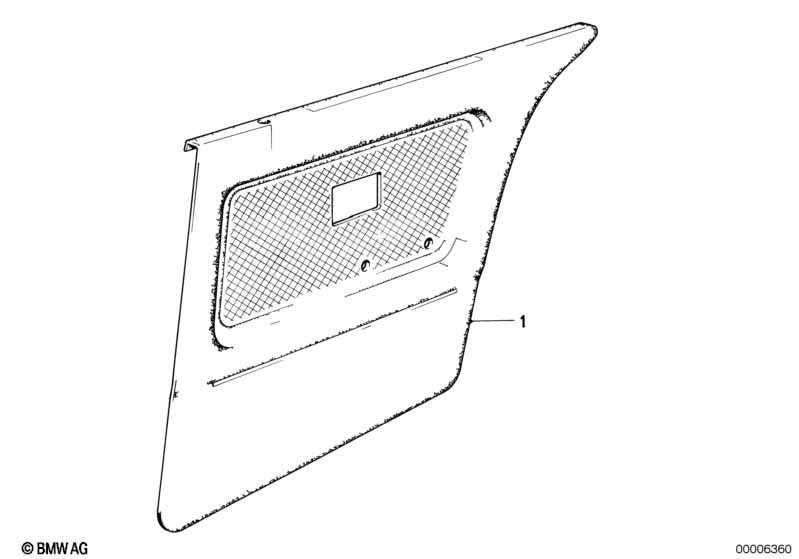

This Door trim, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door lining cloth rear left | ANTHRACITE | 1 | 01/1988 | 51422910171 | Shop at ECS Tuning | ||||
| 01 | Door lining cloth rear right | ANTHRACITE | 1 | 01/1988 | 51422910172 | Shop at ECS Tuning | ||||
| 01 | Door lining cloth rear left | PACIFIC | 1 | 01/1988 | 51422910173 | Shop at ECS Tuning | ||||
| 01 | Door lining cloth rear right | PACIFIC | 1 | 01/1988 | 51422910174 | Shop at ECS Tuning | ||||
| 01 | Door lining cloth rear left | NUTRIA | 1 | 01/1988 | 51422910175 | Shop at ECS Tuning | ||||
| 01 | Door lining cloth rear right | NUTRIA | 1 | 01/1988 | 51422910176 | Shop at ECS Tuning | ||||
| 01 | Door lining cloth rear left | PEARL BEIGE | 1 | 01/1988 | 51422910177 | Shop at ECS Tuning | ||||
| 01 | Door lining cloth rear right | PEARL BEIGE | 1 | 01/1988 | 51422910178 | Shop at ECS Tuning | ||||
| 01 | Door lining cloth rear left | PINE GREEN | 1 | 01/1988 | 51422910179 | Shop at ECS Tuning | ||||
| 01 | Door lining cloth rear right | PINE GREEN | 1 | 01/1988 | 51422910180 | Shop at ECS Tuning | ||||
| 01 | Door lining cloth rear left | ANTHRACITE | 1 | 51422910171 | Shop at ECS Tuning | |||||
| 01 | Door lining cloth rear right | ANTHRACITE | 1 | 51422910172 | Shop at ECS Tuning | |||||
| 01 | Door lining cloth rear left | 1 | 51422910421 | Shop at ECS Tuning | ||||||
| 01 | Door lining cloth rear right | 1 | 51422910422 | Shop at ECS Tuning | ||||||
| 01 | Door lining cloth rear left | 1 | 51422910425 | Shop at ECS Tuning | ||||||
| 01 | Door lining cloth rear right | 1 | 51422910426 | Shop at ECS Tuning | ||||||
| 01 | Door lining cloth rear left | 1 | 51422910427 | Shop at ECS Tuning | ||||||
| 01 | Door lining cloth rear right | 1 | 51422910428 | Shop at ECS Tuning | ||||||
| For vehicles with Vinyl version or Leather trim |
=Yes =Yes |
|||||||||
| 01 | Door lining vynil rear left | PACIFIC | 1 | 01/1988 | 51422910163 | Shop at ECS Tuning | ||||
| 01 | Door lining vynil rear right | PACIFIC | 1 | 01/1988 | 51422910164 | Shop at ECS Tuning | ||||
| 01 | Door lining vynil rear left | NUTRIA | 1 | 01/1988 | 51422910165 | Shop at ECS Tuning | ||||
| 01 | Door lining vynil rear right | NUTRIA | 1 | 01/1988 | 51422910166 | Shop at ECS Tuning | ||||
| 01 | Door lining vynil rear left | PEARL BEIGE | 1 | 01/1988 | 51422910167 | Shop at ECS Tuning | ||||
| 01 | Door lining vynil rear right | PEARL BEIGE | 1 | 01/1988 | 51422910168 | Shop at ECS Tuning | ||||
| 01 | Door lining vynil rear left | PINE GREEN | 1 | 01/1988 | 51422910169 | Shop at ECS Tuning | ||||
| 01 | Door lining vynil rear left | SCHWARZ | 1 | 51421967167 | $673.90 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining vynil rear left | BLACK | 1 | 51422910161 | Shop at ECS Tuning | |||||
| 01 | Door lining vynil rear right | BLACK | 1 | 51422910162 | Shop at ECS Tuning | |||||
| 01 | Door lining vynil rear right | PINE GREEN | 1 | 51422910170 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
