Interior trim lateral for BMW 6 Series E24 628CSi

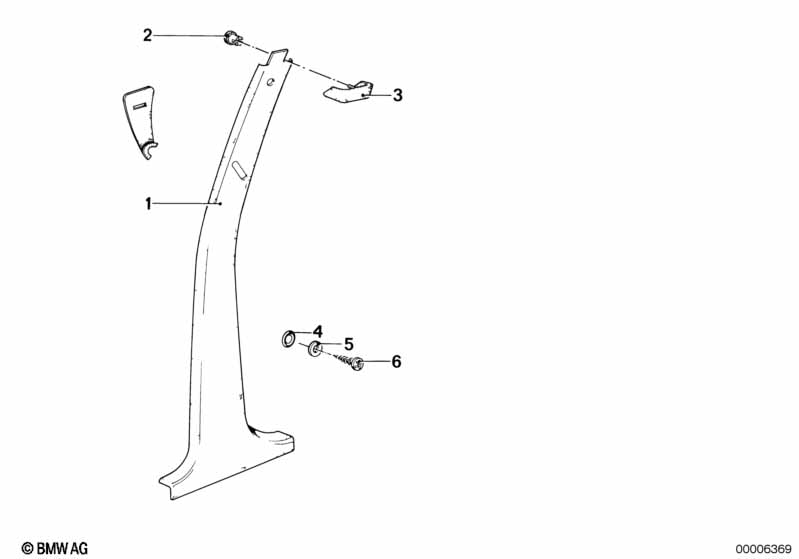

This Interior trim lateral technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 628CSi. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering column-center left | ANTHRAZIT | 1 | 08/1979 | 51431875447 | $218.08 | ENDED | Shop at ECS Tuning | ||
| 01 | Covering column-center right | ANTHRAZIT | 1 | 08/1979 | 51431875448 | $178.95 | Shop at ECS Tuning | |||
| 01 | Covering column-center left | NUTRIA | 1 | 09/1984 | 06/1987 | 51431929247 | ENDED | Shop at ECS Tuning | ||
| 01 | Covering column-center right | NUTRIA | 1 | 09/1984 | 06/1987 | 51431929248 | ENDED | Shop at ECS Tuning | ||
| 01 | Covering column-center left | PINIENGRUEN | 1 | 09/1984 | 06/1987 | 51431929249 | $132.80 | ENDED | Shop at ECS Tuning | |
| 01 | Covering column-center right | PINIENGRUEN | 1 | 09/1984 | 06/1987 | 51431929250 | $132.80 | ENDED | Shop at ECS Tuning | |
| 02 | Grommet | 2 | 51141849885 | $1.38 | ENDED | Shop at ECS Tuning | ||||
| 03 | End piece | ANTHRAZIT | 2 | 51431905936 | $2.17 | Shop at ECS Tuning | ||||
| 03 | End piece | NUTRIA | 2 | 09/1984 | 06/1987 | 51431929256 | $2.17 | Shop at ECS Tuning | ||
| 03 | End piece | PINIENGRUEN | 2 | 09/1984 | 06/1987 | 51431929257 | $2.06 | ENDED | Shop at ECS Tuning | |
| 04 | Washer | 4 | 51431869141 | $0.41 | ENDED | Shop at ECS Tuning | ||||
| 05 | Washer | 8,4X16X1,6-ZNNV | 4 | 07119907030 | Shop at ECS Tuning | |||||
| 06 | Screw | 4 | 07119904170 | $0.17 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
