Trim panel leg room for BMW 3 Series E36 328i (1994)

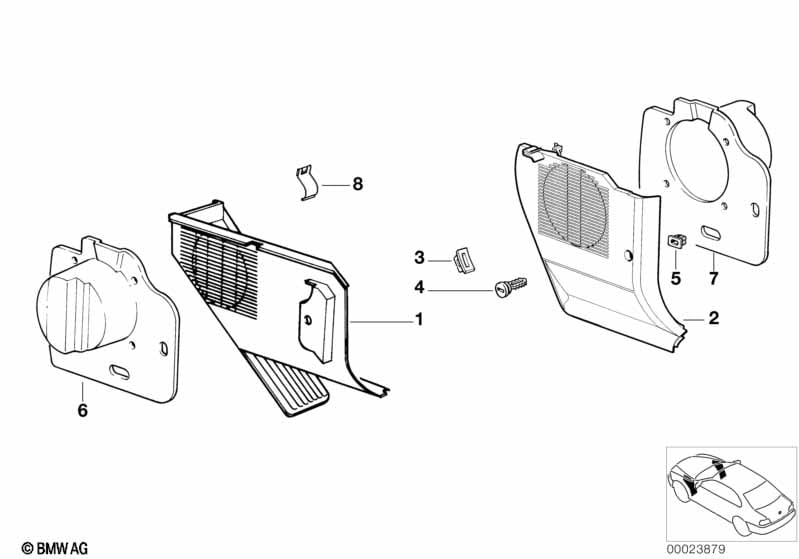

This Trim panel leg room technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lateral trim panel front left | SCHWARZ | 1 | 51438135511 | $33.19 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel front left | GRAU | 1 | 51438173557 | $33.19 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel front left | BEIGE | 1 | 51438173559 | $33.19 | Shop at ECS Tuning | ||||
| 02 | Lateral trim panel front right | SCHWARZ | 1 | 51438135512 | $33.19 | ENDED | Shop at ECS Tuning | |||
| 02 | Lateral trim panel front right | GRAU | 1 | 51438173558 | $33.19 | Shop at ECS Tuning | ||||
| 02 | Lateral trim panel front right | BEIGE | 1 | 51438173560 | $33.19 | Shop at ECS Tuning | ||||
| 03 | Holder | 2 | 51438108298 | $0.71 | Shop at ECS Tuning | |||||
| 03 | Clip | 2 | 51438201048 | $0.74 | Shop at ECS Tuning | |||||
| 04 | Locking button | HELLGRAU | 2 | 51438203384 | $1.10 | Shop at ECS Tuning | ||||
| 04 | Push-button | SCHWARZ | 2 | 51458116321 | $1.10 | Shop at ECS Tuning | ||||
| 04 | Locking button | DUNKELGRAU | 2 | 09/1993 | 51438173509 | $1.10 | Shop at ECS Tuning | |||
| 04 | Locking button | DUNKELBEIGE | 2 | 09/1993 | 51438173510 | $1.87 | Shop at ECS Tuning | |||
| 05 | Locking insert | 2 | 51711916199 | $0.32 | Shop at ECS Tuning | |||||
| 06 | Sound insulating left | 1 | 51488202275 | $17.93 | ENDED | Shop at ECS Tuning | ||||
| 07 | Sound insulating right | 1 | 51488202276 | $17.93 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
