Door window lifting mechanism rear for BMW 3 Series E36 323i (1999)

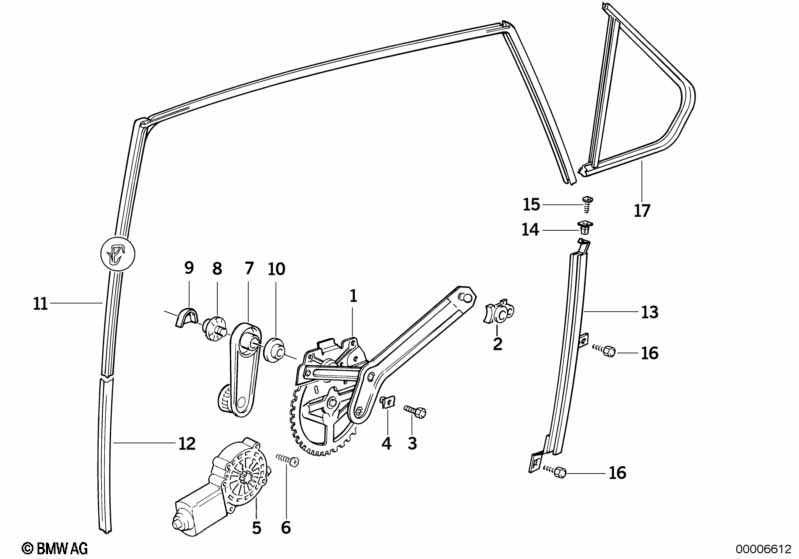

This Door window lifting mechanism rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Window lifter rear left | 1 | 51348227347 | $71.27 | Shop at ECS Tuning | |||||
| 01 | Window lifter rear right | 1 | 51348227348 | $71.27 | Shop at ECS Tuning | |||||
| For vehicles with Window lifts,electric,front/rear |
S411A=Yes |
|||||||||
| 01 | Electr.window lifter rear left | 1 | 51348119775 | $75.57 | Shop at ECS Tuning | |||||
| 01 | Electr.window lifter rear right | 1 | 51348119776 | $75.57 | Shop at ECS Tuning | |||||
| 02 | Sliding piece | 2 | 51321938884 | $3.02 | Shop at ECS Tuning | |||||
| 03 | Hex Bolt with washer | M6X16-U2-ZNS3 | 2 | 07119902913 | Shop at ECS Tuning | |||||
| 04 | C-clip nut | M6-ZNS3 | 2 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 05 | Electr.drive | 1 | 67621387436 | $147.05 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 05 | Electr.drive | 1 | 67621387435 | $147.05 | Shop at ECS Tuning | |||||
| 06 | Countersunk screw | X | 51371952879 | $0.80 | Shop at ECS Tuning | |||||
| 07 | Crank,window lifter | SCHWARZ | 2 | 51328122503 | $14.60 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 08 | Torx-bolt with washer | ISA M5X10 | 2 | 54121907282 | $0.89 | ENDED | Shop at ECS Tuning | |||
| 09 | Covering cap | SCHWARZ | 2 | 09/1993 | 51328186711 | $1.80 | Shop at ECS Tuning | |||
| 10 | Stop disc | SCHWARZ | 2 | 09/1993 | 51328186712 | $0.40 | Shop at ECS Tuning | |||
| 11 | Left rear window guide | 1 | 51348213983 | $40.18 | Shop at ECS Tuning | |||||
| 11 | Rear right window guide | 1 | 51348213984 | $40.18 | ENDED | Shop at ECS Tuning | ||||
| 12 | Window guide | 2 | 51321960413 | $7.43 | Shop at ECS Tuning | |||||
| 13 | Left window guide | 1 | 51341960901 | $25.23 | Shop at ECS Tuning | |||||
| 13 | Right window guide | 1 | 51341960902 | $25.23 | Shop at ECS Tuning | |||||
| 14 | Prestol-cage | ST4,2 | 2 | 07129901744 | Shop at ECS Tuning | |||||
| 15 | Fillister head self-tapping screw | ST4,2X16-ABW | 2 | 12/1990 | 07119906749 | $0.11 | Shop at ECS Tuning | |||
| 16 | Hex Bolt with washer | M6X16-Z3-2 | 4 | 07119915021 | $0.47 | Shop at ECS Tuning | ||||
| 17 | Gasket left | 1 | 51341960915 | $20.14 | Shop at ECS Tuning | |||||
| 17 | Gasket right | 1 | 51341960916 | $20.14 | Shop at ECS Tuning | |||||
| 18 | Hex Bolt with washer | M6X10-Z1 | 6 | 07119915041 | $0.25 | Shop at ECS Tuning | ||||
| 19 | Self-locking hex nut | M6 | 6 | 51417053138 | $0.38 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
