Trunk trim panel for BMW 5 Series E39 528i (1999)

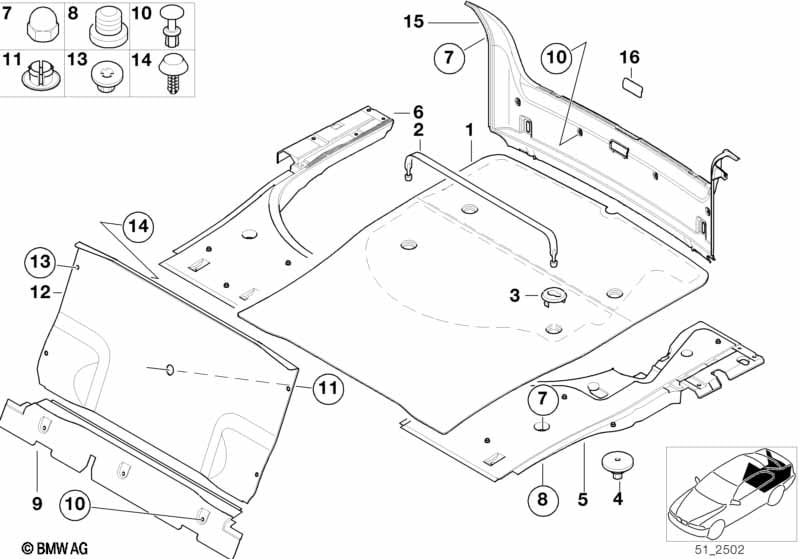

This Trunk trim panel technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk mat with tension straps | GRAU | 1 | 51478159495 | $126.21 | Shop at ECS Tuning | ||||
| 02 | Tensioning strap, black | L=590 MM | 2 | 51478136450 | $6.73 | Shop at ECS Tuning | ||||
| 03 | Support f tension strap | 4 | 51478230749 | $0.82 | Shop at ECS Tuning | |||||
| 04 | Pad | H=19.5MM | 1 | 51471960706 | $2.05 | Shop at ECS Tuning | ||||
| 05 | Left trunk mat base | SCHWARZ | 1 | 51478182903 | $36.58 | ENDED | Shop at ECS Tuning | |||
| 06 | Right trunk mat base | SCHWARZ | 1 | 51478167738 | $36.58 | ENDED | Shop at ECS Tuning | |||
| 07 | Cap nut | M5 | 5 | 51711934930 | $0.23 | Shop at ECS Tuning | ||||
| 08 | Rubber buffer | X | 51478144588 | $1.27 | Shop at ECS Tuning | |||||
| 09 | Through-loading cross member trim | GRAU | 1 | 51478174311 | $35.86 | Shop at ECS Tuning | ||||
| 10 | Expanding rivet | SCHWARZ | 3 | 51498166702 | $0.37 | Shop at ECS Tuning | ||||
| 11 | Battery wiring cap | 1 | 51478206645 | $0.80 | Shop at ECS Tuning | |||||
| 12 | Trim panel, trunk partition | GRAU | 1 | 51478159474 | $57.65 | Shop at ECS Tuning | ||||
| For vehicles with National version Japan |
L807A=Yes |
|||||||||
| 12 | Trim panel, trunk partition | GRAU | 1 | 51478218786 | ENDED | Shop at ECS Tuning | ||||
| 13 | Spacer bush | SCHWARZ | 4 | 51478189959 | $0.69 | Shop at ECS Tuning | ||||
| 14 | Push-button | SCHWARZ | 4 | 51478189958 | $0.42 | Shop at ECS Tuning | ||||
| 15 | Tail trim panel | SCHWARZ | 1 | 51478159480 | $34.56 | Shop at ECS Tuning | ||||
| 16 | Rear trunk trim panel cover | SCHWARZ | 1 | 51478187012 | $2.42 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
