Bumper, front for BMW 2.5CS-3.0CSL 2.5CS (1975)

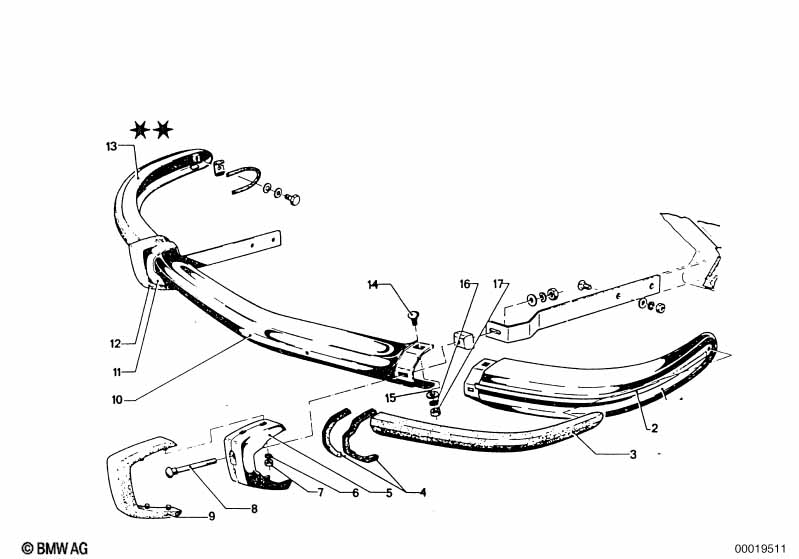

This Bumper, front technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 2.5CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumper, front left | 1 | 51111811191 | $751.72 | ENDED | Shop at ECS Tuning | ||||
| 02 | Holder | 2 | 51111811043 | $36.63 | Shop at ECS Tuning | |||||
| 03 | Rubber strip front | 2 | 51111810819 | $70.96 | Shop at ECS Tuning | |||||
| 04 | Synthetic strip | SCHWARZ | X | 51111808420 | $5.46 | ENDED | Shop at ECS Tuning | |||
| 05 | Bumper over-rider | LINKS | 1 | 51111810519 | $575.25 | ENDED | Shop at ECS Tuning | |||
| 06 | Washer | A6,4-ZNNIV SI | 10 | 07119904202 | Shop at ECS Tuning | |||||
| 07 | Self-locking hex nut | M6 | 10 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 08 | Saucer-head screw | M8X85 | 2 | 07119910478 | $2.13 | Shop at ECS Tuning | ||||
| 09 | Rubber buffer | LINKS | 1 | 51111810523 | $156.39 | Shop at ECS Tuning | ||||
| 10 | Bumper front center | 1 | 51111811256 | $756.07 | Shop at ECS Tuning | |||||
| 11 | Bumper over-rider | RECHTS | 1 | 51111810520 | $407.34 | ENDED | Shop at ECS Tuning | |||
| 12 | Rubber buffer | RECHTS | 1 | 51111810524 | $150.94 | Shop at ECS Tuning | ||||
| 13 | Bumper front right | 1 | 51111811192 | $751.72 | ENDED | Shop at ECS Tuning | ||||
| 15 | Washer | 8,4X24X2-ZNS3 | 8 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 16 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 17 | Hex nut with plate | M8 | 8 | 51117070183 | $0.77 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
