Bumper rear for BMW 2.5CS-3.0CSL 2.5CS (1975)

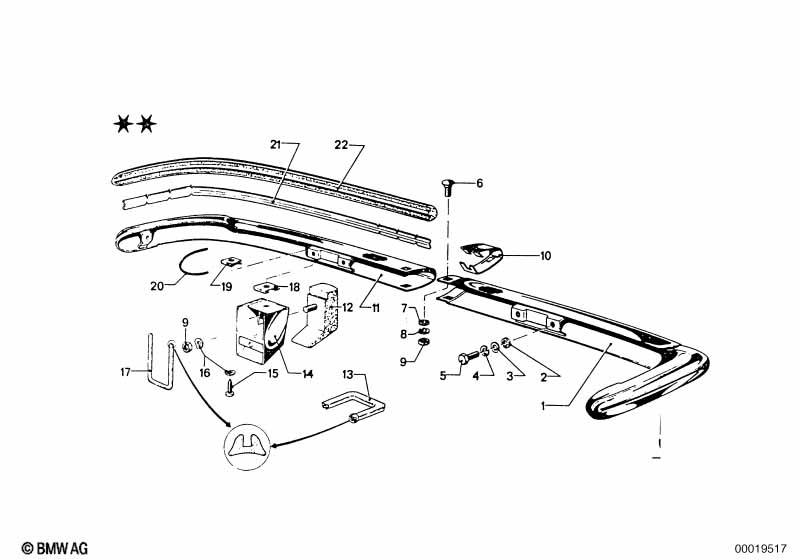

This Bumper rear technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 2.5CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumper rear left | 1 | 51121811189 | $940.23 | ENDED | Shop at ECS Tuning | ||||
| 02 | Rubber washer | 4 | 51125770149 | $2.71 | Shop at ECS Tuning | |||||
| 03 | Washer | 8,4X16X1,6-ZNNV | 6 | 07119907030 | Shop at ECS Tuning | |||||
| 04 | Spring washer | B8 | 8 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Hex Bolt | M8X20-ZNNIV SI | 8 | 07119903039 | Shop at ECS Tuning | |||||
| 07 | Washer | A7,4 | 3 | 07119931056 | ENDED | Shop at ECS Tuning | ||||
| 09 | Self-locking hex nut | M6 | 7 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 10 | Finisher | 1 | 51125770161 | $154.01 | ENDED | Shop at ECS Tuning | ||||
| 11 | Bumper rear right | 1 | 51121811190 | $940.23 | ENDED | Shop at ECS Tuning | ||||
| 13 | Synthetic strip | SCHWARZ | X | 51111808420 | $5.46 | ENDED | Shop at ECS Tuning | |||
| 18 | Base | 2 | 51115770144 | ENDED | Shop at ECS Tuning | |||||
| 20 | Synthetic strip | 2 | 51121811179 | $1.10 | Shop at ECS Tuning | |||||
| 21 | Holder | 2 | 51121811045 | $36.61 | Shop at ECS Tuning | |||||
| 22 | Bumper guard | 2 | 51121810825 | $126.00 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 2.5CS Bumper rear?
- This technical diagram illustrates the Bumper rear within the Vehicle trim group for the 2.5CS-3.0CSL 2.5CS produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Bumper rear left (Part #51121811189).
- Which models use the hardware listed in this Bumper rear?
- The hardware and components featured in the Bumper rear are specific to the 2.5CS-3.0CSL 2.5CS produced during 1975. These technical specifications ensure that parts like the Bumper rear left (51121811189) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Bumper rear assembly?
- Each item in the Bumper rear corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 2.5CS, you can identify the Bumper rear left by locating its position on the schematic, which then links to the official BMW part number 51121811189 for the Vehicle trim section.
