Ashtray for BMW 2.5CS-3.0CSL 2.5CS (1975)

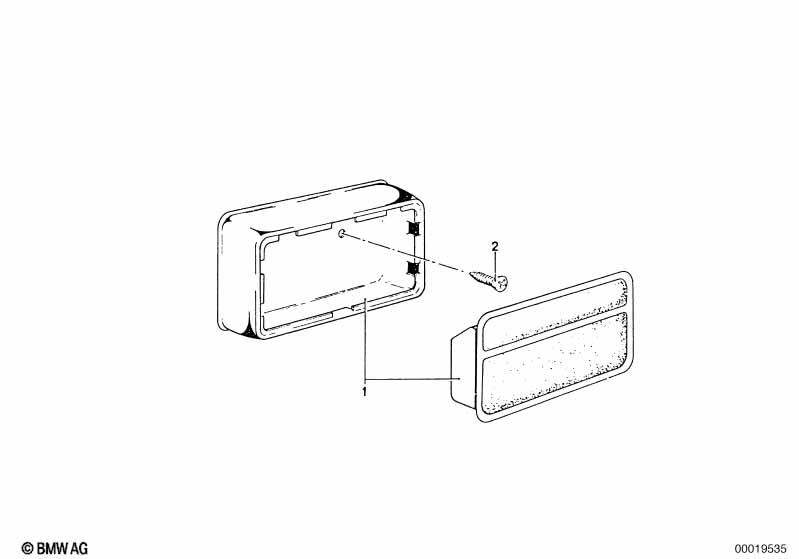

This Ashtray technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 2.5CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ashtray rear | SCHWARZ | 2 | 51161804983 | ENDED | Shop at ECS Tuning | ||||
| 02 | Screw | 4 | 07119904170 | $0.17 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 2.5CS Ashtray?
- This technical diagram illustrates the Ashtray within the Vehicle trim group for the 2.5CS-3.0CSL 2.5CS produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Ashtray rear (Part #51161804983).
- Which models use the hardware listed in this Ashtray?
- The hardware and components featured in the Ashtray are specific to the 2.5CS-3.0CSL 2.5CS produced during 1975. These technical specifications ensure that parts like the Ashtray rear (51161804983) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ashtray assembly?
- Each item in the Ashtray corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 2.5CS, you can identify the Ashtray rear by locating its position on the schematic, which then links to the official BMW part number 51161804983 for the Vehicle trim section.
