Emblems / letterings for BMW 2.5CS-3.0CSL 2.5CS (1975)

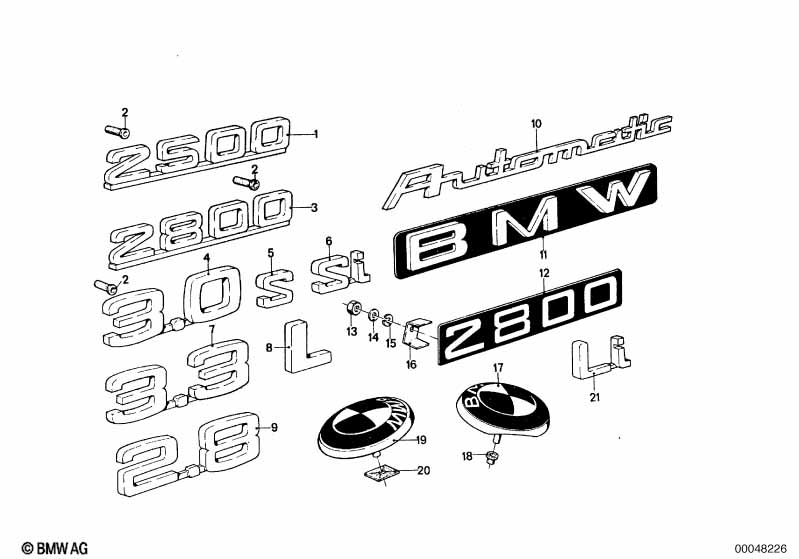

This Emblems / letterings technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 2.5CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 17 | Trunk lid badge | 1 | 51141872327 | $35.63 | Shop at ECS Tuning | |||||
| 18 | Grommet | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| 18 | Grommet | 2 | 51141852899 | $1.84 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 2.5CS Emblems / letterings?
- This technical diagram illustrates the Emblems / letterings within the Vehicle trim group for the 2.5CS-3.0CSL 2.5CS produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Trunk lid badge (Part #51141872327).
- Which models use the hardware listed in this Emblems / letterings?
- The hardware and components featured in the Emblems / letterings are specific to the 2.5CS-3.0CSL 2.5CS produced during 1975. These technical specifications ensure that parts like the Trunk lid badge (51141872327) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Emblems / letterings assembly?
- Each item in the Emblems / letterings corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 2.5CS, you can identify the Trunk lid badge by locating its position on the schematic, which then links to the official BMW part number 51141872327 for the Vehicle trim section.
