Glazing for BMW 5 Series E60 525i (2005)

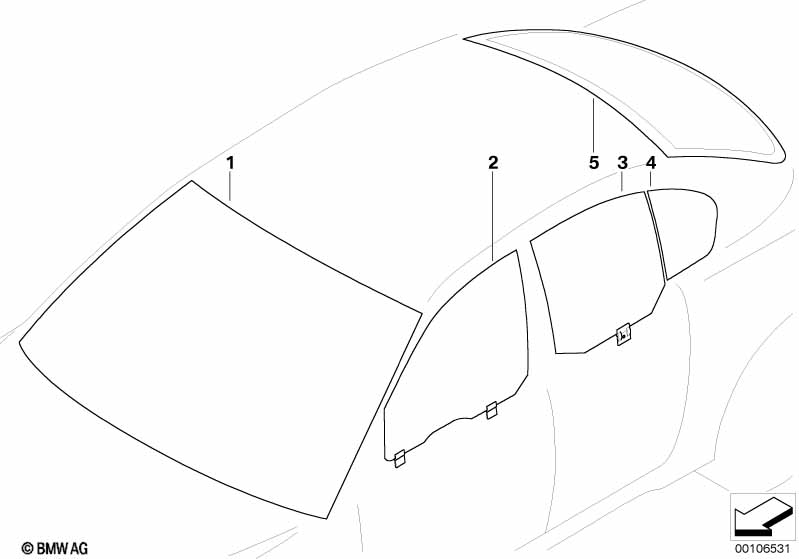

This Glazing technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version China and Windscreen, green-tinted upper strip and Climate comfort laminated glass and Automatic air conditioning and Head-up display |
L8AAA=Yes S354A=No S356A=No S534A=Yes S610A=Yes |
|||||||||
| 01 | Green windscreen, rain sensor | BS / HUD | 1 | 03/2007 | 51317070296 | $700.18 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Repair kit, window glass, cold, 1 hour | SET | 1 | 03/2007 | 83192180001 | Shop at ECS Tuning | ||||
| Necessary for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 03/2007 | 83192211217 | Shop at ECS Tuning | ||||
| -- | Sound insulation f apron | L=1471MM | 1 | 03/2007 | 51487009037 | $25.05 | Shop at ECS Tuning | |||
| -- | Adjusting plate | 1 | 03/2007 | 61617037361 | $2.05 | Shop at ECS Tuning | ||||
| -- | Clip | 10 | 03/2007 | 51317064098 | $0.82 | Shop at ECS Tuning | ||||
| -- | Cover, windshield | 1 | 03/2007 | 51317166841 | $26.74 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Windscreen, green-tinted upper strip and Climate comfort laminated glass and Automatic air conditioning and Head-up display |
L8AAA=No S354A=No S356A=Yes S534A=Yes S610A=Yes |
|||||||||
| 01 | Green windscreen, rain sensor | BS / IR / HUD | 1 | 03/2007 | 51317070298 | $985.35 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Repair kit, window glass, cold, 1 hour | SET | 1 | 03/2007 | 83192289285 | Shop at ECS Tuning | ||||
| Necessary for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 03/2007 | 83192211217 | Shop at ECS Tuning | ||||
| -- | Sound insulation f apron | L=1471MM | 1 | 03/2007 | 51487009037 | $25.05 | Shop at ECS Tuning | |||
| -- | Adjusting plate | 1 | 03/2007 | 61617037361 | $2.05 | Shop at ECS Tuning | ||||
| -- | Clip | 10 | 03/2007 | 51317064098 | $0.82 | Shop at ECS Tuning | ||||
| -- | Cover, windshield | 1 | 03/2007 | 51317166841 | $26.74 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Windscreen, green-tinted upper strip and Climate comfort laminated glass and Automatic air conditioning and Head-up display |
L8AAA=Yes S354A=Yes S356A=No S534A=Yes S610A=No |
|||||||||
| 01 | Green windscreen, shade band+rain sensor | 1 | 03/2007 | 51317070294 | $588.45 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair kit, window glass, cold, 1 hour | SET | 1 | 03/2007 | 83192180001 | Shop at ECS Tuning | ||||
| Necessary for repair | ||||||||||
| -- | Set, fogging sensor, glued | 1 | 03/2007 | 64116928326 | $110.27 | Shop at ECS Tuning | ||||
| Necessary for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 03/2007 | 83192211217 | Shop at ECS Tuning | ||||
| -- | Sound insulation f apron | L=1471MM | 1 | 03/2007 | 51487009037 | $25.05 | Shop at ECS Tuning | |||
| -- | Adjusting plate | 1 | 03/2007 | 61617037361 | $2.05 | Shop at ECS Tuning | ||||
| -- | Clip | 10 | 03/2007 | 51317064098 | $0.82 | Shop at ECS Tuning | ||||
| -- | Cover, windshield | 1 | 03/2007 | 51317166841 | $26.74 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Windscreen, green-tinted upper strip and Climate comfort laminated glass and Automatic air conditioning and Head-up display |
L8AAA=Yes S354A=Yes S356A=Yes S534A=Yes S610A=No |
|||||||||
| 01 | Green windscreen, shade band+rain sensor | BS / IR | 1 | 03/2007 | 51317070297 | $872.71 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Repair kit, window glass, cold, 1 hour | SET | 1 | 03/2007 | 83192180001 | Shop at ECS Tuning | ||||
| Necessary for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 03/2007 | 83192211217 | Shop at ECS Tuning | ||||
| -- | Sound insulation f apron | L=1471MM | 1 | 03/2007 | 51487009037 | $25.05 | Shop at ECS Tuning | |||
| -- | Adjusting plate | 1 | 03/2007 | 61617037361 | $2.05 | Shop at ECS Tuning | ||||
| -- | Clip | 10 | 03/2007 | 51317064098 | $0.82 | Shop at ECS Tuning | ||||
| -- | Cover, windshield | 1 | 03/2007 | 51317166841 | $26.74 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Windscreen, green-tinted upper strip and Climate comfort laminated glass and Automatic air conditioning and Head-up display |
L8AAA=No S354A=No S356A=No S534A=No S610A=No |
|||||||||
| 01 | Green windscreen, rain sensor | 1 | 03/2007 | 51317070292 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair kit, window glass, cold, 1 hour | SET | 1 | 03/2007 | 83192289285 | Shop at ECS Tuning | ||||
| Necessary for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 03/2007 | 83192211217 | Shop at ECS Tuning | ||||
| -- | Sound insulation f apron | L=1471MM | 1 | 03/2007 | 51487009037 | $25.05 | Shop at ECS Tuning | |||
| -- | Adjusting plate | 1 | 03/2007 | 61617037361 | $2.05 | Shop at ECS Tuning | ||||
| -- | Clip | 10 | 03/2007 | 51317064098 | $0.82 | Shop at ECS Tuning | ||||
| -- | Cover, windshield | 1 | 03/2007 | 51317166841 | $26.74 | Shop at ECS Tuning | ||||
| 02 | Side window, green, door, front left | 1 | 51337110633 | $133.30 | Shop at ECS Tuning | |||||
| 02 | Side window, green, door, front right | 1 | 51337110634 | $133.30 | Shop at ECS Tuning | |||||
| For vehicles with Protective glazing |
S357A=Yes |
|||||||||
| 02 | Side window, green, door, front left | 1 | 51337067127 | $1297.03 | ENDED | Shop at ECS Tuning | ||||
| 02 | Side window, green, door, front right | 1 | 51337067128 | $1079.73 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Climate comfort laminated glass |
S356A=Yes |
|||||||||
| 02 | Side window, green, door, front left | IR | 1 | 51337067125 | $490.00 | Shop at ECS Tuning | ||||
| 02 | Side window, green, door, front right | IR | 1 | 51337067126 | $490.00 | Shop at ECS Tuning | ||||
| 03 | Side window, green, door, rear left | 1 | 51357110635 | $123.76 | Shop at ECS Tuning | |||||
| 03 | Side window, green, door, rear right | 1 | 51357110636 | $123.76 | Shop at ECS Tuning | |||||
| For vehicles with Protective glazing |
S357A=Yes |
|||||||||
| 03 | Side window, green, door, rear left | 1 | 51357067135 | $931.86 | ENDED | Shop at ECS Tuning | ||||
| 03 | Side window, green, door, rear right | 1 | 51357067136 | $931.86 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Individual sunshade glazing |
S761A=Yes |
|||||||||
| 03 | Side window, green, door, rear left | VENUS-GRAU | 1 | 51357067131 | $379.21 | Shop at ECS Tuning | ||||
| 03 | Side window, green, door, rear right | VENUS-GRAU | 1 | 51357067132 | $379.21 | Shop at ECS Tuning | ||||
| For vehicles with Climate comfort laminated glass |
S356A=Yes |
|||||||||
| 03 | Side window, green, door, rear left | IR | 1 | 51357067133 | $558.44 | Shop at ECS Tuning | ||||
| 03 | Side window, green, door, rear right | IR | 1 | 51357067134 | $558.44 | Shop at ECS Tuning | ||||
| 04 | Side window,green fixed,left rear door | 1 | 51357033643 | $129.54 | ENDED | Shop at ECS Tuning | ||||
| 04 | Side window,green fixed,right rear door | 1 | 51357033644 | $129.54 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Individual sunshade glazing |
S761A=Yes |
|||||||||
| 04 | Side window,green fixed,left rear door | VENUS-GRAU | 1 | 51357067061 | $137.63 | Shop at ECS Tuning | ||||
| 04 | Side window,green fixed,right rear door | VENUS-GRAU | 1 | 51357067062 | $139.03 | Shop at ECS Tuning | ||||
| For vehicles with Climate comfort laminated glass |
S356A=Yes |
|||||||||
| 04 | Side window,green fixed,left rear door | IR | 1 | 51357067065 | $270.22 | Shop at ECS Tuning | ||||
| 04 | Side window,green fixed,right rear door | IR | 1 | 51357067066 | $270.22 | Shop at ECS Tuning | ||||
| For vehicles with Climate comfort laminated glass or Protective glazing |
S356A=Yes S357A=Yes |
|||||||||
| 04 | Side window,green fixed,left rear door | 1 | 51357067063 | $149.70 | Shop at ECS Tuning | |||||
| 04 | Side window,green fixed,right rear door | 1 | 51357067064 | $139.50 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 05 | Rear window green | 1 | 51317027080 | $426.98 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair kit, window glass, cold, 1 hour | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| For vehicles with National version China and DAB tuner |
L8AAA=No S654A=Yes |
|||||||||
| 05 | Rear window green | DAB | 1 | 51317173897 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair kit, window glass, cold, 1 hour | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| For vehicles with National version China and DAB tuner and Individual sunshade glazing |
L8AAA=No S654A=Yes S761A=Yes |
|||||||||
| 05 | Rear window green | VENUS-GRAU | 1 | 51317057412 | $556.09 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair kit, window glass, cold, 1 hour | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Climate comfort laminated glass and Protective glazing and DAB tuner |
L8AAA=No S356A=Yes S357A=Yes S654A=Yes |
|||||||||
| 05 | Rear window green | IR | 1 | 51317044719 | $1281.83 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair kit, window glass, cold, 1 hour | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
