Door window lifting mechanism front for BMW 5 Series E60 530i (2007)

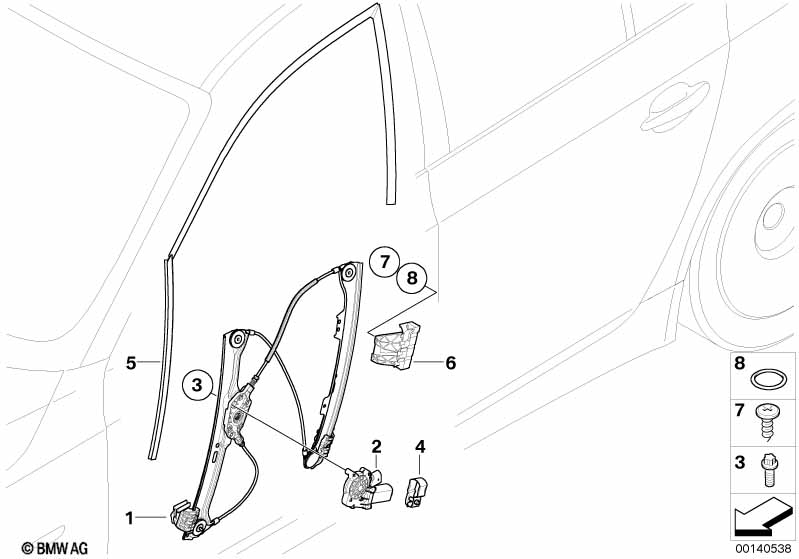

This Door window lifting mechanism front technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Window lifter without motor,front left | 1 | 51337184383 | $167.82 | Shop at ECS Tuning | |||||
| 01 | Window lifter without motor,front right | 1 | 51337184384 | $167.82 | Shop at ECS Tuning | |||||
| only applies to Right side of vehicle |
||||||||||
| 02 | Drive for window lifter, front | 1 | 09/2006 | 67626981142 | $147.05 | Shop at ECS Tuning | ||||
| only applies to Left side of vehicle |
||||||||||
| 02 | Drive for window lifter, front | 1 | 09/2006 | 67626981141 | $147.05 | Shop at ECS Tuning | ||||
| 03 | Torx bolt | M6X20 | 8 | 07147203315 | $0.44 | Shop at ECS Tuning | ||||
| 04 | Clamping bracket, front left | 1 | 09/2006 | 51337184387 | $9.03 | ENDED | Shop at ECS Tuning | |||
| 04 | Clamping bracket, front right | 1 | 09/2006 | 51337184388 | $9.03 | ENDED | Shop at ECS Tuning | |||
| 05 | Front left window guide | 1 | 51337033799 | $53.86 | Shop at ECS Tuning | |||||
| 05 | Front right window guide | 1 | 51337033800 | $53.86 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Climate comfort laminated glass or Protective glazing |
S356A=Yes S357A=Yes |
|||||||||
| 05 | Front left window guide | 1 | 51337057489 | $83.07 | Shop at ECS Tuning | |||||
| 05 | Front right window guide | 1 | 51337057490 | $83.07 | Shop at ECS Tuning | |||||
| 07 | Fillister head screw | 4 | 51457018351 | $0.52 | Shop at ECS Tuning | |||||
| 08 | Gasket ring | D=15,54 MM | 2 | 64508369241 | $1.25 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
