Trims and seals, door, rear for BMW 5 Series E60 530i (2007)

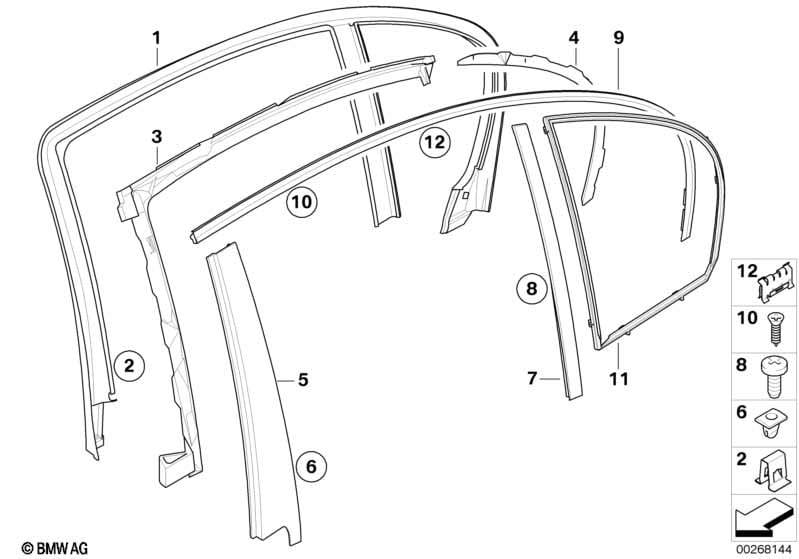

This Trims and seals, door, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover, window frame, door rear left | 1 | 51357033647 | $32.42 | Shop at ECS Tuning | |||||
| 01 | Cover, window frame, door rear right | 1 | 51357033648 | $32.42 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun visor, rear lateral |
S416A=Yes |
|||||||||
| 01 | Cover, window frame, door rear left | 1 | 51357067949 | $40.88 | Shop at ECS Tuning | |||||
| 01 | Cover, window frame, door rear right | 1 | 51357067950 | $40.88 | Shop at ECS Tuning | |||||
| 02 | Plug-in retainer | 4 | 07146957034 | $0.25 | Shop at ECS Tuning | |||||
| 03 | Seal, RL door closing plate | 1 | 51357033807 | $20.02 | Shop at ECS Tuning | |||||
| 03 | Seal, RR door closing plate | 1 | 51357033808 | $20.02 | Shop at ECS Tuning | |||||
| 04 | Seal, left side window closing plate | 1 | 51357033809 | $9.63 | Shop at ECS Tuning | |||||
| 04 | Seal, right side window closing plate | 1 | 51357033810 | $9.63 | Shop at ECS Tuning | |||||
| 05 | Finisher window frame B-pillar RL door | 1 | 51357033811 | $41.03 | Shop at ECS Tuning | |||||
| 05 | Finisher window frame B-pillar RR door | 1 | 51357033812 | $41.03 | Shop at ECS Tuning | |||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 05 | Finisher window frame B-pillar RL door | GLANZSCHWARZ | 1 | 51337898143 | $59.65 | Shop at ECS Tuning | ||||
| 05 | Finisher window frame B-pillar RR door | GLANZSCHWARZ | 1 | 51337898144 | $59.65 | Shop at ECS Tuning | ||||
| 06 | Expanding nut | 6 | 51337008408 | $0.47 | Shop at ECS Tuning | |||||
| 07 | Window guide web cover left | 1 | 51357033813 | $26.62 | Shop at ECS Tuning | |||||
| 07 | Window guide web cover right | 1 | 51357033814 | $26.62 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 07 | Window guide web cover left | GLANZSCHWARZ | 1 | 51357897675 | $50.38 | Shop at ECS Tuning | ||||
| 07 | Window guide web cover right | GLANZSCHWARZ | 1 | 51357897676 | $50.38 | ENDED | Shop at ECS Tuning | |||
| 08 | Screw, self tapping | 3,5X9,5 | 6 | 07119904455 | $2.45 | Shop at ECS Tuning | ||||
| 09 | Finisher, window frame, top, door rr lt | CHROM | 1 | 51357072889 | $86.20 | Shop at ECS Tuning | ||||
| 09 | Finisher, window frame, top, door rr rt | CHROM | 1 | 51357072890 | $86.20 | Shop at ECS Tuning | ||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 09 | Finisher, window frame, top, door rr lt | GLANZSCHWARZ | 1 | 51357897671 | $108.00 | Shop at ECS Tuning | ||||
| 09 | Finisher, window frame, top, door rr rt | GLANZSCHWARZ | 1 | 51357897672 | $108.00 | Shop at ECS Tuning | ||||
| For vehicles with Shadow-Line |
S339A=Yes |
|||||||||
| 09 | Finisher, window frame, top, door rr lt | SCHWARZ | 1 | 51357072887 | $42.62 | Shop at ECS Tuning | ||||
| 09 | Finisher, window frame, top, door rr rt | SCHWARZ | 1 | 51357072888 | $42.62 | Shop at ECS Tuning | ||||
| 10 | Sheet screw, black | ST4,2X13 | 6 | 07119901268 | $0.44 | Shop at ECS Tuning | ||||
| 11 | frame for fixed side window, left | 1 | 51357033645 | $21.83 | Shop at ECS Tuning | |||||
| 11 | frame for fixed side window, right | 1 | 51357033646 | $21.83 | Shop at ECS Tuning | |||||
| For vehicles with Climate comfort laminated glass or Protective glazing |
S356A=Yes S357A=Yes |
|||||||||
| 11 | frame for fixed side window, left | 1 | 51357067073 | $24.22 | Shop at ECS Tuning | |||||
| 11 | frame for fixed side window, right | 1 | 51357067074 | $24.22 | Shop at ECS Tuning | |||||
| 12 | Clamp | X | 51337072895 | $1.73 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
