Outside mirror for BMW 5 Series E60 530i (2007)

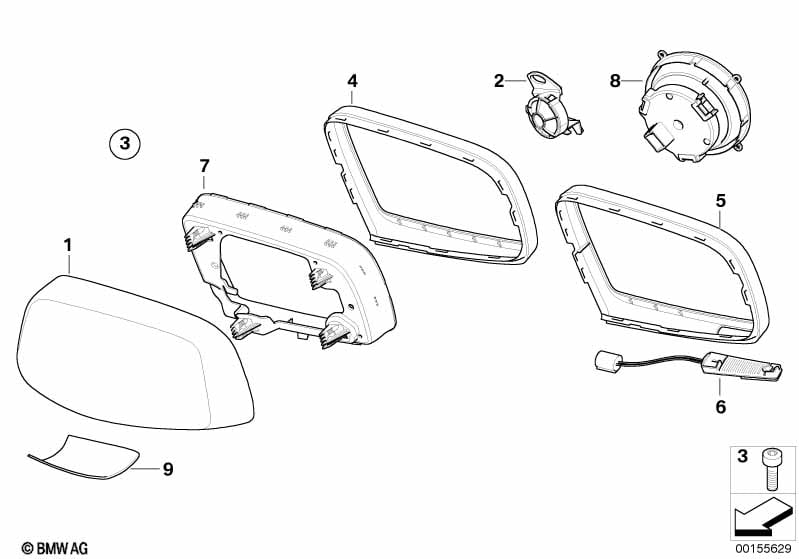

This Outside mirror technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover cap, primed, left | 1 | 08/2009 | 51167078359 | $73.33 | Shop at ECS Tuning | ||||
| 01 | Cover cap, primed, right | 1 | 08/2009 | 51167078360 | $73.33 | Shop at ECS Tuning | ||||
| When ordering indicate colour code | ||||||||||
| 01 | Cover cap, painted, left | CODE - UNI/MET. | 1 | 08/2009 | 51160300238 | $156.24 | ENDED | Shop at ECS Tuning | ||
| 01 | Cover cap, painted, right | CODE - UNI/MET. | 1 | 08/2009 | 51160300239 | $156.24 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Interior/outside mirror with auto dip |
S430A=Yes |
|||||||||
| 02 | Mirror electronics, left | LHD | 1 | 09/2005 | 08/2009 | 67136974452 | $163.22 | ENDED | Shop at ECS Tuning | |
| 02 | Mirror electronics, right | LHD | 1 | 09/2005 | 08/2009 | 67136974453 | $163.22 | ENDED | Shop at ECS Tuning | |
| 03 | Fillister head screw | 6 | 08/2009 | 07147196375 | $0.64 | Shop at ECS Tuning | ||||
| 04 | Supporting ring, black, left | 1 | 08/2009 | 51167074951 | $29.38 | ENDED | Shop at ECS Tuning | |||
| 04 | Supporting ring, black, right | 1 | 08/2009 | 51167074952 | $29.38 | ENDED | Shop at ECS Tuning | |||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 04 | Supporting ring, bright-black left | 1 | 08/2009 | 51167899271 | $63.76 | Shop at ECS Tuning | ||||
| 04 | Supporting ring, bright-black right | 1 | 08/2009 | 51167899272 | $63.76 | Shop at ECS Tuning | ||||
| For vehicles with Light package |
S563A=Yes |
|||||||||
| 05 | Supporting ring, black, left | 1 | 08/2009 | 51167074953 | $28.73 | ENDED | Shop at ECS Tuning | |||
| 05 | Supporting ring, black, right | 1 | 08/2009 | 51167074954 | $28.73 | Shop at ECS Tuning | ||||
| For vehicles with Light package and High gloss shadow line |
S563A=Yes S760A=Yes |
|||||||||
| 05 | Supporting ring, bright-black left | 1 | 08/2009 | 51167898179 | $104.29 | Shop at ECS Tuning | ||||
| 05 | Supporting ring, bright-black right | 1 | 08/2009 | 51167898180 | $104.29 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Light package |
S563A=Yes |
|||||||||
| 06 | Lamp outside mirror, left | 1 | 08/2009 | 63316913277 | $93.38 | Shop at ECS Tuning | ||||
| 06 | Lamp outside mirror, right | 1 | 08/2009 | 63316913278 | $93.38 | Shop at ECS Tuning | ||||
| 07 | Tray, left | 1 | 08/2009 | 51167174965 | $25.63 | Shop at ECS Tuning | ||||
| 07 | Tray, right | 1 | 08/2009 | 51167174966 | $25.63 | Shop at ECS Tuning | ||||
| For vehicles with National version Japan |
L807A=Yes |
|||||||||
| 08 | Drive, exterior mirror, LIN bus | 2 | 67137191398 | $163.22 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory or Seat adjustment, electric, with memory |
S456A=Yes S459A=Yes |
|||||||||
| 08 | Drive, outside Memory mirror | 2 | 67137191406 | $159.80 | Shop at ECS Tuning | |||||
| 08 | Drive, outside Memory mirror | 2 | 67135B44038 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Comfort seat with memory and Seat adjustment, electric, with memory and Light package |
S430A=Yes S456A=Yes S459A=No S563A=Yes |
|||||||||
| 08 | Drive, exterior mirror, LIN bus | 2 | 67137191398 | $163.22 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Comfort seat with memory and Seat adjustment, electric, with memory and Light package |
S430A=Yes S456A=Yes S459A=No S563A=No |
|||||||||
| 08 | Drive, exterior mirror, LIN bus | 2 | 67137191398 | $163.22 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Comfort seat with memory and Seat adjustment, electric, with memory and Light package |
S430A=Yes S456A=No S459A=Yes S563A=Yes |
|||||||||
| 08 | Drive, exterior mirror, LIN bus | 2 | 67137191398 | $163.22 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Comfort seat with memory and Seat adjustment, electric, with memory and Light package |
S430A=Yes S456A=No S459A=No S563A=Yes |
|||||||||
| 08 | Drive, exterior mirror, LIN bus | 2 | 67137191398 | $163.22 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Comfort seat with memory and Seat adjustment, electric, with memory and Light package |
S430A=No S456A=Yes S459A=No S563A=Yes |
|||||||||
| 08 | Drive, exterior mirror, LIN bus | 2 | 67137191398 | $163.22 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Comfort seat with memory and Seat adjustment, electric, with memory and Light package |
S430A=No S456A=No S459A=Yes S563A=Yes |
|||||||||
| 08 | Drive, exterior mirror, LIN bus | 2 | 67137191398 | $163.22 | Shop at ECS Tuning | |||||
| 09 | Set of covers mirror baseplate | 1 | 08/2009 | 51167179081 | $12.76 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
