Underbonnet screen for BMW 1 Series E87 118d

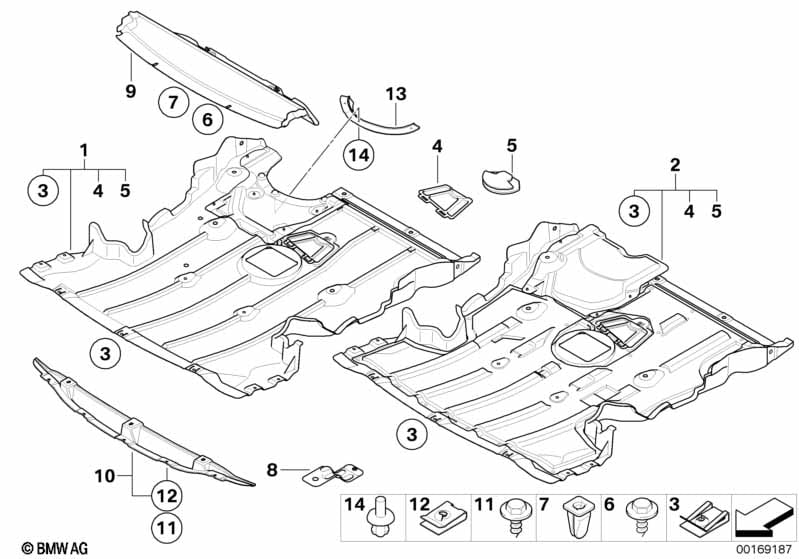

This Underbonnet screen technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 118d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Underride protection, national variants |
S8SDA=No |
||||||||
| 02 | Underbonnet screen | 1 | 51717059384 | Shop at ECS Tuning | ||||||
| 03 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 3 | 07147154447 | $0.27 | Shop at ECS Tuning | ||||
| 04 | Cover, engine compartment screening | 1 | 51757140983 | $6.91 | Shop at ECS Tuning | |||||
| 05 | Rotary clip | 1 | 51757163899 | $1.44 | Shop at ECS Tuning | |||||
| 06 | Hexagon sheet-metal bolt | ST6,3X16-R-U2-Z | 2 | 07119905017 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Hex head screw with washer | ST4,8X16MM | 17 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Expanding nut | L=15MM, DMAX=12 | 8 | 07146976114 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Engine compartment protection bracket | 2 | 51757128501 | $6.74 | Shop at ECS Tuning | |||||
| 09 | Radiator seal | 1 | 51717128502 | $27.68 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 10 | Interm. piece engine compartm. shielding | 1 | 09/2005 | 51757906821 | Shop at ECS Tuning | |||||
| 11 | Hex head screw | ST4,8X16-ZNS3 | 5 | 09/2005 | 07119901299 | $0.25 | Shop at ECS Tuning | |||
| 12 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 5 | 09/2005 | 07146951655 | $0.20 | Shop at ECS Tuning | |||
