Roller sun visor, rear door for BMW 5 Series E60 LCI 520d (2006)

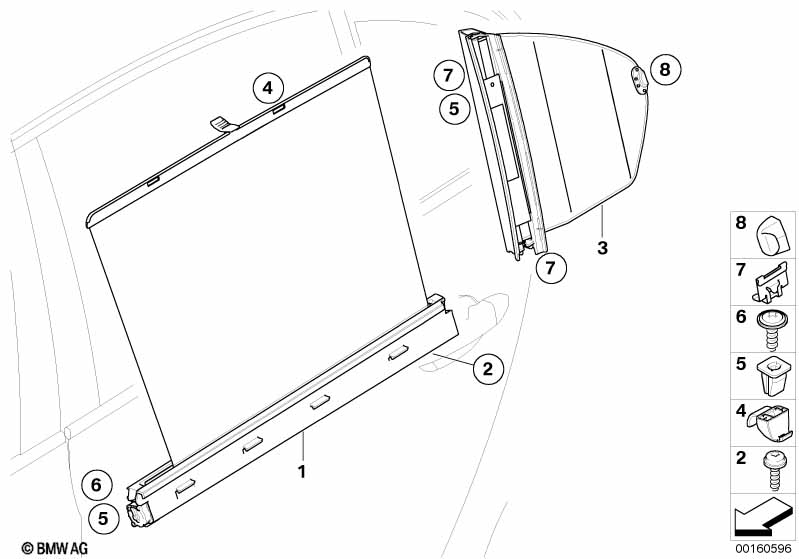

This Roller sun visor, rear door technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Roller sun visor, rear lateral or Roller sun visor, rear door |
S416A=Yes S417A=Yes |
||||||||
| 01 | Left rear door sun blind | 1 | 51356984645 | $219.79 | ENDED | Shop at ECS Tuning | ||||
| 01 | Right rear door sun blind | 1 | 51356984646 | $219.79 | Shop at ECS Tuning | |||||
| 02 | Fillister head screw | 4 | 07147120341 | $2.25 | Shop at ECS Tuning | |||||
| 03 | Roller sun screen,triangular window left | 1 | 51356984649 | $117.84 | ENDED | Shop at ECS Tuning | ||||
| 03 | Sun blind, triangular window right | 1 | 51356984650 | $117.84 | ENDED | Shop at ECS Tuning | ||||
| 04 | Side window sun blind hook | SCHWARZ | 4 | 51168193949 | $2.78 | Shop at ECS Tuning | ||||
| 05 | Expanding nut | 4 | 51161943152 | $0.50 | Shop at ECS Tuning | |||||
| 06 | Fillister head self-tapping screw | ST4,2X19 | 4 | 07119904431 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Clamp | 8 | 51427071120 | $0.63 | Shop at ECS Tuning | |||||
| 08 | Fixed sun blind hook | SCHWARZ | 1 | 51167110585 | $4.51 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
