Panel/insulation, engine compartment for BMW 3 Series E90 LCI 335d

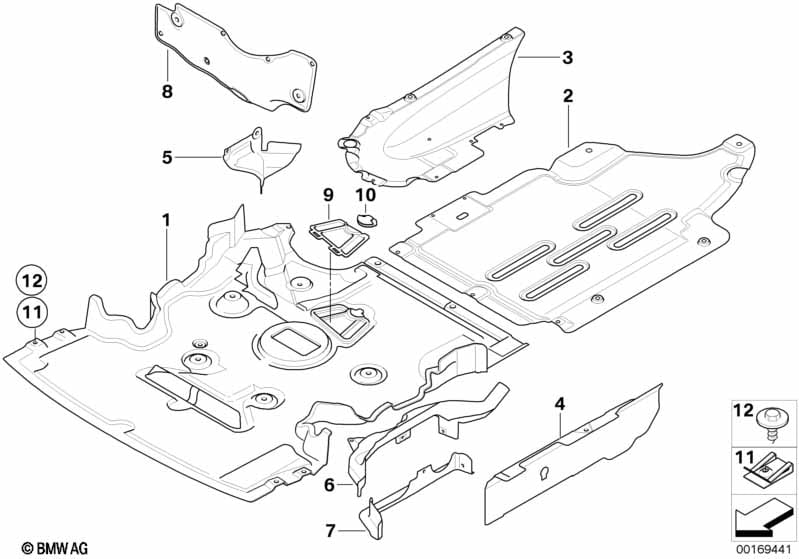

This Panel/insulation, engine compartment technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 335d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Underbonnet screen | 1 | 51757205471 | $129.97 | Shop at ECS Tuning | |||||
| 02 | Underfloor coating center | 1 | 51757205472 | $78.51 | Shop at ECS Tuning | |||||
| 03 | Underfloor coating center | 1 | 51757117409 | $78.51 | Shop at ECS Tuning | |||||
| 04 | Sound insulating left | 1 | 51757211877 | Shop at ECS Tuning | ||||||
| 04 | Sound insulating right | 1 | 51757211878 | ENDED | Shop at ECS Tuning | |||||
| 05 | Sound insulation,engine compartm.,cent | 1 | 51757211874 | ENDED | Shop at ECS Tuning | |||||
| 06 | Sound insulation, centre left | 1 | 51757211881 | ENDED | Shop at ECS Tuning | |||||
| 06 | Sound insulation, centre right | 1 | 51757211882 | ENDED | Shop at ECS Tuning | |||||
| 07 | Sound insulation, engine compartm., left | 1 | 51757211883 | Shop at ECS Tuning | ||||||
| 07 | Sound insulation,engine compartm.,right | 1 | 51757211884 | Shop at ECS Tuning | ||||||
| 08 | Sound insulation, bulkhead, right | 1 | 51487205460 | ENDED | Shop at ECS Tuning | |||||
| 09 | Cover, engine compartment screening | 1 | 51757140983 | $6.91 | Shop at ECS Tuning | |||||
| 10 | Rotary clip | 1 | 51757163899 | $1.44 | Shop at ECS Tuning | |||||
| 11 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 9 | 07147154447 | $0.27 | Shop at ECS Tuning | ||||
| 11 | C-clip nut, self-locking | TS5 | 9 | 07147330002 | Shop at ECS Tuning | |||||
| 12 | Hex head screw with washer | ST4,8X16MM | 4 | 07147129160 | $0.36 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
