Outside mirror for BMW 5 Series F10 530dX (2013)

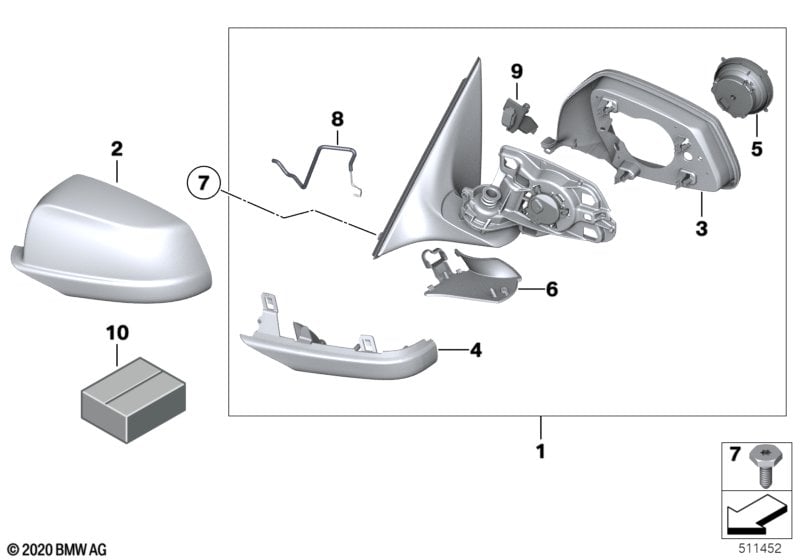

This Outside mirror technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 530dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important: On model M550d caps exterior mirror always painted in ferricgrey (B55) - regardless of the car colour. For vehicles with M Sports package and Indiv. Ext. Line, burnished aluminium and High gloss shadow line and vehicles produced from 01.01.2010 to 03.09.2012 |
P337A=No S3MBA=No S760A=No |
||||||||
| For vehicles with Interior/outside mirror with auto dip and Lane change warning and Surround View and High gloss shadow line |
S430A=No S5AGA=Yes S5DLA=No S760A=No |
|||||||||
| 01 | Exterior mirror w/o glass, heated, left | 1 | 51167283515 | Shop at ECS Tuning | ||||||
| 01 | Outside mirror w/out glass heated right | 1 | 51167283516 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Lane change warning and Surround View and High gloss shadow line |
S430A=Yes S5AGA=Yes S5DLA=Yes S760A=No |
|||||||||
| 01 | Exterior mirror w/o glass, heated, left | 1 | 51167283535 | Shop at ECS Tuning | ||||||
| 01 | Outside mirror w/out glass heated right | 1 | 51167283536 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Lane change warning and Surround View and High gloss shadow line |
S430A=Yes S5AGA=Yes S5DLA=No S760A=No |
|||||||||
| 01 | Exterior mirror w/o glass, heated, left | 1 | 51167283527 | Shop at ECS Tuning | ||||||
| 01 | Outside mirror w/out glass heated right | 1 | 51167283528 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Lane change warning and Surround View and High gloss shadow line |
S430A=No S5AGA=Yes S5DLA=Yes S760A=No |
|||||||||
| 01 | Exterior mirror w/o glass, heated, left | 1 | 51167283523 | Shop at ECS Tuning | ||||||
| 01 | Outside mirror w/out glass heated right | 1 | 51167283524 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Lane change warning and Surround View and High gloss shadow line |
S430A=No S5AGA=No S5DLA=Yes S760A=No |
|||||||||
| 01 | Exterior mirror w/o glass, heated, left | 1 | 51167283519 | Shop at ECS Tuning | ||||||
| 01 | Outside mirror w/out glass heated right | 1 | 51167283520 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Lane change warning and Surround View and High gloss shadow line |
S430A=Yes S5AGA=No S5DLA=Yes S760A=No |
|||||||||
| 01 | Exterior mirror w/o glass, heated, left | 1 | 51167283531 | Shop at ECS Tuning | ||||||
| 01 | Outside mirror w/out glass heated right | 1 | 51167283532 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Lane change warning and Surround View and High gloss shadow line |
S430A=Yes S5AGA=No S5DLA=No S760A=No |
|||||||||
| 01 | Exterior mirror w/o glass, heated, left | 1 | 51167283611 | Shop at ECS Tuning | ||||||
| 01 | Outside mirror w/out glass heated right | 1 | 51167283612 | Shop at ECS Tuning | ||||||
| For vehicles with Lane change warning or Surround View |
S5AGA=Yes S5DLA=Yes |
|||||||||
| 02 | Outside mirror cover cap, primed, left | 1 | 51167187431 | $51.32 | Shop at ECS Tuning | |||||
| 02 | Outside mirror cover cap, primed, right | 1 | 51167187432 | $51.32 | Shop at ECS Tuning | |||||
| For vehicles with Lane change warning or Surround View When ordering indicate colour code |
S5AGA=Yes S5DLA=Yes |
|||||||||
| 02 | Outside mirror covering cap,painted left | CODE - UNI/MET. | 1 | 51112182434 | ENDED | Shop at ECS Tuning | ||||
| 02 | Outside mirror covering cap,painted rig. | CODE - UNI/MET. | 1 | 51112182435 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Reversing camera and Top View and Lane change warning and High gloss shadow line |
S3AHA=Yes S5AGA=Yes S760A=No |
|||||||||
| 03 | Supporting ring left | 1 | 51167266029 | $32.20 | Shop at ECS Tuning | |||||
| 03 | Supporting ring right | 1 | 51167266030 | $32.20 | Shop at ECS Tuning | |||||
| For vehicles with Reversing camera and Top View and Lane change warning and High gloss shadow line |
S3AHA=No S5AGA=Yes S760A=No |
|||||||||
| 03 | Supporting ring left | 1 | 51167266029 | $32.20 | Shop at ECS Tuning | |||||
| 03 | Supporting ring right | 1 | 51167266030 | $32.20 | Shop at ECS Tuning | |||||
| For vehicles with Reversing camera and Top View and Lane change warning and Surround View and High gloss shadow line |
S3AHA=Yes S5AGA=No S5DLA=Yes S760A=No |
|||||||||
| 03 | Supporting ring left | 1 | 51167266027 | $31.75 | Shop at ECS Tuning | |||||
| 03 | Supporting ring right | 1 | 51167266028 | $31.75 | Shop at ECS Tuning | |||||
| For vehicles with Reversing camera and Top View and Lane change warning and Surround View and High gloss shadow line |
S3AHA=Yes S5AGA=No S5DLA=No S760A=No |
|||||||||
| 03 | Supporting ring left | 1 | 51167266027 | $31.75 | Shop at ECS Tuning | |||||
| 03 | Supporting ring right | 1 | 51167266028 | $31.75 | Shop at ECS Tuning | |||||
| For vehicles with Reversing camera and Top View and Lane change warning and Surround View and High gloss shadow line |
S3AHA=No S5AGA=No S5DLA=Yes S760A=No |
|||||||||
| 03 | Supporting ring left | 1 | 51167266027 | $31.75 | Shop at ECS Tuning | |||||
| 03 | Supporting ring right | 1 | 51167266028 | $31.75 | Shop at ECS Tuning | |||||
| 04 | Lower housing section, left | 1 | 51167266035 | $26.55 | Shop at ECS Tuning | |||||
| 04 | Lower housing section, right | 1 | 51167266036 | $26.57 | Shop at ECS Tuning | |||||
| For vehicles with Surround View |
S5DLA=Yes |
|||||||||
| 04 | Lower housing section, left | KAMERA | 1 | 51167266375 | Shop at ECS Tuning | |||||
| 04 | Lower housing section, right | KAMERA | 1 | 51167266376 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Comfort seat with memory and Seat adjustment, electric, with memory |
S430A=No S456A=No S459A=No |
|||||||||
| 05 | Drive, outside mirror left | 1 | 67137232743 | $84.48 | Shop at ECS Tuning | |||||
| 05 | Drive, outside mirror right | 1 | 67137232744 | $84.48 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Comfort seat with memory and Seat adjustment, electric, with memory |
S430A=Yes S456A=Yes S459A=Yes |
|||||||||
| 05 | Drive, exterior mirror, LIN bus | 2 | 67137191398 | $163.22 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Comfort seat with memory and Seat adjustment, electric, with memory |
S430A=Yes S456A=Yes S459A=No |
|||||||||
| 05 | Drive, exterior mirror, LIN bus | 2 | 67137191398 | $163.22 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Comfort seat with memory and Seat adjustment, electric, with memory |
S430A=Yes S456A=No S459A=Yes |
|||||||||
| 05 | Drive, exterior mirror, LIN bus | 2 | 67137191398 | $163.22 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Comfort seat with memory and Seat adjustment, electric, with memory |
S430A=Yes S456A=No S459A=No |
|||||||||
| 05 | Drive, exterior mirror, LIN bus | 2 | 67137191398 | $163.22 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Comfort seat with memory and Seat adjustment, electric, with memory |
S430A=No S456A=Yes S459A=Yes |
|||||||||
| 05 | Drive, exterior mirror, LIN bus | 2 | 67137191398 | $163.22 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Comfort seat with memory and Seat adjustment, electric, with memory |
S430A=No S456A=Yes S459A=No |
|||||||||
| 05 | Drive, exterior mirror, LIN bus | 2 | 67137191398 | $163.22 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Comfort seat with memory and Seat adjustment, electric, with memory |
S430A=No S456A=No S459A=Yes |
|||||||||
| 05 | Drive, exterior mirror, LIN bus | 2 | 67137191398 | $163.22 | Shop at ECS Tuning | |||||
| 06 | Set of covers mirror baseplate | 1 | 51167208693 | Shop at ECS Tuning | ||||||
| 07 | Hexagon screw/washer assembly | M6X16 | 6 | 07147175594 | Shop at ECS Tuning | |||||
| 08 | Cable set, electr. ext. mirror, right | 1 | 67137232746 | Shop at ECS Tuning | ||||||
| 08 | Cable set, electr. ext. mirror, left | 1 | 67137232747 | Shop at ECS Tuning | ||||||
| 09 | Lane change warning light left | 1 | 51167349207 | Shop at ECS Tuning | ||||||
| 09 | Lane change warning light right | 1 | 51167349208 | Shop at ECS Tuning | ||||||
| 10 | Repair kit cable exterior mirror | 1 | 61359853372 | Shop at ECS Tuning | ||||||
