Trim panel, trunk lid for BMW 5 Series F11 520d (2013)

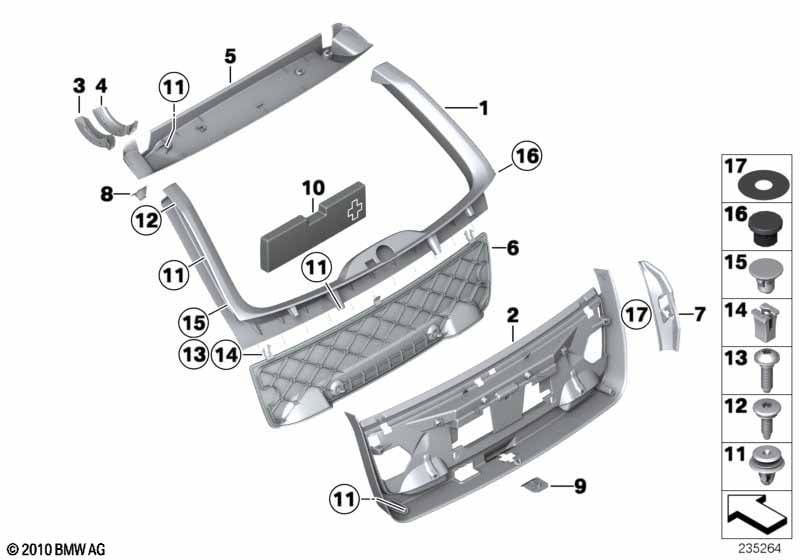

This Trim panel, trunk lid technical drawing provides a detailed breakdown of the assembly for the 5 Series F11 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Headlining anthracite or Roofliner Alcantara anthracite |
S775A=Yes S776A=Yes |
|||||||||
| 01 | Interior upper trunk lid trim panel | SCHWARZ | 1 | 51497231786 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and anthracite or everest-grau or zimt-braun or black |
S775A=No S776A=No AT=Yes DE=Yes EZ=Yes SW=Yes |
|||||||||
| 01 | Interior upper trunk lid trim panel | EVERESTGRAU | 1 | 51497231792 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and cardinal-rot or oyster or Veneto-beige or oyster/oyster |
S775A=No S776A=No CF=Yes CX=Yes DF=Yes DH=Yes |
|||||||||
| 01 | Interior upper trunk lid trim panel | OYSTER | 1 | 51497231791 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite or Roofliner Alcantara anthracite |
S775A=Yes S776A=Yes |
|||||||||
| 02 | Lower tail lid trim panel | SCHWARZ | 1 | 51497234783 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism or Comfort access and oyster/oyster |
S316A=Yes S322A=Yes DH=Yes |
|||||||||
| 02 | Lower tail lid trim panel | OYSTER | 1 | 51497237881 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and oyster/oyster |
S775A=No S776A=No DH=Yes |
|||||||||
| 02 | Lower tail lid trim panel | OYSTER | 1 | 51497234787 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism or Comfort access and everest-grau |
S316A=Yes S322A=Yes DE=Yes |
|||||||||
| 02 | Lower tail lid trim panel | EVERESTGRAU | 1 | 51497237879 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and Veneto-beige |
S775A=No S776A=No DF=Yes |
|||||||||
| 02 | Lower tail lid trim panel | VENETOBEIGE | 1 | 51497234784 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism or Comfort access and Veneto-beige |
S316A=Yes S322A=Yes DF=Yes |
|||||||||
| 02 | Lower tail lid trim panel | VENETOBEIGE | 1 | 51497237880 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and everest-grau |
S775A=No S776A=No DE=Yes |
|||||||||
| 02 | Lower tail lid trim panel | EVERESTGRAU | 1 | 51497234786 | NoS | Shop at ECS Tuning | ||||
| For vehicles with automatic trunk lid mechanism and Comfort access and Headlining anthracite and Roofliner Alcantara anthracite |
S316A=Yes S322A=Yes S775A=Yes S776A=No |
|||||||||
| 02 | Lower tail lid trim panel | SCHWARZ | 1 | 51497237882 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism and Comfort access and Headlining anthracite and Roofliner Alcantara anthracite |
S316A=Yes S322A=Yes S775A=No S776A=Yes |
|||||||||
| 02 | Lower tail lid trim panel | SCHWARZ | 1 | 51497237882 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism and Comfort access and Headlining anthracite and Roofliner Alcantara anthracite |
S316A=Yes S322A=No S775A=Yes S776A=No |
|||||||||
| 02 | Lower tail lid trim panel | SCHWARZ | 1 | 51497237882 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism and Comfort access and Headlining anthracite and Roofliner Alcantara anthracite |
S316A=Yes S322A=No S775A=No S776A=Yes |
|||||||||
| 02 | Lower tail lid trim panel | SCHWARZ | 1 | 51497237882 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism and Comfort access and Headlining anthracite and Roofliner Alcantara anthracite |
S316A=No S322A=Yes S775A=Yes S776A=No |
|||||||||
| 02 | Lower tail lid trim panel | SCHWARZ | 1 | 51497237882 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism and Comfort access and Headlining anthracite and Roofliner Alcantara anthracite |
S316A=No S322A=Yes S775A=No S776A=Yes |
|||||||||
| 02 | Lower tail lid trim panel | SCHWARZ | 1 | 51497237882 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism or Comfort access and anthracite or oyster or zimt-braun or black |
S316A=Yes S322A=Yes AT=Yes CX=Yes EZ=Yes SW=Yes |
|||||||||
| 02 | Lower tail lid trim panel | SCHWARZ | 1 | 51497237882 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and anthracite or oyster or zimt-braun or black |
S775A=No S776A=No AT=Yes CX=Yes EZ=Yes SW=Yes |
|||||||||
| 02 | Lower tail lid trim panel | SCHWARZ | 1 | 51497234783 | Shop at ECS Tuning | |||||
| 03 | Left hinge cover | 1 | 51497222167 | Shop at ECS Tuning | ||||||
| 03 | Right hinge cover | 1 | 51497222168 | Shop at ECS Tuning | ||||||
| 04 | Cover, hinge, inside left | 1 | 51497222169 | Shop at ECS Tuning | ||||||
| 04 | Cover, hinge, inside right | 1 | 51497222170 | Shop at ECS Tuning | ||||||
| For vehicles with Headlining anthracite or Roofliner Alcantara anthracite |
S775A=Yes S776A=Yes |
|||||||||
| 05 | Panel, rear window, top | SCHWARZ | 1 | 51497844015 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and anthracite or everest-grau or zimt-braun or black |
S775A=No S776A=No AT=Yes DE=Yes EZ=Yes SW=Yes |
|||||||||
| 05 | Panel, rear window, top | EVERESTGRAU | 1 | 51497234780 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and cardinal-rot or oyster or Veneto-beige or oyster/oyster |
S775A=No S776A=No CF=Yes CX=Yes DF=Yes DH=Yes |
|||||||||
| 05 | Panel, rear window, top | OYSTER | 1 | 51497234781 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite or Roofliner Alcantara anthracite |
S775A=Yes S776A=Yes |
|||||||||
| 06 | Cover, rear light, trunk lid | ANTHRAZIT | 1 | 51497234788 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and oyster/oyster |
S775A=No S776A=No DH=Yes |
|||||||||
| 06 | Cover, rear light, trunk lid | OYSTER | 1 | 51497234791 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and Veneto-beige |
S775A=No S776A=No DF=Yes |
|||||||||
| 06 | Cover, rear light, trunk lid | VENETOBEIGE | 1 | 51497234789 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and everest-grau |
S775A=No S776A=No DE=Yes |
|||||||||
| 06 | Cover, rear light, trunk lid | EVERESTGRAU | 1 | 51497234790 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and anthracite or oyster or zimt-braun or black |
S775A=No S776A=No AT=Yes CX=Yes EZ=Yes SW=Yes |
|||||||||
| 06 | Cover, rear light, trunk lid | ANTHRAZIT | 1 | 51497234788 | Shop at ECS Tuning | |||||
| 07 | Gutter strip, left | 1 | 51497233879 | Shop at ECS Tuning | ||||||
| 07 | Gutter strip, right | 1 | 51497233880 | Shop at ECS Tuning | ||||||
| 08 | Left hinge cover | 1 | 51497260815 | Shop at ECS Tuning | ||||||
| 08 | Right hinge cover | 1 | 51497260816 | Shop at ECS Tuning | ||||||
| For vehicles with Headlining anthracite or Roofliner Alcantara anthracite |
S775A=Yes S776A=Yes |
|||||||||
| 09 | Trim panel, striker | SCHWARZ | 1 | 51247266426 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and oyster/oyster |
S775A=No S776A=No DH=Yes |
|||||||||
| 09 | Trim panel, striker | OYSTER | 1 | 51247266425 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and Veneto-beige |
S775A=No S776A=No DF=Yes |
|||||||||
| 09 | Trim panel, striker | VENETOBEIGE | 1 | 51247266424 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and everest-grau |
S775A=No S776A=No DE=Yes |
|||||||||
| 09 | Trim panel, striker | EVERESTGRAU | 1 | 51247266423 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and Cloth "Chequered" or Cloth/leather Cord or anthracite or oyster or zimt-braun or black |
S775A=No S776A=No AT=Yes CX=Yes AT=Yes CX=Yes EZ=Yes SW=Yes |
|||||||||
| 09 | Trim panel, striker | SCHWARZ | 1 | 51247266426 | Shop at ECS Tuning | |||||
| For vehicles with Warning triangle and first aid kit |
S428A=Yes |
|||||||||
| 10 | First aid kit pouch, black | 1 | 51498270015 | Shop at ECS Tuning | ||||||
| 11 | Clip, grey | X | 07147293811 | Shop at ECS Tuning | ||||||
| 12 | Screw | 4 | 08/2019 | 07147233972 | Shop at ECS Tuning | |||||
| 12 | Countersunk screw | 4 | 07148831000 | Shop at ECS Tuning | ||||||
| 13 | Fillister head screw with collar | 4 | 07147143279 | $0.38 | Shop at ECS Tuning | |||||
| 14 | Expanding nut | 4 | 07146974274 | $3.75 | Shop at ECS Tuning | |||||
| 15 | Clip | 2 | 07147236400 | Shop at ECS Tuning | ||||||
| 16 | Stop buffer | 2 | 51177002801 | $1.13 | Shop at ECS Tuning | |||||
| 17 | Paint protection foil | 4 | 51777247902 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
