Rear window shelf for BMW 5 Series F10 LCI 520d (2013)

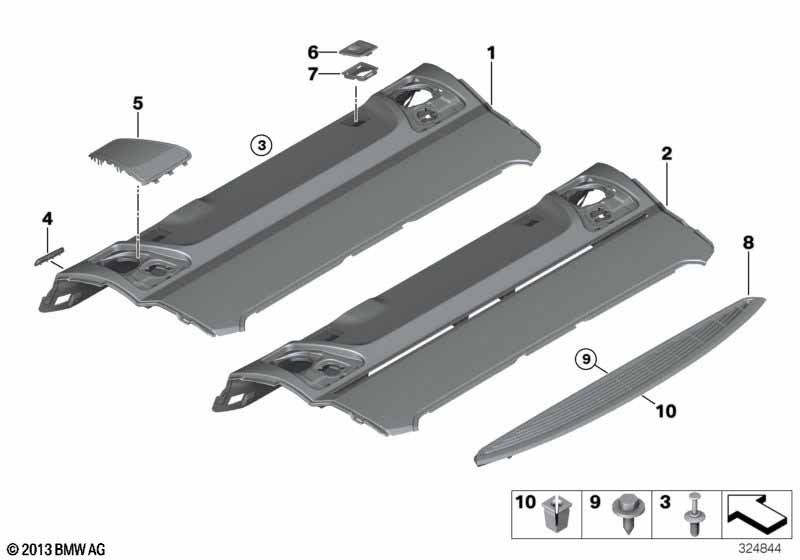

This Rear window shelf technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The aperture for the 3rd Top Tether and the through-loading aperture in the storage shelf can be reworked if necessary. A perforation is provided on the reverse side of the storage shelf. |
|||||||||
| For vehicles with Sun-blind, rear and Headlining anthracite |
S415A=No S775A=Yes |
|||||||||
| 01 | Parcel shelf, rear | ANTHRAZIT | 1 | 51468038183 | +core | Shop at ECS Tuning | ||||
| For vehicles with Sun-blind, rear and Roofliner Alcantara anthracite |
S415A=No S776A=Yes |
|||||||||
| 01 | Parcel shelf, rear | ALCANTARA | 1 | 51468038144 | +core | Shop at ECS Tuning | ||||
| For vehicles with Sun-blind, rear and Headlining anthracite and Roofliner Alcantara anthracite and Veneto-beige or Veneto beige exclusive seam |
S415A=No S775A=No S776A=No DF=Yes LY=Yes |
|||||||||
| 01 | Parcel shelf, rear | VENETOBEIGE | 1 | 51469197234 | Shop at ECS Tuning | |||||
| For vehicles with Sun-blind, rear and Headlining anthracite and Roofliner Alcantara anthracite and elfenbein-weiss/oyster exclusive seam or elfenbein-weiss/oyster exclusive seam or oyster exclusive seam or oyster exclusive seam |
S415A=No S775A=No S776A=No EO=Yes EU=Yes OT=Yes OU=Yes |
|||||||||
| 01 | Parcel shelf, rear | OYSTER | 1 | 51469197235 | Shop at ECS Tuning | |||||
| For vehicles with Sun-blind, rear and Headlining anthracite and Roofliner Alcantara anthracite and anthracite or elfenbein-weiss/oyster exclusive seam or zimt-braun or anthracite or black exclusive seam or mocha or oyster exclusive seam or black exclusive seam or black |
S415A=No S775A=No S776A=No AT=Yes ET=Yes EZ=Yes IZ=Yes LZ=Yes MW=Yes OX=Yes SJ=Yes SW=Yes |
|||||||||
| 01 | Parcel shelf, rear | ANTHRAZIT | 1 | 51469173452 | Shop at ECS Tuning | |||||
| For vehicles with Sun-blind, rear and Roofliner Alcantara anthracite |
S415A=Yes S776A=Yes |
|||||||||
| 02 | Parcel shelf, rear | ALCANTARA | 1 | 51468038146 | +core | Shop at ECS Tuning | ||||
| For vehicles with Sun-blind, rear and Headlining anthracite |
S415A=Yes S775A=Yes |
|||||||||
| 02 | Parcel shelf, rear | ANTHRAZIT | 1 | 51468038184 | +core | Shop at ECS Tuning | ||||
| For vehicles with Sun-blind, rear and Headlining anthracite and Roofliner Alcantara anthracite and Veneto-beige or Veneto beige exclusive seam |
S415A=Yes S775A=No S776A=No DF=Yes LY=Yes |
|||||||||
| 02 | Parcel shelf, rear | VENETOBEIGE | 1 | 51469197286 | Shop at ECS Tuning | |||||
| For vehicles with Sun-blind, rear and Headlining anthracite and Roofliner Alcantara anthracite and elfenbein-weiss/oyster exclusive seam or elfenbein-weiss/oyster exclusive seam or oyster exclusive seam or oyster exclusive seam |
S415A=Yes S775A=No S776A=No EO=Yes EU=Yes OT=Yes OU=Yes |
|||||||||
| 02 | Parcel shelf, rear | OYSTER | 1 | 51469197287 | Shop at ECS Tuning | |||||
| For vehicles with Sun-blind, rear and Headlining anthracite and Roofliner Alcantara anthracite and anthracite or elfenbein-weiss/oyster exclusive seam or zimt-braun or anthracite or black exclusive seam or mocha or oyster exclusive seam or black exclusive seam or black |
S415A=Yes S775A=No S776A=No AT=Yes ET=Yes EZ=Yes IZ=Yes LZ=Yes MW=Yes OX=Yes SJ=Yes SW=Yes |
|||||||||
| 02 | Parcel shelf, rear | ANTHRAZIT | 1 | 51469173451 | Shop at ECS Tuning | |||||
| 03 | Expanding rivet | D = 6MM | 5 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite or Roofliner Alcantara anthracite |
S775A=Yes S776A=Yes |
|||||||||
| 04 | Cover, belt outlet | SCHWARZ | 3 | 51469173448 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and Veneto-beige or Veneto beige exclusive seam |
S775A=No S776A=No DF=Yes LY=Yes |
|||||||||
| 04 | Cover, belt outlet | VENETOBEIGE | 3 | 51469196130 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and elfenbein-weiss/oyster exclusive seam or elfenbein-weiss/oyster exclusive seam or oyster exclusive seam or oyster exclusive seam |
S775A=No S776A=No EO=Yes EU=Yes OT=Yes OU=Yes |
|||||||||
| 04 | Cover, belt outlet | OYSTER | 3 | 51469196132 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and anthracite or elfenbein-weiss/oyster exclusive seam or zimt-braun or anthracite or black exclusive seam or mocha or oyster exclusive seam or black exclusive seam or black |
S775A=No S776A=No AT=Yes ET=Yes EZ=Yes IZ=Yes LZ=Yes MW=Yes OX=Yes SJ=Yes SW=Yes |
|||||||||
| 04 | Cover, belt outlet | SCHWARZ | 3 | 51469173448 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and Veneto-beige or Veneto beige exclusive seam |
S775A=No S776A=No DF=Yes LY=Yes |
|||||||||
| 05 | Cover f right loudspeaker | VENETOBEIGE | 1 | 51469179868 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon surround sound system and Bang&Olufsen High End Surround Sound and Headlining anthracite and Roofliner Alcantara anthracite |
S688A=No S6F2A=Yes S775A=Yes S776A=Yes |
|||||||||
| 05 | Cover f left loudspeaker | SCHWARZ | 1 | 65139276541 | +core | Shop at ECS Tuning | ||||
| 05 | Cover f right loudspeaker | SCHWARZ | 1 | 65139276542 | +core | Shop at ECS Tuning | ||||
| For vehicles with Harman/Kardon surround sound system and Bang&Olufsen High End Surround Sound and Headlining anthracite and Roofliner Alcantara anthracite |
S688A=No S6F2A=Yes S775A=Yes S776A=No |
|||||||||
| 05 | Cover f left loudspeaker | SCHWARZ | 1 | 65139276541 | +core | Shop at ECS Tuning | ||||
| 05 | Cover f right loudspeaker | SCHWARZ | 1 | 65139276542 | +core | Shop at ECS Tuning | ||||
| For vehicles with Harman/Kardon surround sound system and Bang&Olufsen High End Surround Sound and Headlining anthracite and Roofliner Alcantara anthracite |
S688A=No S6F2A=Yes S775A=No S776A=Yes |
|||||||||
| 05 | Cover f left loudspeaker | SCHWARZ | 1 | 65139276541 | +core | Shop at ECS Tuning | ||||
| 05 | Cover f right loudspeaker | SCHWARZ | 1 | 65139276542 | +core | Shop at ECS Tuning | ||||
| For vehicles with Harman/Kardon surround sound system and Bang&Olufsen High End Surround Sound and Headlining anthracite and Roofliner Alcantara anthracite |
S688A=Yes S6F2A=No S775A=Yes S776A=Yes |
|||||||||
| 05 | Cover f left loudspeaker | SCHWARZ | 1 | 51469157389 | Shop at ECS Tuning | |||||
| 05 | Cover f right loudspeaker | SCHWARZ | 1 | 51469157390 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon surround sound system and Bang&Olufsen High End Surround Sound and Headlining anthracite and Roofliner Alcantara anthracite |
S688A=Yes S6F2A=No S775A=Yes S776A=No |
|||||||||
| 05 | Cover f left loudspeaker | SCHWARZ | 1 | 51469157389 | Shop at ECS Tuning | |||||
| 05 | Cover f right loudspeaker | SCHWARZ | 1 | 51469157390 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon surround sound system and Bang&Olufsen High End Surround Sound and Headlining anthracite and Roofliner Alcantara anthracite |
S688A=Yes S6F2A=No S775A=No S776A=Yes |
|||||||||
| 05 | Cover f left loudspeaker | SCHWARZ | 1 | 51469157389 | Shop at ECS Tuning | |||||
| 05 | Cover f right loudspeaker | SCHWARZ | 1 | 51469157390 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon surround sound system and Bang&Olufsen High End Surround Sound and Headlining anthracite and Roofliner Alcantara anthracite |
S688A=No S6F2A=No S775A=Yes S776A=Yes |
|||||||||
| 05 | Cover f left loudspeaker | SCHWARZ | 1 | 51469127919 | Shop at ECS Tuning | |||||
| 05 | Cover f right loudspeaker | SCHWARZ | 1 | 51469127920 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon surround sound system and Bang&Olufsen High End Surround Sound and Headlining anthracite and Roofliner Alcantara anthracite |
S688A=No S6F2A=No S775A=Yes S776A=No |
|||||||||
| 05 | Cover f left loudspeaker | SCHWARZ | 1 | 51469127919 | Shop at ECS Tuning | |||||
| 05 | Cover f right loudspeaker | SCHWARZ | 1 | 51469127920 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon surround sound system and Bang&Olufsen High End Surround Sound and Headlining anthracite and Roofliner Alcantara anthracite |
S688A=No S6F2A=No S775A=No S776A=Yes |
|||||||||
| 05 | Cover f left loudspeaker | SCHWARZ | 1 | 51469127919 | Shop at ECS Tuning | |||||
| 05 | Cover f right loudspeaker | SCHWARZ | 1 | 51469127920 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon surround sound system and Bang&Olufsen High End Surround Sound and Headlining anthracite and Roofliner Alcantara anthracite and Veneto-beige or Veneto beige exclusive seam |
S688A=No S6F2A=Yes S775A=No S776A=No DF=Yes LY=Yes |
|||||||||
| 05 | Cover f left loudspeaker | VENETOBEIGE | 1 | 65139276543 | Shop at ECS Tuning | |||||
| 05 | Cover f right loudspeaker | VENETOBEIGE | 1 | 65139276544 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon surround sound system and Bang&Olufsen High End Surround Sound and Headlining anthracite and Roofliner Alcantara anthracite and Veneto-beige or Veneto beige exclusive seam |
S688A=No S6F2A=No S775A=No S776A=No DF=Yes LY=Yes |
|||||||||
| 05 | Cover f left loudspeaker | VENETOBEIGE | 1 | 51469179861 | Shop at ECS Tuning | |||||
| 05 | Cover f right loudspeaker | VENETOBEIGE | 1 | 51469179862 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon surround sound system and Bang&Olufsen High End Surround Sound and Headlining anthracite and Roofliner Alcantara anthracite and Veneto-beige or Veneto beige exclusive seam |
S688A=Yes S6F2A=No S775A=No S776A=No DF=Yes LY=Yes |
|||||||||
| 05 | Cover f left loudspeaker | VENETOBEIGE | 1 | 51469179867 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon surround sound system and Bang&Olufsen High End Surround Sound and Headlining anthracite and Roofliner Alcantara anthracite and elfenbein-weiss/oyster exclusive seam or elfenbein-weiss/oyster exclusive seam or oyster exclusive seam or oyster exclusive seam |
S688A=No S6F2A=No S775A=No S776A=No EO=Yes EU=Yes OT=Yes OU=Yes |
|||||||||
| 05 | Cover f left loudspeaker | OYSTER | 1 | 51469179863 | Shop at ECS Tuning | |||||
| 05 | Cover f right loudspeaker | OYSTER | 1 | 51469179864 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon surround sound system and Bang&Olufsen High End Surround Sound and Headlining anthracite and Roofliner Alcantara anthracite and elfenbein-weiss/oyster exclusive seam or elfenbein-weiss/oyster exclusive seam or oyster exclusive seam or oyster exclusive seam |
S688A=Yes S6F2A=No S775A=No S776A=No EO=Yes EU=Yes OT=Yes OU=Yes |
|||||||||
| 05 | Cover f left loudspeaker | OYSTER | 1 | 51469170497 | Shop at ECS Tuning | |||||
| 05 | Cover f right loudspeaker | OYSTER | 1 | 51469170498 | $26.75 | Shop at ECS Tuning | ||||
| For vehicles with Harman/Kardon surround sound system and Bang&Olufsen High End Surround Sound and Headlining anthracite and Roofliner Alcantara anthracite and elfenbein-weiss/oyster exclusive seam or elfenbein-weiss/oyster exclusive seam or oyster exclusive seam or oyster exclusive seam |
S688A=No S6F2A=Yes S775A=No S776A=No EO=Yes EU=Yes OT=Yes OU=Yes |
|||||||||
| 05 | Cover f left loudspeaker | OYSTER | 1 | 65139276545 | +core | Shop at ECS Tuning | ||||
| 05 | Cover f right loudspeaker | OYSTER | 1 | 65139276546 | +core | Shop at ECS Tuning | ||||
| For vehicles with Harman/Kardon surround sound system and Bang&Olufsen High End Surround Sound and Headlining anthracite and Roofliner Alcantara anthracite and anthracite or elfenbein-weiss/oyster exclusive seam or zimt-braun or anthracite or black exclusive seam or mocha or oyster exclusive seam or black exclusive seam or black |
S688A=No S6F2A=No S775A=No S776A=No AT=Yes ET=Yes EZ=Yes IZ=Yes LZ=Yes MW=Yes OX=Yes SJ=Yes SW=Yes |
|||||||||
| 05 | Cover f left loudspeaker | SCHWARZ | 1 | 51469127919 | Shop at ECS Tuning | |||||
| 05 | Cover f right loudspeaker | SCHWARZ | 1 | 51469127920 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon surround sound system and Bang&Olufsen High End Surround Sound and Headlining anthracite and Roofliner Alcantara anthracite and anthracite or elfenbein-weiss/oyster exclusive seam or zimt-braun or anthracite or black exclusive seam or mocha or oyster exclusive seam or black exclusive seam or black |
S688A=No S6F2A=Yes S775A=No S776A=No AT=Yes ET=Yes EZ=Yes IZ=Yes LZ=Yes MW=Yes OX=Yes SJ=Yes SW=Yes |
|||||||||
| 05 | Cover f left loudspeaker | SCHWARZ | 1 | 65139276541 | +core | Shop at ECS Tuning | ||||
| 05 | Cover f right loudspeaker | SCHWARZ | 1 | 65139276542 | +core | Shop at ECS Tuning | ||||
| For vehicles with Harman/Kardon surround sound system and Bang&Olufsen High End Surround Sound and Headlining anthracite and Roofliner Alcantara anthracite and anthracite or elfenbein-weiss/oyster exclusive seam or zimt-braun or anthracite or black exclusive seam or mocha or oyster exclusive seam or black exclusive seam or black |
S688A=Yes S6F2A=No S775A=No S776A=No AT=Yes ET=Yes EZ=Yes IZ=Yes LZ=Yes MW=Yes OX=Yes SJ=Yes SW=Yes |
|||||||||
| 05 | Cover f left loudspeaker | SCHWARZ | 1 | 51469157389 | Shop at ECS Tuning | |||||
| 05 | Cover f right loudspeaker | SCHWARZ | 1 | 51469157390 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite or Roofliner Alcantara anthracite |
S775A=Yes S776A=Yes |
|||||||||
| 06 | Cover | SCHWARZ | 2 | 51469149497 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and Veneto-beige or Veneto beige exclusive seam |
S775A=No S776A=No DF=Yes LY=Yes |
|||||||||
| 06 | Cover | VENETOBEIGE | 2 | 51469180238 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and elfenbein-weiss/oyster exclusive seam or elfenbein-weiss/oyster exclusive seam or oyster exclusive seam or oyster exclusive seam |
S775A=No S776A=No EO=Yes EU=Yes OT=Yes OU=Yes |
|||||||||
| 06 | Cover | OYSTER | 2 | 51469170555 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and anthracite or elfenbein-weiss/oyster exclusive seam or zimt-braun or anthracite or black exclusive seam or mocha or oyster exclusive seam or black exclusive seam or black or Imit. leather "Leatherette/veneto-beige" or Imitation leather "Leatherette/black" or Leatherette venetobeige black or Leather "Dakota/veneto-beige" or Leather "Dakota/zimt-braun" or Leather Dakota/veneto-beige/Excl. seam or Leather Dakota/black/Exclusive seam or Leather Dakota/oyster/exclusive seam or Leather "Dakota"/schwarz or Leather Dakota venetobeige black or Leather Dakota venetobeige ex seam black |
S775A=No S776A=No AT=Yes ET=Yes EZ=Yes IZ=Yes LZ=Yes MW=Yes OX=Yes SJ=Yes SW=Yes K8DF=Yes K8SW=Yes K8V1=Yes LCDF=Yes LCEZ=Yes LCLY=Yes LCLZ=Yes LCOX=Yes LCSW=Yes LCV1=Yes LCV2=Yes |
|||||||||
| 06 | Cover | SCHWARZ | 2 | 51469149497 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite or Roofliner Alcantara anthracite |
S775A=Yes S776A=Yes |
|||||||||
| 07 | Frame | SCHWARZ | 2 | 51467225282 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and Veneto-beige or Veneto beige exclusive seam |
S775A=No S776A=No DF=Yes LY=Yes |
|||||||||
| 07 | Frame | VENETOBEIGE | 2 | 51467225289 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and elfenbein-weiss/oyster exclusive seam or elfenbein-weiss/oyster exclusive seam or oyster exclusive seam or oyster exclusive seam |
S775A=No S776A=No EO=Yes EU=Yes OT=Yes OU=Yes |
|||||||||
| 07 | Frame | OYSTER | 2 | 51467225287 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and anthracite or elfenbein-weiss/oyster exclusive seam or zimt-braun or anthracite or black exclusive seam or mocha or oyster exclusive seam or black exclusive seam or black or Imit. leather "Leatherette/veneto-beige" or Imitation leather "Leatherette/black" or Leatherette venetobeige black or Leather "Dakota/veneto-beige" or Leather "Dakota/zimt-braun" or Leather Dakota/veneto-beige/Excl. seam or Leather Dakota/black/Exclusive seam or Leather Dakota/oyster/exclusive seam or Leather "Dakota"/schwarz or Leather Dakota venetobeige black or Leather Dakota venetobeige ex seam black |
S775A=No S776A=No AT=Yes ET=Yes EZ=Yes IZ=Yes LZ=Yes MW=Yes OX=Yes SJ=Yes SW=Yes K8DF=Yes K8SW=Yes K8V1=Yes LCDF=Yes LCEZ=Yes LCLY=Yes LCLZ=Yes LCOX=Yes LCSW=Yes LCV1=Yes LCV2=Yes |
|||||||||
| 07 | Frame | SCHWARZ | 2 | 51467225282 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite or Roofliner Alcantara anthracite |
S775A=Yes S776A=Yes |
|||||||||
| 08 | Ventilation grille | SCHWARZ | 1 | 51469173447 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and Veneto-beige or Veneto beige exclusive seam |
S775A=No S776A=No DF=Yes LY=Yes |
|||||||||
| 08 | Ventilation grille | VENETOBEIGE | 1 | 51469196122 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and elfenbein-weiss/oyster exclusive seam or elfenbein-weiss/oyster exclusive seam or oyster exclusive seam or oyster exclusive seam |
S775A=No S776A=No EO=Yes EU=Yes OT=Yes OU=Yes |
|||||||||
| 08 | Ventilation grille | OYSTER | 1 | 51469196123 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Roofliner Alcantara anthracite and anthracite or elfenbein-weiss/oyster exclusive seam or zimt-braun or anthracite or black exclusive seam or mocha or oyster exclusive seam or black exclusive seam or black |
S775A=No S776A=No AT=Yes ET=Yes EZ=Yes IZ=Yes LZ=Yes MW=Yes OX=Yes SJ=Yes SW=Yes |
|||||||||
| 08 | Ventilation grille | SCHWARZ | 1 | 51469173447 | Shop at ECS Tuning | |||||
| 09 | Screw, self tapping | ST4,8X16 | 4 | 07119901311 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Expanding nut | ST4,8MM | 4 | 51717154520 | $0.23 | Shop at ECS Tuning | ||||
