Reinforcement, body for BMW 1 Series F40 128ti (2024)

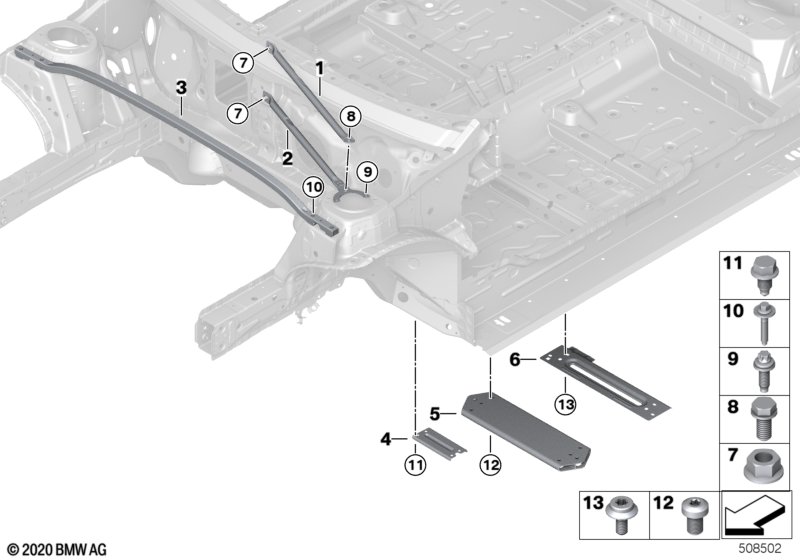

This Reinforcement, body technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 128ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cross-brace, left | 1 | 51617327753 | Shop at ECS Tuning | ||||||
| 01 | Cross-brace, right | 1 | 51617327754 | Shop at ECS Tuning | ||||||
| 03 | Strut brace | 1 | 51617455550 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 equipment |
S1CBA=Yes |
|||||||||
| 05 | Connecting support, tunnel, front | 1 | 51717381493 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 equipment |
S1CBA=No |
|||||||||
| 05 | Connecting support, tunnel, front | 1 | 07/2020 | 51619878983 | Shop at ECS Tuning | |||||
| 07 | Flange nut | M10-10-ZNS3 | 2 | 07119904670 | $0.64 | Shop at ECS Tuning | ||||
| 08 | Hex Bolt with washer | M10X25-10.9ZNS3 | 2 | 07119905147 | $1.07 | Shop at ECS Tuning | ||||
| 10 | Hex head screw with washer | M8X45 | 4 | 61258635668 | Shop at ECS Tuning | |||||
| 12 | Countersunk screw | M10X18-10.9-ZNS | 6 | 07119908082 | Shop at ECS Tuning | |||||
| 13 | Torx screw | M8X18-10.9 ZNS3 | 4 | 33326764505 | $0.80 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series F40 128ti Reinforcement, body?
- This technical diagram illustrates the Reinforcement, body within the Vehicle trim group for the 1 Series F40 128ti produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Cross-brace, left (Part #51617327753).
- Which models use the hardware listed in this Reinforcement, body?
- The hardware and components featured in the Reinforcement, body are specific to the 1 Series F40 128ti produced during 2024. These technical specifications ensure that parts like the Cross-brace, left (51617327753) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Reinforcement, body assembly?
- Each item in the Reinforcement, body corresponds to the numbered list below the illustration. For the 1 Series F40 128ti, you can identify the Cross-brace, left by locating its position on the schematic, which then links to the official BMW part number 51617327753 for the Vehicle trim section.
