Trim panel, front for BMW 5 Series G30 LCI 520d (2020)

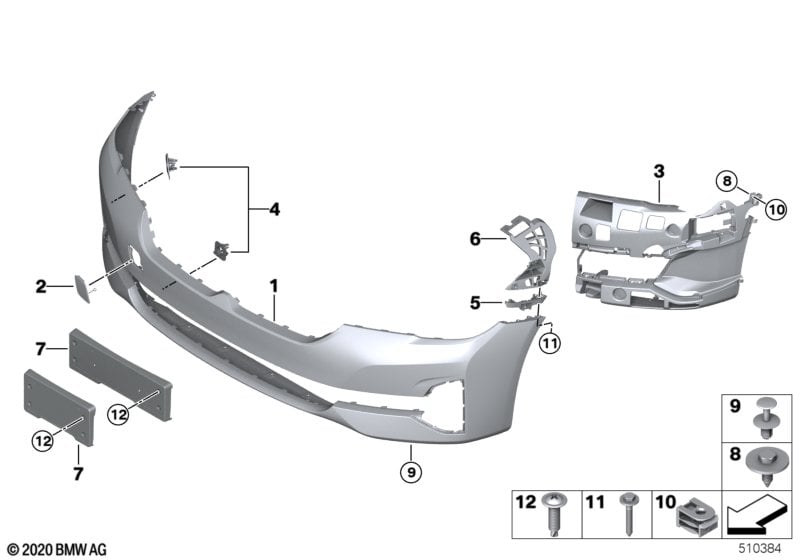

This Trim panel, front technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=No |
||||||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) |
S507A=Yes S508A=Yes |
|||||||||
| 01 | Panel, bumper, primed, front | PDC | 1 | 51119852198 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Satz Anbauteile Stoßfänger vorn | VALUE PARTS | 1 | 51115B4E215 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) |
S507A=Yes S508A=No |
|||||||||
| 01 | Panel, bumper, primed, front | PDC | 1 | 51119852198 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Satz Anbauteile Stoßfänger vorn | VALUE PARTS | 1 | 51115B4E215 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) |
S507A=No S508A=Yes |
|||||||||
| 01 | Panel, bumper, primed, front | PDC | 1 | 51119852198 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Satz Anbauteile Stoßfänger vorn | VALUE PARTS | 1 | 51115B4E215 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) Caution: Observe product information. Use "Only in conjunction with" parts. |
S507A=Yes S508A=Yes |
|||||||||
| 01 | Panel, bumper, primed, front | PDC/PMA | 1 | 51119852199 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Decoupling ring | 2 | 66209390408 | Shop at ECS Tuning | ||||||
| -- | Set of dummy trims | GEN 6.X | 1 | 51125A3F532 | Shop at ECS Tuning | |||||
| -- | Satz Anbauteile Stoßfänger vorn | VALUE PARTS | 1 | 51115B4E215 | Shop at ECS Tuning | |||||
| -- | Stick-on label | NO PDC | 1 | 01295A3BFA7 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) Caution: Observe product information. Use "Only in conjunction with" parts. |
S507A=Yes S508A=No |
|||||||||
| 01 | Panel, bumper, primed, front | PDC/PMA | 1 | 51119852199 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Decoupling ring | 2 | 66209390408 | Shop at ECS Tuning | ||||||
| -- | Set of dummy trims | GEN 6.X | 1 | 51125A3F532 | Shop at ECS Tuning | |||||
| -- | Satz Anbauteile Stoßfänger vorn | VALUE PARTS | 1 | 51115B4E215 | Shop at ECS Tuning | |||||
| -- | Stick-on label | NO PDC | 1 | 01295A3BFA7 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) Caution: Observe product information. Use "Only in conjunction with" parts. |
S507A=No S508A=Yes |
|||||||||
| 01 | Panel, bumper, primed, front | PDC/PMA | 1 | 51119852199 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Decoupling ring | 2 | 66209390408 | Shop at ECS Tuning | ||||||
| -- | Set of dummy trims | GEN 6.X | 1 | 51125A3F532 | Shop at ECS Tuning | |||||
| -- | Satz Anbauteile Stoßfänger vorn | VALUE PARTS | 1 | 51115B4E215 | Shop at ECS Tuning | |||||
| -- | Stick-on label | NO PDC | 1 | 01295A3BFA7 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system and Parking assistance system Plus |
S5DMA=Yes S5DNA=Yes |
|||||||||
| 01 | Panel, bumper, primed, front | PDC/PMA | 1 | 51119852199 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Satz Anbauteile Stoßfänger vorn | VALUE PARTS | 1 | 51115B4E215 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system and Parking assistance system Plus |
S5DMA=Yes S5DNA=No |
|||||||||
| 01 | Panel, bumper, primed, front | PDC/PMA | 1 | 51119852199 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Satz Anbauteile Stoßfänger vorn | VALUE PARTS | 1 | 51115B4E215 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system and Parking assistance system Plus |
S5DMA=No S5DNA=Yes |
|||||||||
| 01 | Panel, bumper, primed, front | PDC/PMA | 1 | 51119852199 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Satz Anbauteile Stoßfänger vorn | VALUE PARTS | 1 | 51115B4E215 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S507A=No S508A=No S5DMA=No S5DNA=No |
|||||||||
| 01 | Panel, bumper, primed, front | 1 | 51119852203 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Satz Anbauteile Stoßfänger vorn | VALUE PARTS | 1 | 51115B4E215 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus Caution: Observe product information. Use "Only in conjunction with" parts. |
S507A=No S508A=No S5DMA=No S5DNA=No |
|||||||||
| 01 | Panel, bumper, primed, front | PDC/PMA | 1 | 51119852199 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Decoupling ring | 6 | 66209390408 | Shop at ECS Tuning | ||||||
| -- | Set of dummy trims | GEN 6.X | 1 | 51125A3F532 | Shop at ECS Tuning | |||||
| -- | Satz Anbauteile Stoßfänger vorn | VALUE PARTS | 1 | 51115B4E215 | Shop at ECS Tuning | |||||
| -- | Stick-on label | NO PDC | 1 | 01295A3BFA7 | Shop at ECS Tuning | |||||
| 02 | Flap for towing eye front primed | 1 | 51119852209 | Shop at ECS Tuning | ||||||
| 03 | Support, fog lamp left | 1 | 51119498601 | Shop at ECS Tuning | ||||||
| 03 | Support, fog lamp right | 1 | 51119498602 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S507A=Yes S508A=Yes S5DMA=Yes S5DNA=Yes |
|||||||||
| 04 | Set, mounting, PDC/PMA sensor, front | 1 | 51119852208 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S507A=Yes S508A=Yes S5DMA=Yes S5DNA=No |
|||||||||
| 04 | Set, mounting, PDC/PMA sensor, front | 1 | 51119852208 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S507A=Yes S508A=Yes S5DMA=No S5DNA=Yes |
|||||||||
| 04 | Set, mounting, PDC/PMA sensor, front | 1 | 51119852208 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S507A=Yes S508A=Yes S5DMA=No S5DNA=No |
|||||||||
| 04 | Set, mounting, PDC/PMA sensor, front | 1 | 51119852208 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S507A=Yes S508A=No S5DMA=Yes S5DNA=Yes |
|||||||||
| 04 | Set, mounting, PDC/PMA sensor, front | 1 | 51119852208 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S507A=Yes S508A=No S5DMA=Yes S5DNA=No |
|||||||||
| 04 | Set, mounting, PDC/PMA sensor, front | 1 | 51119852208 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S507A=Yes S508A=No S5DMA=No S5DNA=Yes |
|||||||||
| 04 | Set, mounting, PDC/PMA sensor, front | 1 | 51119852208 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S507A=Yes S508A=No S5DMA=No S5DNA=No |
|||||||||
| 04 | Set, mounting, PDC/PMA sensor, front | 1 | 51119852208 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S507A=No S508A=Yes S5DMA=Yes S5DNA=Yes |
|||||||||
| 04 | Set, mounting, PDC/PMA sensor, front | 1 | 51119852208 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S507A=No S508A=Yes S5DMA=Yes S5DNA=No |
|||||||||
| 04 | Set, mounting, PDC/PMA sensor, front | 1 | 51119852208 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S507A=No S508A=Yes S5DMA=No S5DNA=Yes |
|||||||||
| 04 | Set, mounting, PDC/PMA sensor, front | 1 | 51119852208 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S507A=No S508A=Yes S5DMA=No S5DNA=No |
|||||||||
| 04 | Set, mounting, PDC/PMA sensor, front | 1 | 51119852208 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S507A=No S508A=No S5DMA=Yes S5DNA=Yes |
|||||||||
| 04 | Set, mounting, PDC/PMA sensor, front | 1 | 51119852208 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S507A=No S508A=No S5DMA=Yes S5DNA=No |
|||||||||
| 04 | Set, mounting, PDC/PMA sensor, front | 1 | 51119852208 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S507A=No S508A=No S5DMA=No S5DNA=Yes |
|||||||||
| 04 | Set, mounting, PDC/PMA sensor, front | 1 | 51119852208 | Shop at ECS Tuning | ||||||
| 05 | Guide, bumper, left | 1 | 51117385349 | Shop at ECS Tuning | ||||||
| 05 | Guide, bumper, right | 1 | 51117385350 | Shop at ECS Tuning | ||||||
| 06 | Guide, top left | 1 | 51117385347 | Shop at ECS Tuning | ||||||
| 06 | Guide, top right | 1 | 51117385348 | Shop at ECS Tuning | ||||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 07 | Number plate carrier front | CHINA | 1 | 51139463486 | Shop at ECS Tuning | |||||
| For vehicles with Control of number-plate attachment |
S992A=Yes |
|||||||||
| 07 | Number plate carrier front | US/ JAP | 1 | 51139463485 | Shop at ECS Tuning | |||||
| For vehicles with National version Japan and Control of number-plate attachment |
L807A=Yes S992A=Yes |
|||||||||
| 07 | Number plate carrier front | US/ JAP | 1 | 51139463485 | Shop at ECS Tuning | |||||
| For vehicles with National version Japan and Control of number-plate attachment |
L807A=Yes S992A=No |
|||||||||
| 07 | Number plate carrier front | US/ JAP | 1 | 51139463485 | Shop at ECS Tuning | |||||
| For vehicles with National version Japan and Control of number-plate attachment |
L807A=No S992A=Yes |
|||||||||
| 07 | Number plate carrier front | US/ JAP | 1 | 51139463485 | Shop at ECS Tuning | |||||
| 08 | Hex Bolt | TS5X17 SW8 D=16 | 2 | 07149126885 | $0.49 | Shop at ECS Tuning | ||||
| 09 | Expanding rivet | D = 8MM | 6 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 10 | C-clip plastic nut | TS5 | 8 | 07147311312 | Shop at ECS Tuning | |||||
| 11 | Screw | TS5X35 SW8 D=15 | 4 | 07129907535 | Shop at ECS Tuning | |||||
| 12 | Fillister head screw | TS5X20 | 4 | 07146986938 | $0.45 | Shop at ECS Tuning | ||||
