Front seat unlocking for BMW 3 Series E36 325i (1992)

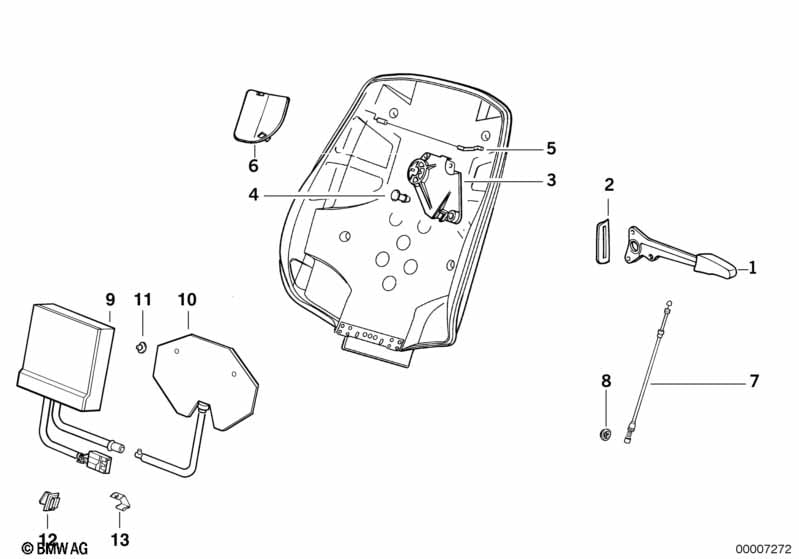

This Front seat unlocking technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lever outer left | 1 | 09/1994 | 52108122157 | $6.70 | Shop at ECS Tuning | ||||
| 01 | Lever outer right | 1 | 09/1994 | 52108122158 | $5.29 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 01 | Lever inner left | 1 | 09/1994 | 52108119591 | $7.29 | Shop at ECS Tuning | ||||
| 01 | Lever inner right | 1 | 09/1994 | 52108119592 | $5.13 | Shop at ECS Tuning | ||||
| 02 | Covering left | 2 | 09/1994 | 52108122155 | $1.32 | Shop at ECS Tuning | ||||
| 02 | Covering right | 2 | 09/1994 | 52108122156 | $1.32 | Shop at ECS Tuning | ||||
| 03 | Plate left | 2 | 09/1994 | 52108122151 | $3.79 | ENDED | Shop at ECS Tuning | |||
| 03 | Plate right | 2 | 09/1994 | 52108122152 | $2.07 | ENDED | Shop at ECS Tuning | |||
| 04 | Rivet | 6 | 09/1994 | 52108151971 | $0.23 | ENDED | Shop at ECS Tuning | |||
| 05 | Connection rod | L=230MM | 1 | 09/1994 | 52108122150 | $6.55 | Shop at ECS Tuning | |||
| 06 | Covering left | 1 | 09/1994 | 52108119597 | $1.00 | Shop at ECS Tuning | ||||
| 06 | Covering right | 1 | 09/1994 | 52108119598 | $1.00 | Shop at ECS Tuning | ||||
| For vehicles with Seat adjustment, mecanical |
=Yes |
|||||||||
| 07 | Bowden cable | BLAU | 2 | 09/1994 | 52108122161 | $9.80 | Shop at ECS Tuning | |||
| For vehicles with Seat, electrically adjustable |
=Yes |
|||||||||
| 07 | Bowden cable | WEISS | 2 | 09/1994 | 52108192594 | $9.21 | ENDED | Shop at ECS Tuning | ||
| 08 | Circlip | 2 | 09/1994 | 72161858017 | $0.10 | Shop at ECS Tuning | ||||
| 09 | Drive unit lordosis pad | 2 | 09/1994 | 52108151911 | $202.00 | ENDED | Shop at ECS Tuning | |||
| 10 | Lordosis pad | 2 | 09/1994 | 52108151912 | $29.30 | Shop at ECS Tuning | ||||
| 11 | Clip | 2 | 09/1994 | 52108151597 | $0.23 | Shop at ECS Tuning | ||||
| 12 | Bracket, plug connection white | 2 | 09/1994 | 61131378997 | $0.87 | Shop at ECS Tuning | ||||
| 13 | Clip | 2 | 09/1994 | 61138353575 | $1.23 | ENDED | Shop at ECS Tuning | |||
| 14 | Lumbar support switch | 2 | 09/1994 | 61311393363 | $109.08 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
