Seat, rear, cushion, & cover, basic seat for BMW 3 Series E36 325i (1992)

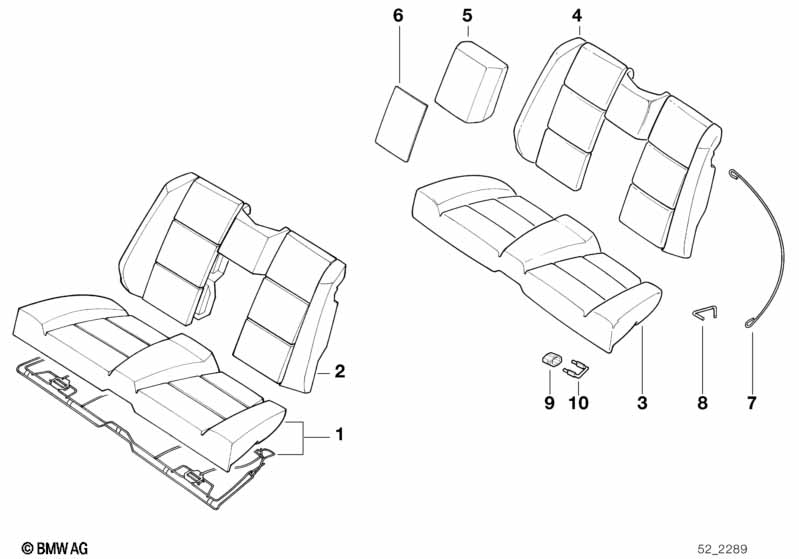

This Seat, rear, cushion, & cover, basic seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | OLD/NEW REFERENCE UPHOLSTERY CODE REFER TO ETK Refer to "Help - abbreviations" in EPC |
|||||||||
| 01 | Foam plastic seat | 1 | 52208144701 | $187.09 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Foam plastic backrest | 1 | 52208144712 | $205.81 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with All leather Nappa Individual series 97 luxury convertible |
L7=Yes |
|||||||||
| 03 | Seat cover, leather | L7CM CHAMPAGNER | 1 | 52202491952 | $1085.87 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather flat textile |
C1=Yes |
|||||||||
| 03 | Cloth/leather seat cover | 0511 ANTHRAZIT | 1 | 52208170855 | $571.95 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Cloth/leather seat cover | 0512 TUERKIS | 1 | 52208170856 | $571.95 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Cloth/leather seat cover | 0513 KLASSI.ROT | 1 | 52208170857 | $571.95 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric, flat-weave "Clover" |
D6=Yes |
|||||||||
| 03 | Seat cover cloth | D6AT ANTHRAZIT | 1 | 52208203663 | $249.98 | ENDED | Shop at ECS Tuning | |||
| 03 | Seat cover cloth | D6TT GRAU | 1 | 52208203664 | $249.98 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Seat cover cloth | D6GD KLASS.ROT | 1 | 52208203665 | $249.98 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Seat cover cloth | D6TK TUERKIS | 1 | 52208203666 | $249.98 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Imitation leather |
K1=Yes |
|||||||||
| 03 | Seat cover vinyl | 0477 SCHWARZ | 1 | 52208170853 | $249.98 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Seat cover vinyl | 0521 BEIGE | 1 | 52208170854 | $354.25 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Nappa INDIVIDUAL SERIES 96 CLASSIC |
L9=Yes |
|||||||||
| 03 | Seat cover, leather | L9CW CREMEWEIß | 1 | 52202494572 | $1096.47 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Fabric "Rep" |
C2=Yes |
|||||||||
| 03 | Seat cover cloth | 0506 ANTHRAZIT | 1 | 09/1994 | 52208170844 | $249.98 | ENDED | Shop at ECS Tuning | ||
| 03 | Seat cover cloth | 0507 GRAU | 1 | 09/1994 | 52208170845 | $249.98 | ENDED | Shop at ECS Tuning | ||
| 03 | Seat cover cloth | 0510 KLASSI.ROT | 1 | 09/1994 | 52208170847 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Seat cover cloth | 0509 TUERKIS | 1 | 09/1994 | 52208170848 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Montana casual |
P7=Yes |
|||||||||
| 03 | Seat cover, leather | 0518 SCHWARZ | 1 | 52208170858 | $854.20 | ENDED | Shop at ECS Tuning | |||
| 03 | Seat cover, leather | 0519 HELLGRAU | 1 | 52208170859 | $854.20 | ENDED | Shop at ECS Tuning | |||
| 03 | Seat cover, leather | 0520 KLASSI.ROT | 1 | 52208170860 | $906.75 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Seat cover, leather | 0620 BEIGE | 1 | 52208187682 | $854.20 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Seat cover, leather | 0645 SAFRANGELB | 1 | 52208197809 | $906.75 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Seat cover, leather | 0646 BLAUVIOLET | 1 | 52208197810 | $906.75 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana Soft |
P8=Yes |
|||||||||
| 03 | Seat cover, leather | 0514 SCHWARZ | 1 | 52208170849 | $906.75 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Seat cover, leather | 0515 BEIGE | 1 | 52208170850 | $854.20 | ENDED | Shop at ECS Tuning | |||
| 03 | Seat cover, leather | 0516 SAFRANGELB | 1 | 52208170851 | $906.75 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Seat cover, leather | 0517 BLAUVIOL. | 1 | 52208170852 | $906.75 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Seat cover, leather | 0595 HELLGRAU | 1 | 52208187683 | $854.20 | +core | Shop at ECS Tuning | |||
| For vehicles with National version south africa and Fabric "Rep" |
L824A=Yes C2=Yes |
|||||||||
| 03 | Seat cover cloth | 0506 ANTHRAZIT | 1 | 01/1995 | 52208170844 | $249.98 | ENDED | Shop at ECS Tuning | ||
| 03 | Seat cover cloth | 0507 GRAU | 1 | 01/1995 | 52208170845 | $249.98 | ENDED | Shop at ECS Tuning | ||
| 03 | Seat cover cloth | 0510 KLASSI.ROT | 1 | 01/1995 | 52208170847 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Seat cover cloth | 0509 TUERKIS | 1 | 01/1995 | 52208170848 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather flat textile |
C1=Yes |
|||||||||
| 04 | Cloth/leather backrest cover | 0511 ANTHRAZIT | 1 | 52208170889 | $503.32 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Cloth/leather backrest cover | 0512 TUERKIS | 1 | 52208170890 | $503.32 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Cloth/leather backrest cover | 0513 KLASSI.ROT | 1 | 52208170891 | $503.32 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric, flat-weave "Clover" |
D6=Yes |
|||||||||
| 04 | Cover backrest cloth | D6AT ANTHRAZIT | 1 | 52208203673 | $260.03 | ENDED | Shop at ECS Tuning | |||
| 04 | Cover backrest cloth | D6TT GRAU | 1 | 52208203674 | $337.76 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Cover backrest cloth | D6GD KLASS.ROT | 1 | 52208203675 | $260.03 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Cover backrest cloth | D6TK TUERKIS | 1 | 52208203676 | $260.03 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Imitation leather |
K1=Yes |
|||||||||
| 04 | Cover backrest, imitation leather | 0477 SCHWARZ | 1 | 52208170887 | $260.03 | ENDED | Shop at ECS Tuning | |||
| 04 | Cover backrest, imitation leather | 0521 BEIGE | 1 | 52208170888 | $337.76 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric "Rep" |
C2=Yes |
|||||||||
| 04 | Cover backrest cloth | 0506 ANTHRAZIT | 1 | 52208170878 | $260.03 | ENDED | Shop at ECS Tuning | |||
| 04 | Cover backrest cloth | 0507 GRAU | 1 | 52208170879 | $260.03 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Cover backrest cloth | 0510 KLASSI.ROT | 1 | 52208170881 | $260.03 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Cover backrest cloth | 0509 TUERKIS | 1 | 52208170882 | $260.03 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana casual |
P7=Yes |
|||||||||
| 04 | Cover backrest, leather | 0518 SCHWARZ | 1 | 52208170892 | $724.19 | ENDED | Shop at ECS Tuning | |||
| 04 | Cover backrest, leather | 0519 HELLGRAU | 1 | 52208170893 | $724.19 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Cover backrest, leather | 0520 KLASSI.ROT | 1 | 52208170894 | $1074.15 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Cover backrest, leather | 0620 BEIGE | 1 | 52208187686 | $724.19 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Cover backrest, leather | 0645 SAFRANGELB | 1 | 52208197815 | $1074.15 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Cover backrest, leather | 0646 BLAUVIOLET | 1 | 52208197816 | $1074.15 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather Montana Soft |
P8=Yes |
|||||||||
| 04 | Cover backrest, leather | 0514 SCHWARZ | 1 | 52208170883 | $724.19 | +core | Shop at ECS Tuning | |||
| 04 | Cover backrest, leather | 0515 BEIGE | 1 | 52208170884 | $724.19 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Cover backrest, leather | 0516 SAFRANGELB | 1 | 52208170885 | $1074.15 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Cover backrest, leather | 0517 BLAUVIOL. | 1 | 52208170886 | $1074.15 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Cover backrest, leather | 0595 HELLGRAU | 1 | 52208187687 | $724.19 | ENDED, +core | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
