Front seat rail electrical/single parts for BMW 5 Series E39 525i (2003)

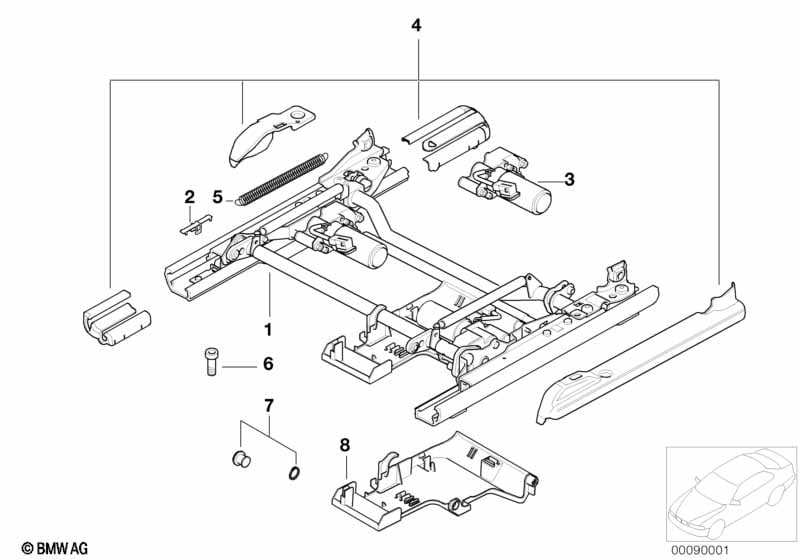

This Front seat rail electrical/single parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| MODEL WITHOUT MEMORY ONLY APPLIES TO CO-DRIVERS SIDE |
||||||||||
| 01 | Seat rail right | 1 | 52108207404 | $571.20 | Shop at ECS Tuning | |||||
| MODEL WITH MEMORY ONLY APPLIES TO DRIVER'S SIDE |
||||||||||
| 01 | Seat rail left | 1 | 52108207203 | $571.20 | ENDED | Shop at ECS Tuning | ||||
| 02 | Stopper | 2 | 52108170537 | $3.27 | Shop at ECS Tuning | |||||
| 03 | Drive f longitudinal and tilt adjustment | 4 | 67318352191 | $82.36 | ENDED | Shop at ECS Tuning | ||||
| FOR DRIVER AND CO-DRIVER |
||||||||||
| 04 | Cover | GRAU | 1 | 52108217314 | $33.68 | Shop at ECS Tuning | ||||
| 04 | Cover | SCHWARZ | 1 | 52108217315 | $33.68 | Shop at ECS Tuning | ||||
| 04 | Cover | LAVENDELGRAU | 1 | 52108217316 | $33.68 | Shop at ECS Tuning | ||||
| 04 | Cover | SANDBEIGE | 1 | 52108217317 | $33.68 | Shop at ECS Tuning | ||||
| 04 | Cover | PASTELLGRUEN | 1 | 52108217318 | $30.43 | ENDED | Shop at ECS Tuning | |||
| 05 | Tension spring | 4 | 52108157404 | $5.25 | Shop at ECS Tuning | |||||
| 06 | Fillister head screw | M12 | 4 | 51108244820 | $20.38 | Shop at ECS Tuning | ||||
| 06 | Fillister head screw | M10 | 4 | 52108162348 | $1.14 | Shop at ECS Tuning | ||||
| 07 | Bush bearing set | 2 | 52108231862 | $3.11 | Shop at ECS Tuning | |||||
| 08 | Bracket set f plugs | 1 | 52108157401 | $12.13 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525i Front seat rail electrical/single parts?
- This technical diagram illustrates the Front seat rail electrical/single parts within the Seats group for the 5 Series E39 525i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Seat rail right (Part #52108207404).
- Which models use the hardware listed in this Front seat rail electrical/single parts?
- The hardware and components featured in the Front seat rail electrical/single parts are specific to the 5 Series E39 525i produced during 2003. These technical specifications ensure that parts like the Seat rail right (52108207404) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front seat rail electrical/single parts assembly?
- Each item in the Front seat rail electrical/single parts corresponds to the numbered list below the illustration. For the 5 Series E39 525i, you can identify the Seat rail right by locating its position on the schematic, which then links to the official BMW part number 52108207404 for the Seats section.
