Seat, front, head restraint,comfort seat for BMW 5 Series E39 525i (2003)

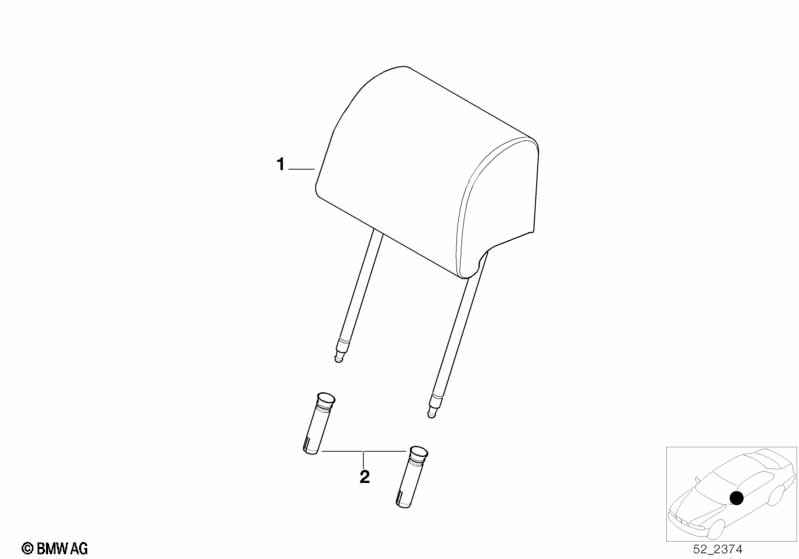

This Seat, front, head restraint,comfort seat technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather Highline |
V6=Yes |
|||||||||
| 01 | Headrest leather | V6SW SCHWARZ | 2 | 09/2001 | 52107049102 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | V6SN SANDBEIGE | 2 | 09/2001 | 52107049103 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | V6BG BURGUND | 2 | 09/2001 | 52107049104 | $249.98 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mont./basic equipm. |
N6=Yes |
|||||||||
| 01 | Headrest leather | N8TT GRAU | 2 | 52108158711 | $213.25 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Headrest leather | N8SW SCHWARZ | 2 | 52108158712 | $213.25 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Diagonal rep cloth |
F4=Yes |
|||||||||
| 01 | Head rest cloth | F4AT ANTHRAZIT | 2 | 09/1998 | 52108251681 | $134.12 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | F4TT GRAU | 2 | 09/1998 | 52108251683 | $134.12 | ENDED | Shop at ECS Tuning | ||
| 01 | Head rest cloth | F4EG ENGL.GRUEN | 2 | 09/2001 | 52107056842 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Head rest cloth | F4DL MARINEBLAU | 2 | 09/2001 | 52108251682 | $152.89 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather Mont./basic equipm. or Standard leather, montana |
N6=Yes O7=Yes |
|||||||||
| 01 | Headrest leather | N6SN,N8SN BEIGE | 2 | 52108176053 | $213.25 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Headrest leather | N6LG,O7LG GELB | 2 | 09/1998 | 52108258923 | $242.17 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Headrest leather | N6GN,O7GN GRUEN | 2 | 09/1998 | 52108258924 | $193.15 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Guide | 4 | 52108169456 | $2.54 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
