Seat, front, cushion &cover, sports seat for BMW 5 Series E39 525i (2003)

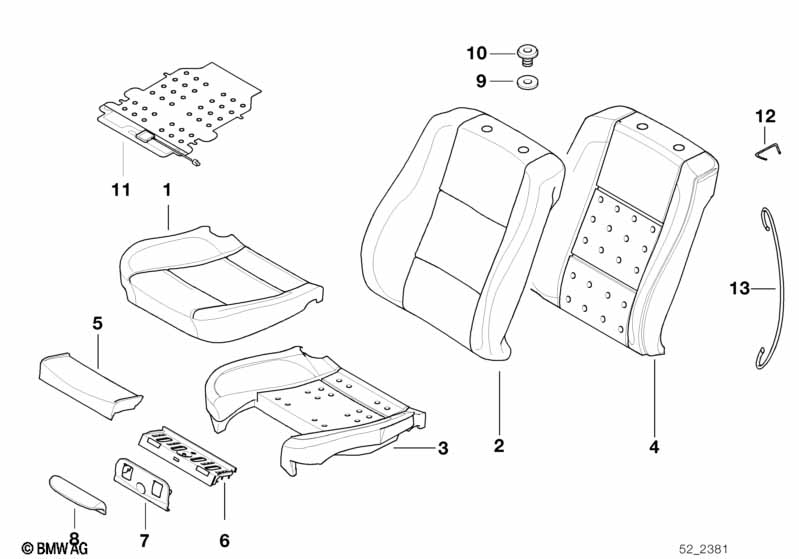

This Seat, front, cushion &cover, sports seat technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Model with seat heating ALSO FOR VEHICLES WITHOUT Seat heating For vehicles with Sports seat |
S481A=Yes |
||||||||
| For vehicles with Sports seat and Cloth/leather "Sportline" Model without heated seat |
S481A=Yes J3=Yes |
|||||||||
| 01 | Cloth/leather seat cover | J3AT ANTHRAZIT | 2 | 09/2001 | 52107048738 | $406.22 | ENDED | Shop at ECS Tuning | ||
| 01 | Cloth/leather seat cover | J3FA FLANELGRAU | 2 | 09/2001 | 52107048739 | $406.22 | ENDED | Shop at ECS Tuning | ||
| 01 | Cloth/leather seat cover | J3GC GRAUBLAU | 2 | 09/2001 | 52107048740 | $406.22 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Sports seat and Diagonal rep cloth Model without heated seat |
S481A=Yes F4=Yes |
|||||||||
| 01 | Seat cover cloth | F4AT ANTHRAZIT | 2 | 03/1998 | 52108239318 | $272.30 | Shop at ECS Tuning | |||
| 01 | Seat cover cloth | F4TT GRAU | 2 | 03/1998 | 52108239321 | $272.30 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | F4EG ENGL.GRUEN | 2 | 09/2001 | 52107060786 | $272.30 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | F4DL MARINEBLAU | 2 | 09/2001 | 52107060846 | $272.30 | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Cloth "Headline" Model without heated seat |
S481A=Yes G3=Yes |
|||||||||
| 01 | Seat cover cloth | G3AT ANTHRAZIT | 2 | 03/1999 | 52102699496 | $406.22 | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Leather Mont./basic equipm. |
S481A=Yes N6=Yes |
|||||||||
| 01 | Seat cover, leather | N6SW SCHWARZ | 2 | 09/1998 | 52108254377 | $619.32 | Shop at ECS Tuning | |||
| 01 | Seat cover, leather | N6TT GRAU | 2 | 09/1998 | 52108254378 | $619.32 | +core | Shop at ECS Tuning | ||
| For vehicles with Seat adjustment, electric, with memory or Sports seat and Diagonal rep cloth Model without heated seat |
S459A=Yes S481A=Yes F4=Yes |
|||||||||
| 01 | Seat cover cloth | F4AT ANTHRAZIT | 2 | 03/1998 | 52108251288 | $272.30 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | F4TT GRAU | 2 | 03/1998 | 52108251291 | $272.30 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | F4DL MARINEBLAU | 2 | 09/2001 | 52107054356 | $272.30 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Seat cover cloth | F4EG ENGL.GRUEN | 2 | 09/2001 | 52107054357 | $272.30 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Seat adjustment, electric, with memory or Sports seat and Cloth "Headline" Model without heated seat |
S459A=Yes S481A=Yes G3=Yes |
|||||||||
| 01 | Seat cover cloth | G3AT ANTHRAZIT | 2 | 03/1999 | 52102699502 | $406.22 | Shop at ECS Tuning | |||
| For vehicles with Seat adjustment, electric, with memory and Sports seat and Leather Mont./basic equipm. |
S459A=Yes S481A=Yes N6=Yes |
|||||||||
| 01 | Seat cover, leather | N6SW SCHWARZ | 2 | 09/1998 | 52108252304 | $619.32 | Shop at ECS Tuning | |||
| 01 | Seat cover, leather | N6TT GRAU | 2 | 09/1998 | 52108252305 | $619.32 | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Leather Mont./basic equipm. or Standard leather, montana |
S481A=Yes N6=Yes O7=Yes |
|||||||||
| 01 | Seat cover, leather | N6GN,O7GN STEIN | 2 | 09/1998 | 52108249640 | $619.32 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover, leather | N6LG,O7LG LIGHT | 2 | 09/1998 | 52108249644 | $719.82 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover, leather | N6SN,O7SN BEIGE | 2 | 09/1998 | 52108254380 | $619.32 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Seat adjustment, electric, with memory or Sports seat and Cloth/leather "Sportline" Model without heated seat |
S459A=Yes S481A=Yes J3=Yes |
|||||||||
| 01 | Cloth/leather seat cover | J3AT ANTHRAZIT | 2 | 09/2001 | 52107048750 | $406.22 | ENDED | Shop at ECS Tuning | ||
| 01 | Cloth/leather seat cover | J3FA FLANELGRAU | 2 | 09/2001 | 52107048751 | $406.22 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Cloth/leather seat cover | J3GC GRAUBLAU | 2 | 09/2001 | 52107048752 | $406.22 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Seat adjustment, electric, with memory or Sports seat and Leather Mont./basic equipm. or Standard leather, montana |
S459A=Yes S481A=Yes N6=Yes O7=Yes |
|||||||||
| 01 | Seat cover, leather | N6SN,O7SN BEIGE | 2 | 09/1998 | 52108252308 | $619.32 | Shop at ECS Tuning | |||
| 01 | Seat cover, leather | N6GN,O7GN STEIN | 2 | 09/1998 | 52108257099 | $619.32 | ENDED | Shop at ECS Tuning | ||
| 01 | Seat cover, leather | N6LG,O7LG LIGHT | 2 | 09/1998 | 52108257100 | $719.82 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Sports seat and Cloth/leather "Sportline" Model without heated seat |
S481A=Yes J3=Yes |
|||||||||
| 02 | Cloth/leather backrest cover | J3AT ANTHRAZIT | 2 | 09/2001 | 52107048742 | $390.60 | ENDED | Shop at ECS Tuning | ||
| 02 | Cloth/leather backrest cover | J3FA FLANELGRAU | 2 | 09/2001 | 52107048743 | $390.60 | ENDED | Shop at ECS Tuning | ||
| 02 | Cloth/leather backrest cover | J3GC GRAUBLAU | 2 | 09/2001 | 52107048744 | $390.60 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Sports seat and Diagonal rep cloth Model without heated seat |
S481A=Yes F4=Yes |
|||||||||
| 02 | Cover backrest cloth | F4AT ANTHRAZIT | 2 | 03/1998 | 52108239330 | $272.30 | Shop at ECS Tuning | |||
| 02 | Cover backrest cloth | F4TT GRAU | 2 | 03/1998 | 52108239333 | $272.30 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | F4DL MARINEBLAU | 2 | 09/2001 | 52107054350 | $272.30 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover backrest cloth | F4EG ENGL.GRUEN | 2 | 09/2001 | 52107054351 | $272.30 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Sports seat and Cloth "Headline" Model without heated seat |
S481A=Yes G3=Yes |
|||||||||
| 02 | Cover backrest cloth | G3AT ANTHRAZIT | 2 | 03/1999 | 52102699498 | $390.60 | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Leather Mont./basic equipm. |
S481A=Yes N6=Yes |
|||||||||
| 02 | Cover backrest, leather | N6SW SCHWARZ | 2 | 09/1998 | 52108253862 | $758.21 | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather | N6TT GRAU | 2 | 09/1998 | 52108253863 | $758.21 | Shop at ECS Tuning | |||
| For vehicles with Sports seat and Leather Mont./basic equipm. or Standard leather, montana |
S481A=Yes N6=Yes O7=Yes |
|||||||||
| 02 | Cover backrest, leather | N6GN,O7GN STEIN | 2 | 09/1998 | 52108249658 | $758.21 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover backrest, leather | N6SN,O7SN BEIGE | 2 | 09/1998 | 52108253865 | $758.21 | Shop at ECS Tuning | |||
| 02 | Cover backrest, leather | N6LG,O7LG LIGHT | 2 | 09/1998 | 52108257093 | $719.82 | ENDED | Shop at ECS Tuning | ||
| 03 | Pad seat front | 2 | 52108162329 | $150.27 | Shop at ECS Tuning | |||||
| 04 | Pad seat backrest | 2 | 11/1998 | 52108261080 | $165.32 | Shop at ECS Tuning | ||||
| 05 | Thigh support | 2 | 52108211795 | $31.93 | ENDED | Shop at ECS Tuning | ||||
| 06 | Carrier thigh support | 2 | 52108191948 | $25.48 | Shop at ECS Tuning | |||||
| 07 | Cover | SCHWARZ | 2 | 52108200336 | $5.60 | Shop at ECS Tuning | ||||
| 08 | Handle | SCHWARZ | 2 | 52108200337 | $7.86 | Shop at ECS Tuning | ||||
| 09 | Covering Lower | 4 | 52101838969 | $0.43 | Shop at ECS Tuning | |||||
| 10 | Cover | SCHWARZ | 4 | 52108191245 | $1.66 | Shop at ECS Tuning | ||||
| 10 | Cover | GRAU | 4 | 52108192443 | $1.66 | Shop at ECS Tuning | ||||
| 10 | Cover | SANDBEIGE | 4 | 52108192444 | $1.12 | Shop at ECS Tuning | ||||
| For vehicles with Sports seat |
S481A=Yes |
|||||||||
| 11 | Sensor mat co-driver's seat identif. | 1 | 65776949787 | $124.53 | Shop at ECS Tuning | |||||
| 12 | Clamp | 1,6X20X10,1 | X | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
| 13 | Wire-strap | L=1800MM | X | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
