Seat, front, rear panel for BMW 5 Series E39 525i (2003)

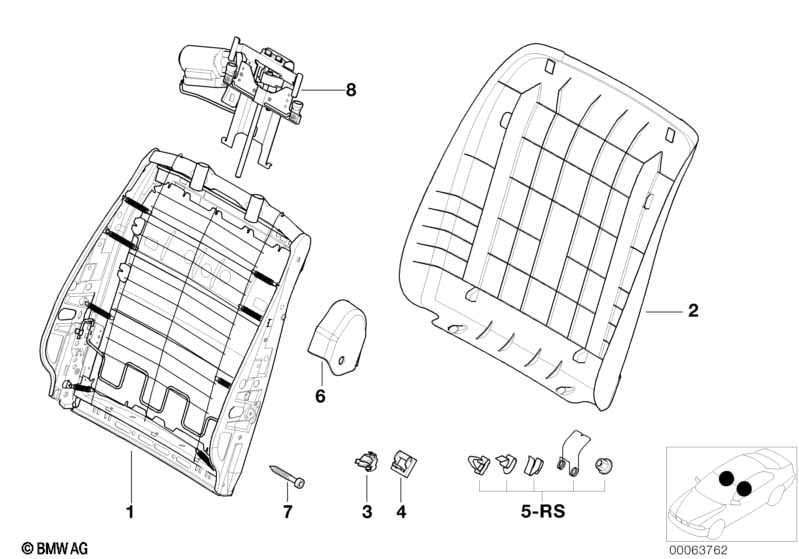

This Seat, front, rear panel technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Sports seat |
S481A=Yes |
||||||||
| For vehicles with Seat adjustment, electric, with memory |
S459A=Yes |
|||||||||
| 01 | Backrest frame | 2 | 11/1998 | 52108261081 | $93.85 | Shop at ECS Tuning | ||||
| For vehicles with Seat adjustment, mecanical |
=Yes |
|||||||||
| 01 | Backrest frame | 2 | 11/1998 | 52108261081 | $93.85 | Shop at ECS Tuning | ||||
| For vehicles with Diagonal rep cloth or Cloth flock or Leather Mont./basic equipm. or Standard leather, montana Version with bag |
F4=Yes F6=Yes N6=Yes O7=Yes |
|||||||||
| 02 | Vinyl rear panel | SCHWARZ | 2 | 52107000926 | $105.13 | ENDED | Shop at ECS Tuning | |||
| 02 | Vinyl rear panel | GRAU | 2 | 52107000927 | $105.13 | Shop at ECS Tuning | ||||
| 02 | Vinyl rear panel | ENGL.GRUEN | 2 | 52107000929 | $102.39 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Vinyl rear panel | SANDBEIGE | 2 | 52107000930 | $105.13 | ENDED | Shop at ECS Tuning | |||
| 03 | Clip | 4 | 12/2003 | 52108175053 | $0.66 | Shop at ECS Tuning | ||||
| 03 | Repair kit, retainers | 4 | 52107240386 | Shop at ECS Tuning | ||||||
| 04 | Clip | 4 | 52108175054 | $2.29 | Shop at ECS Tuning | |||||
| 05 | Set mounting parts | 1 | 52108197043 | ENDED | Shop at ECS Tuning | |||||
| 07 | Screw | M8 X 53 | 4 | 01/1999 | 52107007466 | $1.62 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Seat adjustment, electric, with memory |
S459A=Yes |
|||||||||
| 08 | Head rest support electr. | 1 | 52108158582 | $183.59 | Shop at ECS Tuning | |||||
| For vehicles with Electr. front seat adjustment ONLY APPLIES TO CO-DRIVERS SIDE |
S458A=Yes |
|||||||||
| 08 | Head rest support electr. | 1 | 52108158581 | $118.95 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
