Pad/seat pan of BMW sports seat for BMW 3 Series E36 320i (1994)

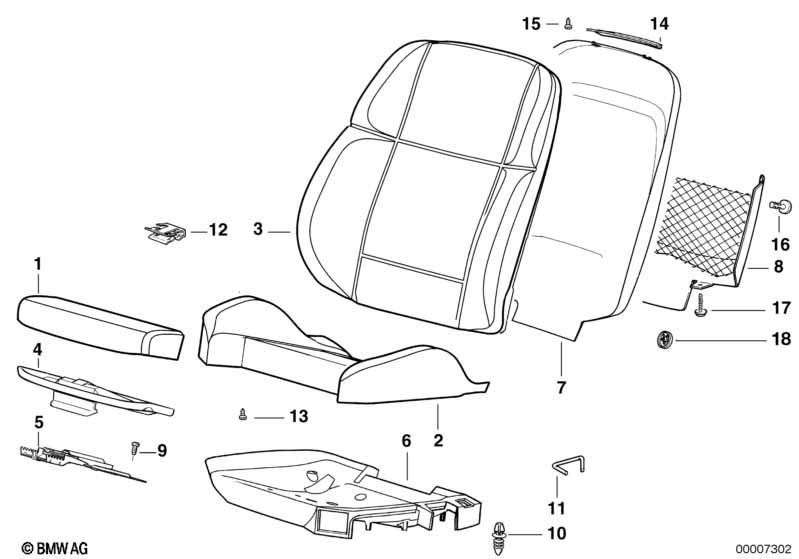

This Pad/seat pan of BMW sports seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.

Pad/seat pan of BMW sports seat
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Thigh support upholstery 2 52108122078 $31.93 ENDED Shop at ECS Tuning
02 Pad, lower seat, front 2 52102276391 $53.00 ENDED Shop at ECS Tuning
02 Pad seat front 2 52108122076 $113.89 Shop at ECS Tuning
only in conjunction with
-- Sensor mat co-driver's seat identif. 2 65776905024 $124.53 Shop at ECS Tuning
-- Trimming wire front L=290MM 2 52101821497 $0.71 ENDED Shop at ECS Tuning
-- Trimming wire rear L=270MM 2 52108135542 $0.37 Shop at ECS Tuning
03 Pad seat backrest front 2 09/1994 52108192572 $125.27 Shop at ECS Tuning
04 Supporting plate 2 52108122077 $49.19 ENDED Shop at ECS Tuning
05 Holder for thigh support 2 52108122075 $24.27 ENDED, +core Shop at ECS Tuning
06 Seat pan left SCHWARZ 1 52108130667 $75.73 ENDED Shop at ECS Tuning
06 Seat pan, right SCHWARZ 1 52108130668 $75.73 ENDED Shop at ECS Tuning
06 Seat pan left GRAU 1 09/1993 52108166181 $75.73 ENDED Shop at ECS Tuning
06 Seat pan, right GRAU 1 09/1993 52108166182 $75.73 Shop at ECS Tuning
06 Seat pan left BEIGE 1 09/1993 52108166183 $75.73 ENDED Shop at ECS Tuning
06 Seat pan, right BEIGE 1 09/1993 52108166184 $75.73 ENDED Shop at ECS Tuning
06 Seat pan left TUERKIS 1 09/1993 52108166185 $58.59 ENDED Shop at ECS Tuning
06 Seat pan, right TUERKIS 1 09/1993 52108166186 $58.59 ENDED Shop at ECS Tuning
06 Seat pan left KLASSISCHROT 1 09/1993 52108166187 $58.59 ENDED Shop at ECS Tuning
06 Seat pan, right KLASSISCHROT 1 09/1993 52108166188 $58.59 ENDED Shop at ECS Tuning
06 Seat pan left SAFRANGELB 1 09/1993 52108166191 $57.20 ENDED Shop at ECS Tuning
06 Seat pan, right SAFRANGELB 1 09/1993 52108166192 $57.20 ENDED Shop at ECS Tuning
06 Seat pan left BLAUVIOLETT 1 09/1993 52108166193 $58.59 ENDED Shop at ECS Tuning
06 Seat pan, right BLAUVIOLETT 1 09/1993 52108166194 $57.20 ENDED Shop at ECS Tuning
06 Seat pan left HELLGRAU 1 09/1993 52108166347 $75.73 ENDED Shop at ECS Tuning
06 Seat pan, right HELLGRAU 1 09/1993 52108166348 $75.73 ENDED Shop at ECS Tuning
07 Rear panel SCHWARZ 2 09/1994 52108201675 $162.16 ENDED Shop at ECS Tuning
07 Rear panel BEIGE 2 09/1994 52108201676 $152.89 ENDED Shop at ECS Tuning
07 Rear panel GRAU 2 09/1994 52108201677 $156.72 ENDED, +core Shop at ECS Tuning
07 Rear panel BLAUVIOLETT 2 09/1994 52108201678 $162.16 ENDED, +core Shop at ECS Tuning
07 Rear panel HELLGRAU 2 09/1994 52108201679 $152.89 ENDED Shop at ECS Tuning
07 Rear panel SAFRANGELB 2 09/1994 52108201680 $152.89 ENDED, +core Shop at ECS Tuning
07 Rear panel KLASSISCHROT 2 09/1994 52108201884 $152.89 ENDED, +core Shop at ECS Tuning
07 Rear panel TUERKIS 2 09/1994 52108201885 $152.89 ENDED, +core Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
