Running metre individual,embossed leath. for BMW 5 Series E39 528i (1996)

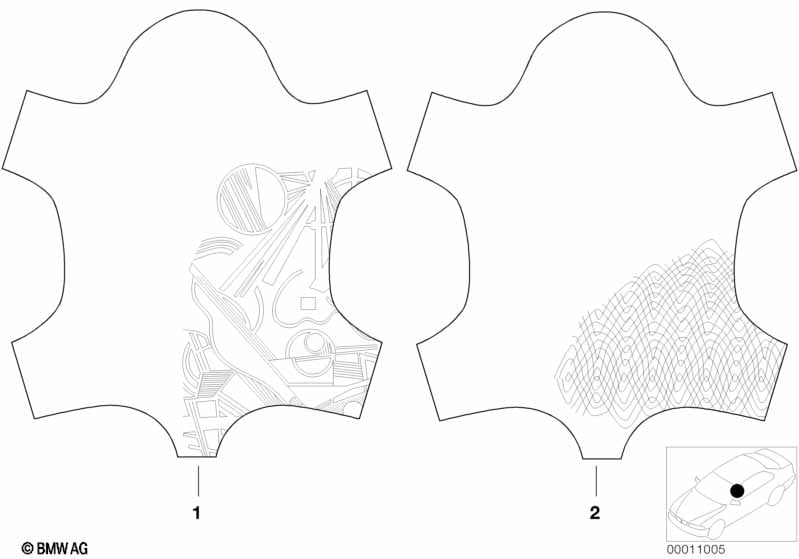

This Running metre individual,embossed leath. technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Upholstery leather, embossed (approx. 2,5 - 3 sqm) Metreware = half skin --------------------------- --------------------------- Leather description "Pablo" Cowhide leather with treated surface and artistic embossing. "Cobra" Cowhide leather with treated surface and fine snake embossing, constrasting by surface pressure. |
|||||||||
| UPHOLSTERY LEATHER WALKNAPPA PABLO | ||||||||||
| 01 | Upholstery leather, embossed "Pablo" | ATLANTIS | 1 | 51922492574 | $382.79 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Upholstery leather, embossed "Pablo" | CLEAR GREEN | 1 | 51922492576 | $382.79 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Upholstery leather, embossed "Pablo" | DUNKELBLAU | 1 | 51922492578 | $382.79 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Upholstery leather, embossed "Pablo" | FLIEDER DUNKEL | 1 | 51922493007 | $382.79 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Upholstery leather, embossed "Pablo" | MUGELLOROT | 1 | 51922493008 | $382.79 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Upholstery leather, embossed "Pablo" | TINTENBLAU | 1 | 51922493009 | $382.79 | ENDED, +core | Shop at ECS Tuning | |||
| UPHOLSTERY LEATHER WALKNAPPA COBRA | ||||||||||
| 02 | Upholstery leather, embossed "Cobra" | SCHWARZ | 1 | 51922493011 | $382.79 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Upholstery leather, embossed "Cobra" | CHATEAU | 1 | 51922493012 | $382.79 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Upholstery leather, embossed "Cobra" | MINT | 1 | 51922493013 | $382.79 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Upholstery leather, embossed "Cobra" | SANTORINBLAU | 1 | 51922493014 | $382.79 | ENDED, +core | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
