Single components for wiper arm for BMW 3 Series E36 318is (1998)

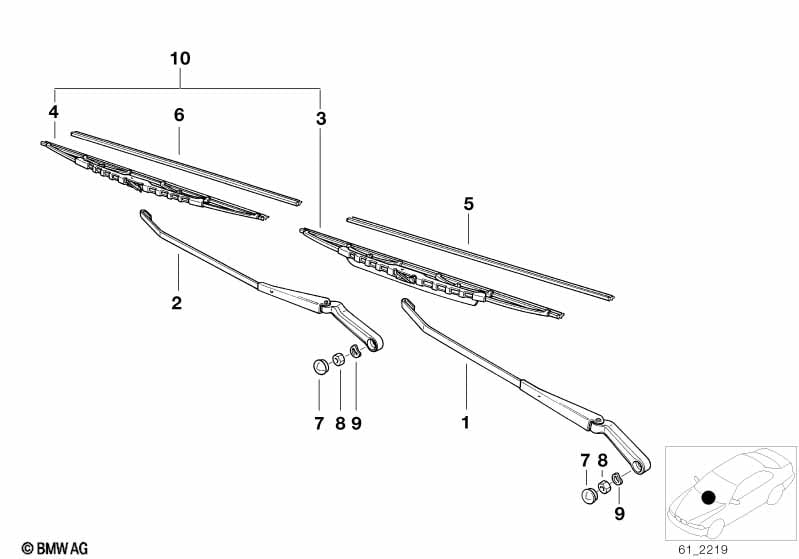

This Single components for wiper arm technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiper arm, left | 1 | 61618357209 | $38.50 | Shop at ECS Tuning | |||||
| 02 | Wiper arm right | 1 | 61618392002 | $42.18 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wiper arm right | 1 | 61618353048 | Shop at ECS Tuning | ||||||
| 03 | Wiper blade driver side | E 36 | 1 | 61618353289 | $24.74 | ENDED | Shop at ECS Tuning | |||
| 04 | Wiper blade right | 1 | 61611387678 | ENDED | Shop at ECS Tuning | |||||
| 07 | Cover cap windscreen wiper pivot | 2 | 61615A3F9D8 | Shop at ECS Tuning | ||||||
| 08 | Hex nut | M8-8-ZNS3 | 2 | 08/2000 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 08 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 09 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Set of wiper blades | 1 | 61619069197 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
