Horn for BMW 6 Series E24 633CSi

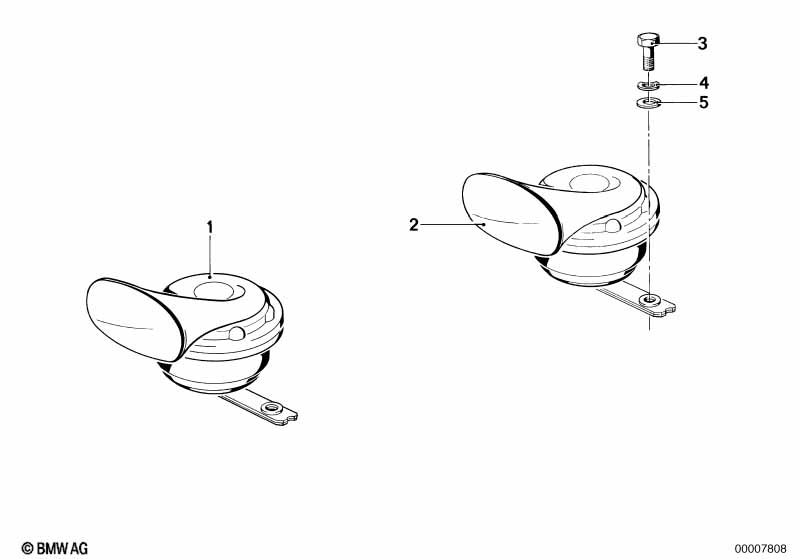

This Horn technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Horn | FIAMM 410HZ | 1 | 06/1987 | 61331371914 | $30.82 | +core | Shop at ECS Tuning | ||
| 01 | Horn | FIAMM 410HZ | 1 | 06/1987 | 61337163972 | ENDED | Shop at ECS Tuning | |||
| 02 | Horn | FIAMM 510HZ | 1 | 06/1987 | 61337163975 | $48.37 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Hex Bolt | M8X18 | 2 | 07119913632 | $0.17 | ENDED | Shop at ECS Tuning | |||
| 04 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi Horn?
- This technical diagram illustrates the Horn within the Vehicle electrical system group for the 6 Series E24 633CSi. It provides a detailed exploded view of the components, identifying key parts such as the Horn (Part #61331371914).
- Which models use the hardware listed in this Horn?
- The hardware and components featured in the Horn are specific to the 6 Series E24 633CSi. These technical specifications ensure that parts like the Horn (61331371914) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Horn assembly?
- Each item in the Horn corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Horn by locating its position on the schematic, which then links to the official BMW part number 61331371914 for the Vehicle electrical system section.
