Wiring set seat for BMW 3 Series E90 LCI 320i (2011)

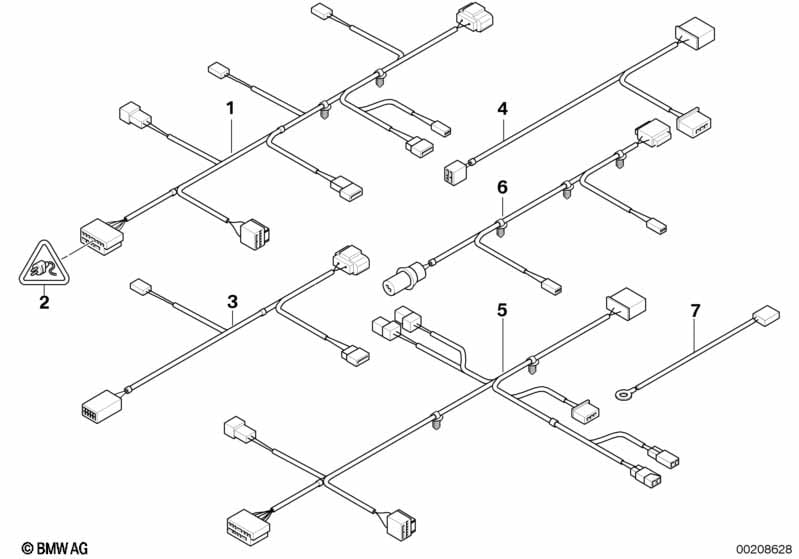

This Wiring set seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring set seat, driver's side | 1 | 03/2007 | 61129131631 | $29.18 | Shop at ECS Tuning | ||||
| 01 | Wiring set seat, passenger's side | 1 | 03/2007 | 61129131647 | $59.22 | Shop at ECS Tuning | ||||
| For vehicles with Seat adjustment, electric, with memory |
S459A=Yes |
|||||||||
| 01 | Wiring set seat, driver's side | 1 | 03/2010 | 61129218749 | Shop at ECS Tuning | |||||
| 01 | Wiring set seat, passenger's side | 1 | 03/2007 | 61129131741 | $59.22 | Shop at ECS Tuning | ||||
| For vehicles with Partially electric seat adjustment |
S4UAA=Yes |
|||||||||
| 01 | Wiring set seat left | 1 | 03/2007 | 61129131758 | $44.33 | Shop at ECS Tuning | ||||
| 01 | Wiring set seat right | 1 | 03/2007 | 61129131766 | $44.33 | Shop at ECS Tuning | ||||
| on cable set, seat | ||||||||||
| 02 | Cover cap, socket housing | 2 | 61136954588 | $1.57 | Shop at ECS Tuning | |||||
| On main wiring harness X275B, X279B, X10215B, X10214B |
||||||||||
| 02 | Socket housing | 4 POL + 15 POL. | 2 | 61136925556 | $1.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Jack MQS | 0.2-0.35 MM²/SN | X | 61131383776 | $0.28 | Shop at ECS Tuning | ||||
| -- | Jack MQS | 0,5-0.75 MM²/SN | X | 61131393724 | $0.28 | Shop at ECS Tuning | ||||
| -- | Cover cap, socket housing | 2 | 61136954588 | $1.57 | Shop at ECS Tuning | |||||
| -- | Socket contact ELO-Power 5,2x0,63 | 1,5-2,5 MM² SN | X | 61138364842 | $0.50 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 5,2x0,63 | 2,4- 4,0 MM? | X | 61138364844 | $0.50 | Shop at ECS Tuning | ||||
| For vehicles with Sports seat or Lumbar support, driver and passenger or Adjustment, seat-backrest width |
S481A=Yes S488A=Yes S490A=Yes |
|||||||||
| 03 | Adapter lead lordosis/LBV, left | 1 | 03/2007 | 61129132293 | $15.12 | Shop at ECS Tuning | ||||
| 03 | Adapter lead lordosis/LBV, right | 1 | 03/2007 | 61129132294 | $15.12 | Shop at ECS Tuning | ||||
| For vehicles with Seat adjustment, electric, with memory |
S459A=Yes |
|||||||||
| 04 | Adapter lead, seat backrest adjustment | 2 | 03/2007 | 61129131730 | $13.17 | Shop at ECS Tuning | ||||
| 06 | Adapter wire easy entry | 2 | 61129180401 | $16.07 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjustment, electric, with memory |
S459A=Yes |
|||||||||
| 06 | Adapter wire easy entry | 2 | 09/2008 | 61129180401 | $16.07 | Shop at ECS Tuning | ||||
