Wiring set seat for BMW 3 Series E46 318i (2001)

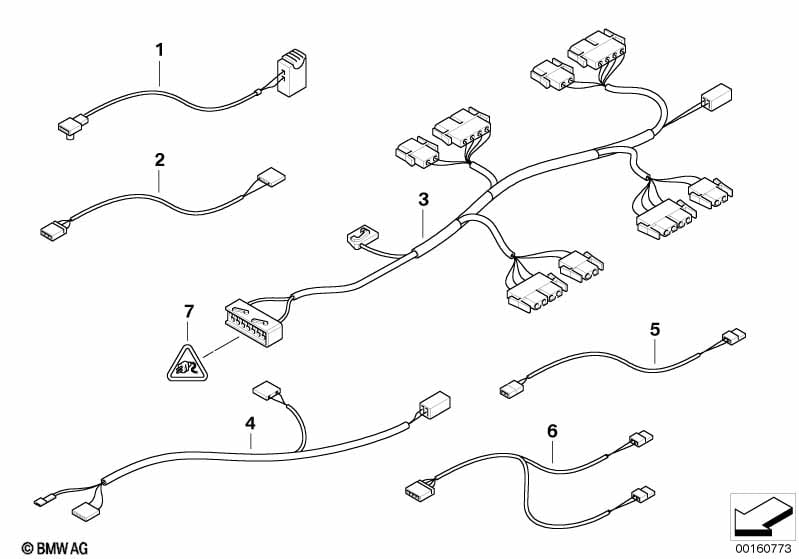

This Wiring set seat technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable, seatbelt tensioner/seat connector | 2 | 09/1998 | 52108255704 | $13.91 | Shop at ECS Tuning | ||||
| 02 | Wiring set, seat occupancy identificat. | 2 | 52108240500 | $19.41 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Seat adjustment, electric, with memory |
S459A=No |
|||||||||
| 03 | Wiring co-drivers side | 1 | 03/2003 | 52108226434 | $42.24 | +core | Shop at ECS Tuning | |||
| For vehicles with Seat adjustment, electric, with memory |
S459A=Yes |
|||||||||
| 03 | Wiring drivers side | 1 | 03/2003 | 52108226430 | $74.19 | Shop at ECS Tuning | ||||
| 03 | Wiring co-drivers side | 1 | 03/2003 | 52108226434 | $42.24 | +core | Shop at ECS Tuning | |||
| 04 | Wiring set f left seat adjustm./lordosis | 1 | 52108226401 | $37.44 | Shop at ECS Tuning | |||||
| 04 | Wiring set f right seat adjust./lordosis | 1 | 52108226402 | $37.44 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Electr. front seat adjustment or Seat adjustment, electric, with memory |
S458A=Yes S459A=Yes |
|||||||||
| 04 | Wiring set f left seat adjustm./lordosis | 1 | 52108226403 | $37.44 | ENDED | Shop at ECS Tuning | ||||
| 04 | Wiring set f right seat adjust./lordosis | 1 | 52108226404 | $37.44 | +core | Shop at ECS Tuning | ||||
| On main wiring harness | ||||||||||
| 07 | Socket housing, yellow | 24 POL. | 2 | 61138373310 | $1.12 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Jack MQS | 0.2-0.35 MM²/SN | X | 61131383776 | $0.28 | Shop at ECS Tuning | ||||
| -- | Jack MQS | 0,5-0.75 MM²/SN | X | 61131393724 | $0.28 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,5-1,0 MM² | X | 61138364832 | $0.35 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 1,5-2,5 MM² SN | X | 61138364834 | $0.35 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 5,2x0,63 | 1,5-2,5 MM² SN | X | 61138364842 | $0.50 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 5,2x0,63 | 2,4- 4,0 MM? | X | 61138364844 | $0.50 | Shop at ECS Tuning | ||||
| -- | Covering cap | 24 POL. | 2 | 61138369719 | $1.08 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,35-0,5 MM² SN | X | 61138377162 | $0.35 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
