Rear light for BMW 4 Series F32 420iX (2017)

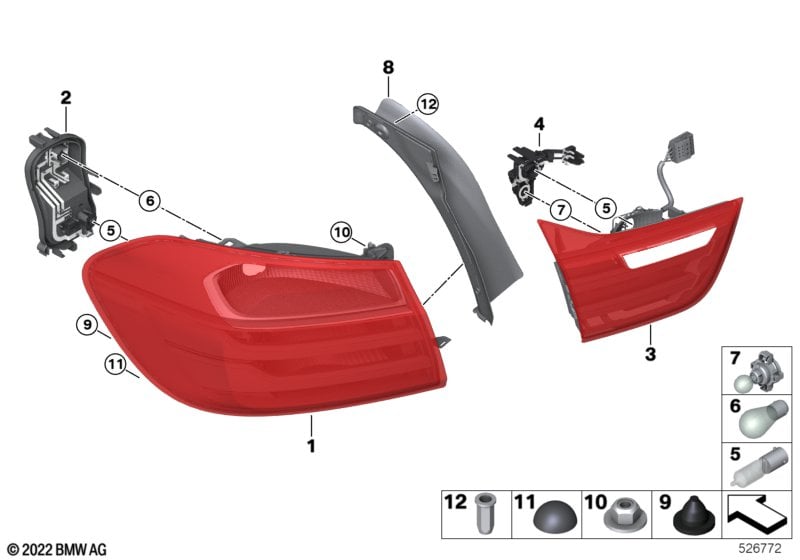

This Rear light technical drawing provides a detailed breakdown of the assembly for the 4 Series F32 420iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear light in the side panel, left | 1 | 63217296097 | Shop at ECS Tuning | ||||||
| Observe PuMA measure 55712456-02 | ||||||||||
| 01 | Rear light in the side panel, right | 1 | 63217296098 | Shop at ECS Tuning | ||||||
| Observe PuMA measure 55712456-02 | ||||||||||
| 02 | Bulb holder, rear light side panel, left | 1 | 63217366065 | Shop at ECS Tuning | ||||||
| 02 | Bulb holder, rear light side panel,right | 1 | 63217366066 | Shop at ECS Tuning | ||||||
| 03 | Rear light in trunk lid, left | 1 | 63217296101 | Shop at ECS Tuning | ||||||
| 03 | Rear light in trunk lid, right | 1 | 63217296102 | Shop at ECS Tuning | ||||||
| 04 | Bulb holder,rear light in trunk lid,left | 1 | 63217366069 | Shop at ECS Tuning | ||||||
| 04 | Bulb holder,rear light in trunk lid,rght | 1 | 63217366070 | Shop at ECS Tuning | ||||||
| 05 | Longlife bulb | 12V 21W H21W | 2 | 63217160788 | $11.70 | Shop at ECS Tuning | ||||
| 06 | Longlife bulb | P21W/12V/21W | 2 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 07 | Bulb | 12V PW16W | 2 | 63117359243 | Shop at ECS Tuning | |||||
| 08 | Gutter strip, left | 1 | 51497453341 | Shop at ECS Tuning | ||||||
| 08 | Gutter strip, right | 1 | 51497453342 | Shop at ECS Tuning | ||||||
| 09 | Snap-lock coupling | 4 | 07147306640 | Shop at ECS Tuning | ||||||
| 10 | Self-locking hex nut | M6 | 8 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 11 | Rubber buffer | 4 | 54347166771 | $0.44 | Shop at ECS Tuning | |||||
| 12 | Blind rivet nut, flat headed | M6 | 2 | 51248226003 | $2.13 | Shop at ECS Tuning | ||||
